501-6N59
501-6N59

501-6N59

UGC PRE6001332
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.03 CAD - $15.03 CAD
$15.03 CAD
$15.03 CAD - $15.03 CAD
$15.03 CAD

Vendu en lots de : 12

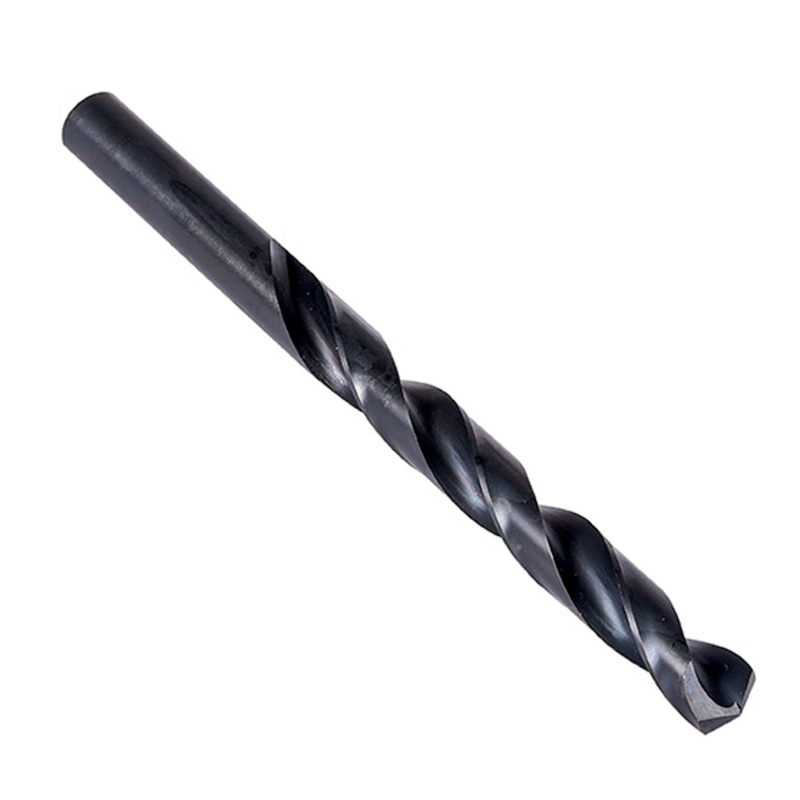

Foret de rallonge aéronautique à queue cylindrique, diamètre 0,0410" (N59), longueur totale de 6" et longueur de goujure de 11/16", conforme à la norme NAS907 Type B, avec pointe fendue renforcée à 135°, en acier rapide HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)501-6N59
GradeTrempé à la vapeur
Product Number6001332
Product Family501-6

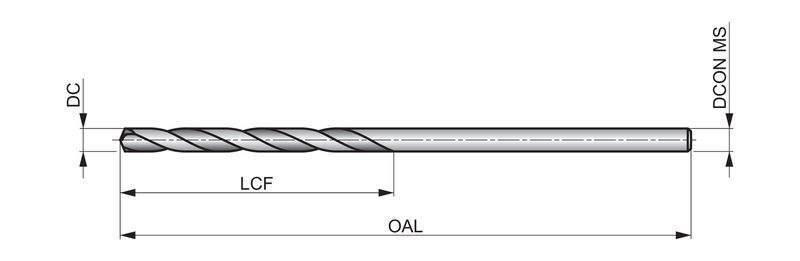

Dimensions
Cutting Diameter — in (DC)0.041"
Cutting Diameter — mm (DC)1.04 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)0.6875"
Flute Length — mm (LCF)17.46 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.041"
Connection Dia. — mm (DCON)1.04 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58159
File Type Download
501-6N59 — 3D Model STP Download
501-6N59 — Line Drawing PDF Download
