500-1223/64
500-1223/64
500-1223/64

500-1223/64

UGC PRE6001356
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.33 CAD - $39.33 CAD
$39.33 CAD
$39.33 CAD - $39.33 CAD
$39.33 CAD

Vendu en lots de : 3

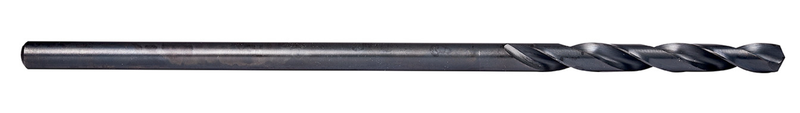

Foret long d'aviation à queue cylindrique, diamètre 0,3594" (23/64) avec une longueur totale de 12" et une longueur de coupe de 3,1/2" selon la norme NAS907 Type B avec une pointe fendue robuste à 135°, en acier rapide HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500-1223/64
GradeTrempé à la vapeur
Product Number6001356
Product Family500-12
Dimensions
Cutting Diameter — in (DC)0.3594"
Cutting Diameter — mm (DC)9.13 mm
Cutting Diameter — Fractional23/64
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)3.5"
Flute Length — mm (LCF)88.9 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3594"
Connection Dia. — mm (DCON)9.13 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number59023
File Type Download
500-1223/64 — 3D Model STP Download
500-1223/64 — Line Drawing PDF Download
