500-123/8
500-123/8
500-123/8

500-123/8

UGC PRE6001388
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.94 CAD - $41.94 CAD
$41.94 CAD
$41.94 CAD - $41.94 CAD
$41.94 CAD

Vendu en lots de : 3

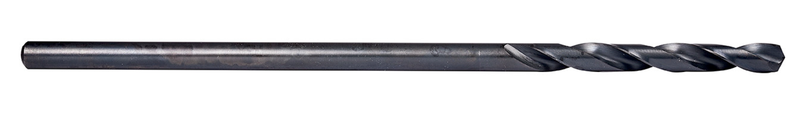

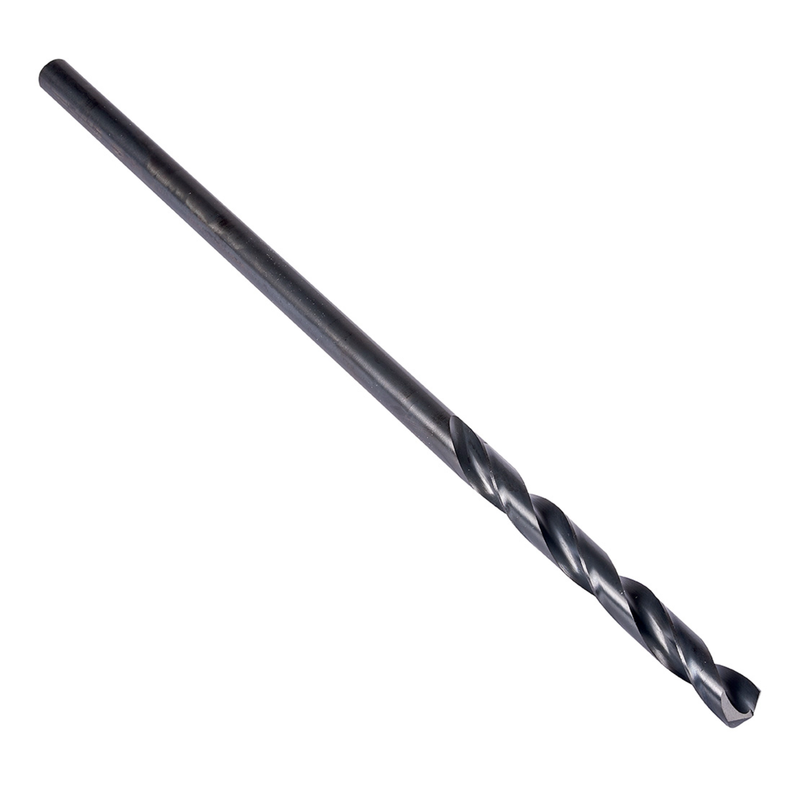

Foret long d'aviation à queue droite, diamètre 0,3750" (3/8) avec une longueur totale de 12" et une longueur de coupe de 3.5/8" selon la norme NAS907 Type B avec pointe fendue robuste à 135°, en acier rapide HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500-123/8
GradeTrempé à la vapeur
Product Number6001388
Product Family500-12

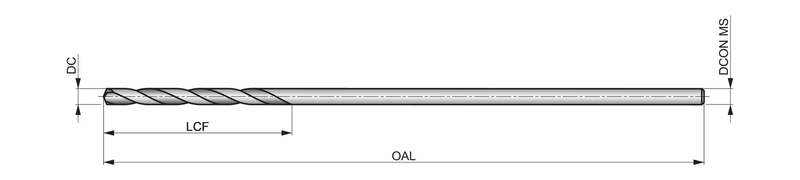

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)3.625"
Flute Length — mm (LCF)92.08 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number59024
File Type Download
500-123/8 — 3D Model STP Download
500-123/8 — Line Drawing PDF Download
