5ATL3.7
5ATL3.7

5ATL3.7

UGC PRE6001504
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.49 CAD - $12.49 CAD
$12.49 CAD
$12.49 CAD - $12.49 CAD
$12.49 CAD

Vendu en lots de : 12

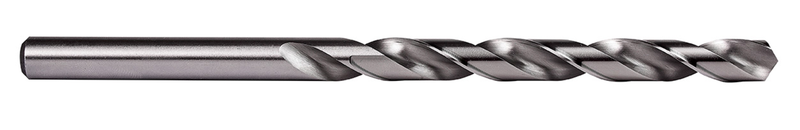

Foret série longue, à queue cylindrique, diamètre 3,7 mm avec une longueur totale de 112 mm et une longueur de coupe de 73 mm selon la norme DIN 340 avec un angle de pointe de 118°, en HSS poli brillant pour un perçage jusqu'à 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)5ATL3.7
GradeLumineux
Product Number6001504
Product Family5ATL

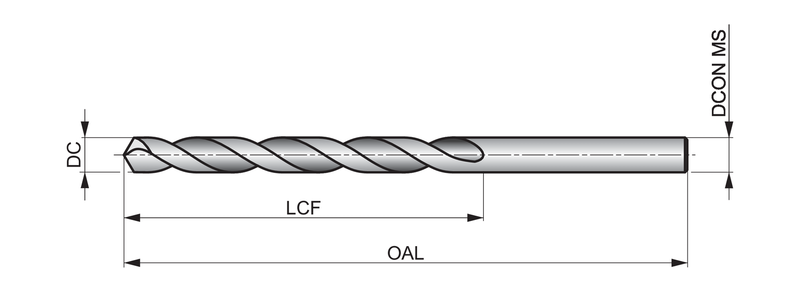

Dimensions
Cutting Diameter — in (DC)0.1457"
Cutting Diameter — mm (DC)3.7 mm
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Flute Length — in (LCF)2.874"
Flute Length — mm (LCF)73.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.1457"
Connection Dia. — mm (DCON)3.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 340
Reference Numbers
EDP Number56370
File Type Download
5ATL3.7 — 3D Model STP Download
5ATL3.7 — Line Drawing PDF Download
