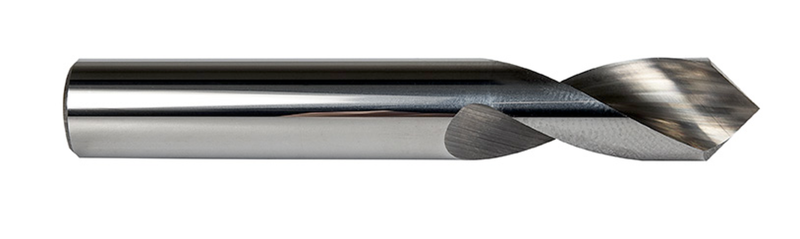

DS903/16
DS903/16

DS903/16

UGC PRE6002228
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.14 CAD - $29.14 CAD
$29.14 CAD
$29.14 CAD - $29.14 CAD
$29.14 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DS903/16
GradeLumineux
Product Number6002228
Product FamilyDS-90

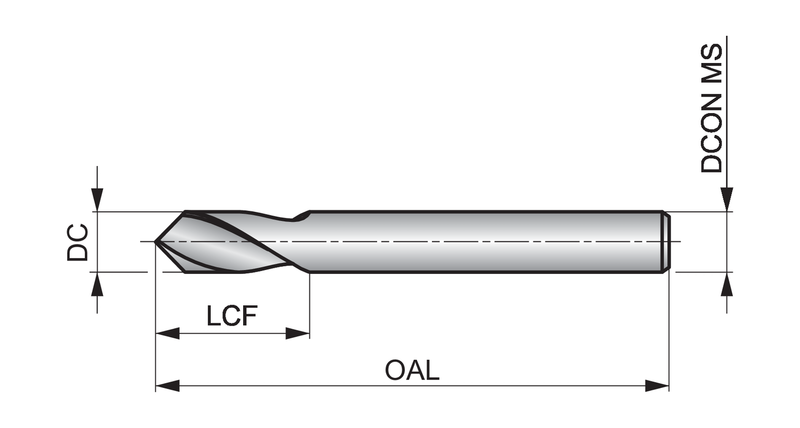

Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Flute Length — in (LCF)0.75"
Flute Length — mm (LCF)19.05 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number3334
File Type Download
DS903/16 — 3D Model STP Download
DS903/16 — Line Drawing PDF Download
