DS901/2
DS901/2

DS901/2

UGC PRE6002389
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.86 CAD - $78.86 CAD
$78.86 CAD
$78.86 CAD - $78.86 CAD
$78.86 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DS901/2
GradeLumineux
Product Number6002389
Product FamilyDS-90

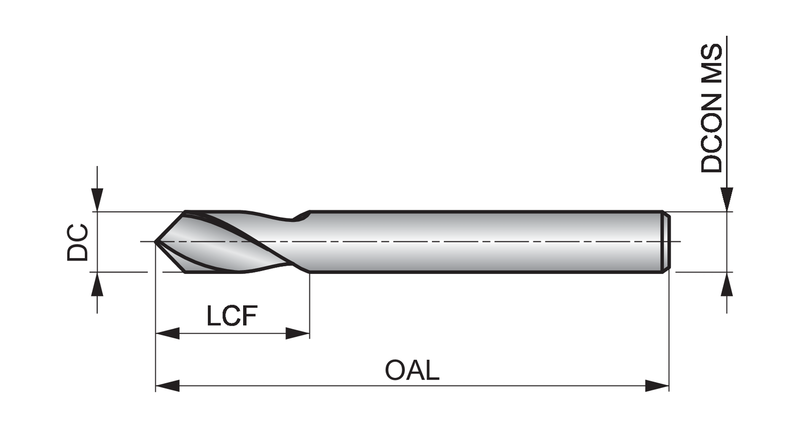

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Flute Length — in (LCF)1.0"
Flute Length — mm (LCF)25.4 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number3342
File Type Download
DS901/2 — 3D Model STP Download
DS901/2 — Line Drawing PDF Download
