D33M9.5
D33M9.5

D33M9.5

UGC PRE6002423
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$84.86 CAD - $84.86 CAD
$84.86 CAD
$84.86 CAD - $84.86 CAD
$84.86 CAD

Vendu en lots de : 1

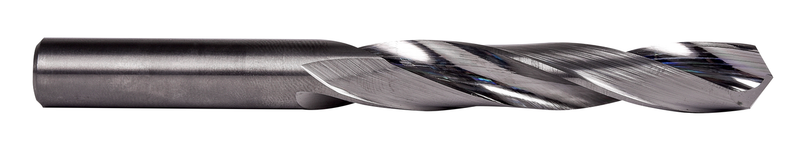

Foret hélice normale à queue cylindrique, diamètre de 9,5 mm, longueur totale de 108 mm et longueur utile de 70 mm, selon la norme de précision, avec pointe à 4 facettes à 118°, en carbure monobloc, finition brillante, pour perçage de 3xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D33M9.5
GradeLumineux
Product Number6002423
Product FamilyD33M
Dimensions
Cutting Diameter — in (DC)0.374"
Cutting Diameter — mm (DC)9.5 mm
Overall Length — in (OAL)4.252"
Overall Length — mm (OAL)108.0 mm
Flute Length — in (LCF)2.7559"
Flute Length — mm (LCF)70.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.374"
Connection Dia. — mm (DCON)9.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number3488
File Type Download
D33M9.5 — 3D Model STP Download
D33M9.5 — Line Drawing PDF Download
