D33WN10
D33WN10

D33WN10

UGC PRE6002429
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.34 CAD - $33.34 CAD
$33.34 CAD
$33.34 CAD - $33.34 CAD
$33.34 CAD

Vendu en lots de : 1

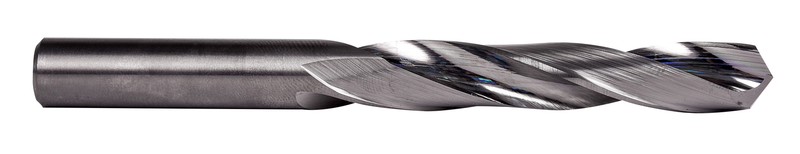

Foret de longueur jobber à queue cylindrique, diamètre 0,1935" (N10) avec une longueur totale de 2.3/4" et une longueur de goujure de 1.5/8" selon la norme de Précision avec une pointe à 4 facettes de 118°, en carbure monobloc avec une finition brillante pour le perçage de 3xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D33WN10
GradeLumineux
Product Number6002429
Product FamilyD33W
Dimensions
Cutting Diameter — in (DC)0.1935"
Cutting Diameter — mm (DC)4.91 mm
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.1935"
Connection Dia. — mm (DCON)4.91 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number3569
File Type Download
D33WN10 — 3D Model STP Download
D33WN10 — Line Drawing PDF Download
