D33F3/16
D33F3/16

D33F3/16

UGC PRE6002729
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.89 CAD - $28.89 CAD
$28.89 CAD
$28.89 CAD - $28.89 CAD
$28.89 CAD

Vendu en lots de : 1

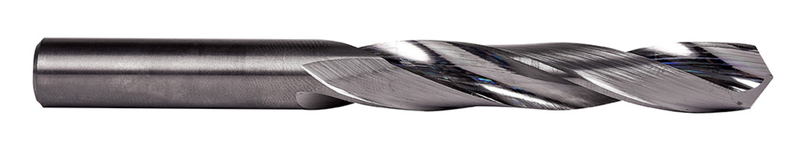

Foret hélicoïdal série courte, queue cylindrique, diamètre 0,1875" (3/16) avec une longueur totale de 2,3/4" et une longueur de coupe de 1,5/8" selon la norme de précision, affûtage en croix 118°, carbure monobloc finition brillante pour perçage sans débourrage jusqu'à 3xD dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D33F3/16
GradeLumineux
Product Number6002729
Product FamilyD33F
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number3566
File Type Download
D33F3/16 — 3D Model STP Download
D33F3/16 — Line Drawing PDF Download
