D33F5/16
D33F5/16

D33F5/16

UGC PRE6002734
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.29 CAD - $55.29 CAD
$55.29 CAD
$55.29 CAD - $55.29 CAD
$55.29 CAD

Vendu en lots de : 1

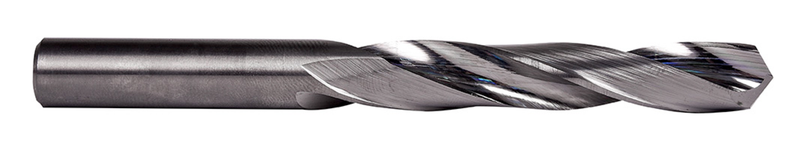

Foret hélice normale, queue cylindrique, diamètre 0,3125" (5/16) avec une longueur totale de 3,3/4" et une longueur de goujure de 2,3/8" selon la norme de précision, pointe à 4 facettes à 118°, carbure monobloc, finition brillante, pour perçage 3xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D33F5/16
GradeLumineux
Product Number6002734
Product FamilyD33F
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.375"
Flute Length — mm (LCF)60.33 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number3599
File Type Download
D33F5/16 — 3D Model STP Download
D33F5/16 — Line Drawing PDF Download
