D33F5/32
D33F5/32

D33F5/32

UGC PRE6002735
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.00 CAD - $24.00 CAD
$24.00 CAD
$24.00 CAD - $24.00 CAD
$24.00 CAD

Vendu en lots de : 1

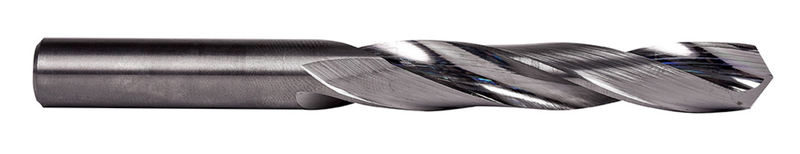

Foret hélice normale queue cylindrique de diamètre 0,1563" (5/32) avec une longueur totale de 2.1/2" et une longueur de coupe de 1.3/8" selon le standard de précision avec une pointe 4 facettes à 118°, en carbure monobloc avec finition brillante pour perçage à 3xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D33F5/32
GradeLumineux
Product Number6002735
Product FamilyD33F
Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Flute Length — in (LCF)1.375"
Flute Length — mm (LCF)34.93 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.1563"
Connection Dia. — mm (DCON)3.97 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number3554
File Type Download
D33F5/32 — 3D Model STP Download
D33F5/32 — Line Drawing PDF Download
