R9501.7/32
R9501.7/32
R9501.7/32

R9501.7/32

UGC DOR6104481
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$307.71 CAD - $307.71 CAD
$307.71 CAD
$307.71 CAD - $307.71 CAD
$307.71 CAD

Vendu en lots de : 1

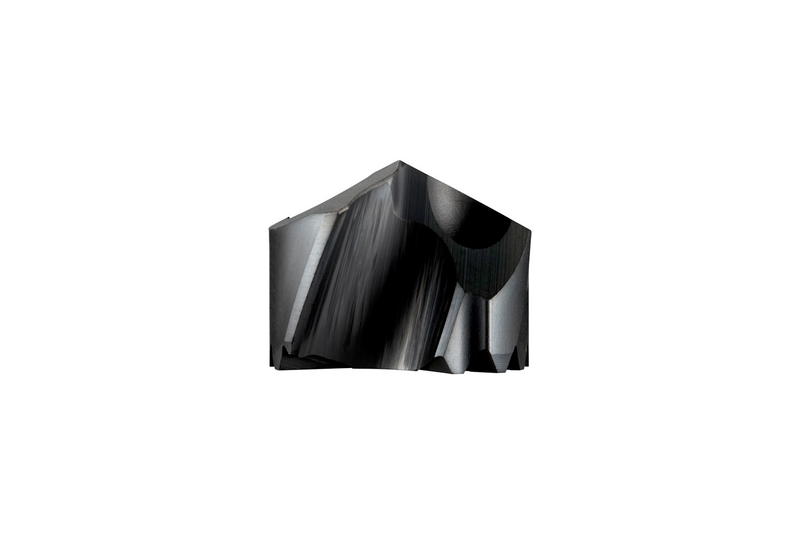

Tête de forage remplaçable haute performance HYDRA P, diamètre 1.2188" (1.7/32) selon la norme DORMER avec une pointe fendue à 4 facettes modifiée à 140°, carbure monobloc avec revêtement Ti-phon pour le perçage de l'acier en combinaison avec un corps HYDRA de taille 32mm, H853 pour jusqu'à 3xD, H855 pour jusqu'à 5xD ou H858 pour jusqu'à 8xD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R9501.7/32
GradeTi-phon
Product Number6104481
Product FamilyR950

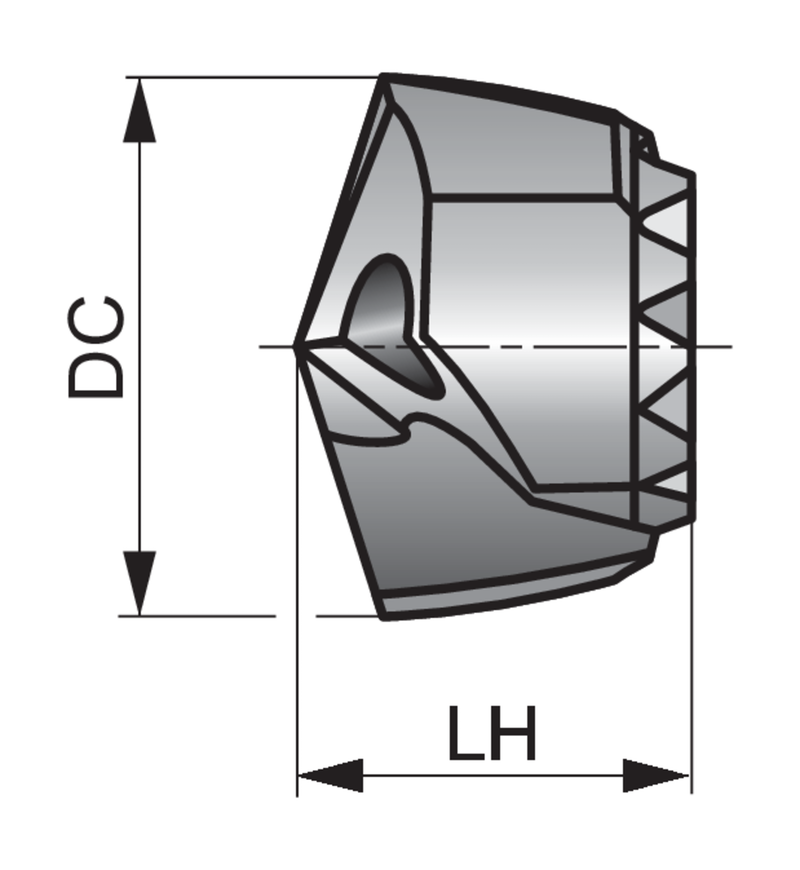

Dimensions
Cutting Diameter — in (DC)1.2188"
Cutting Diameter — mm (DC)30.96 mm
Cutting Diameter — Fractional1,7/32
Drill Point Angle (SIG)140°
Tool Information
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46104481
EAN7320760652060
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
R9501.7/32 — 3D Model STP Download
R9501.7/32 — 2D Model DXF Download
R9501.7/32 — Line Drawing PDF Download
