UGC DOR6111410
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,067.00 CAD - $1,067.00 CAD
$1,067.00 CAD
$1,067.00 CAD - $1,067.00 CAD
$1,067.00 CAD

Vendu en lots de : 1

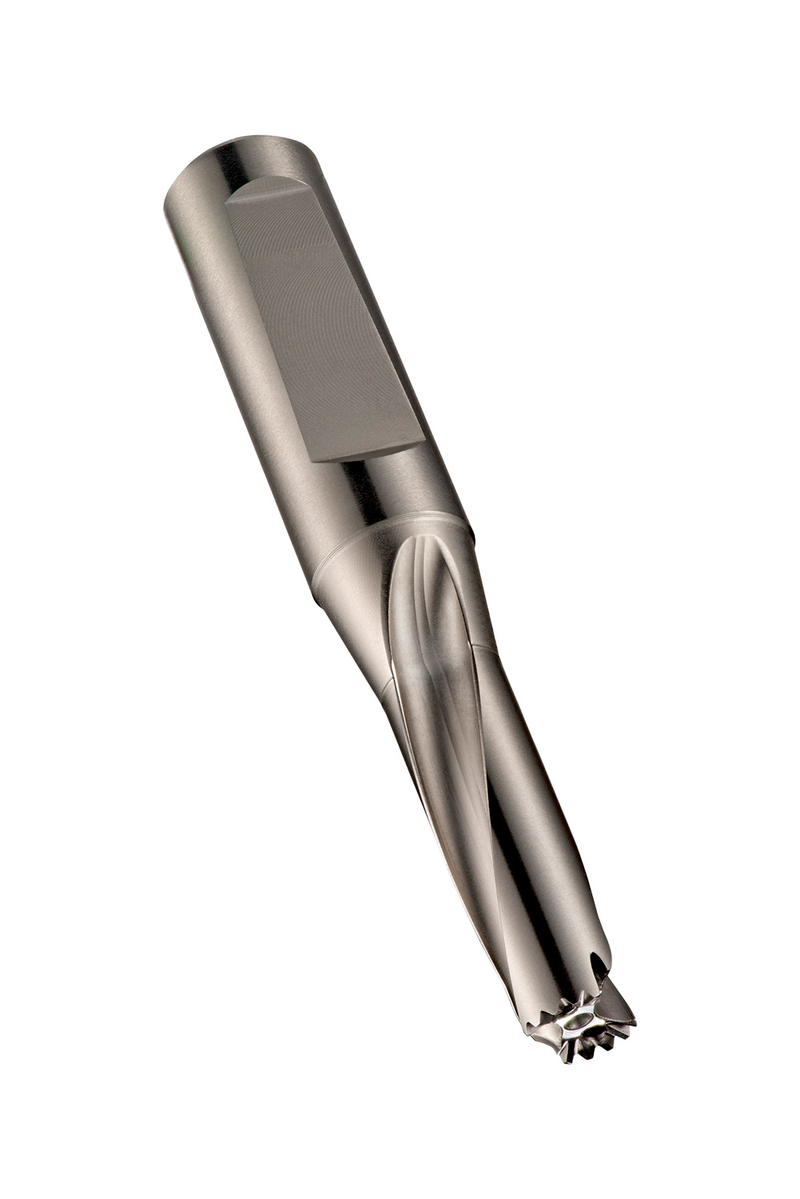

Corps de foret à tête interchangeable HYDRA avec queue weldon DIN 6535HB NC, taille 39.5mm avec une longueur totale de 231.5mm et une longueur de goujure de 136.5mm selon la norme DORMER pour un perçage 3xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 38.1 jusqu'à 39.5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85339.5
GradePlaqué nickel
Product Number6111410
Product FamilyH853
Dimensions
Overall Length — in (OAL)9.1142"
Overall Length — mm (OAL)231.5 mm
Length × Diameter Ratio3
Usable Length — in (LU)5.374"
Usable Length — mm (LU)136.5 mm
Connection Dia. — in (DCON)1.5748"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46111410
EAN7320760652497
File Type Download
H85339.5 — 3D Model STP Download
H85339.5 — 2D Model DXF Download
H85339.5 — Line Drawing PDF Download
