H85532.0
H85532.0
H85532.0
H85532.0

H85532.0

UGC DOR6111413
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,000.00 CAD - $1,000.00 CAD
$1,000.00 CAD
$1,000.00 CAD - $1,000.00 CAD
$1,000.00 CAD

Vendu en lots de : 1

Corps de foret à têtes interchangeables HYDRA avec queue de sifflet DIN 6535HE NC, taille 32,0 mm avec une longueur totale de 261,5 mm et une longueur de cannelure de 176,5 mm selon la norme DORMER pour le perçage 5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 30,96 à 32 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85532.0
GradePlaqué nickel
Product Number6111413
Product FamilyH855

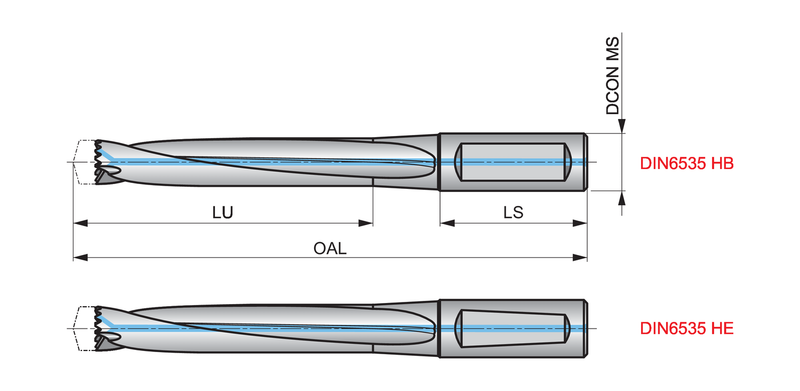

Dimensions
Overall Length — in (OAL)10.2953"
Overall Length — mm (OAL)261.5 mm
Length × Diameter Ratio5
Usable Length — in (LU)6.9488"
Usable Length — mm (LU)176.5 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46111413
EAN7320760652527
File Type Download
H85532.0 — 3D Model STP Download
H85532.0 — 2D Model DXF Download
H85532.0 — Line Drawing PDF Download
