H85832.0
H85832.0
H85832.0
H85832.0

H85832.0

UGC DOR6111421
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,235.00 CAD - $1,235.00 CAD
$1,235.00 CAD
$1,235.00 CAD - $1,235.00 CAD
$1,235.00 CAD

Vendu en lots de : 1

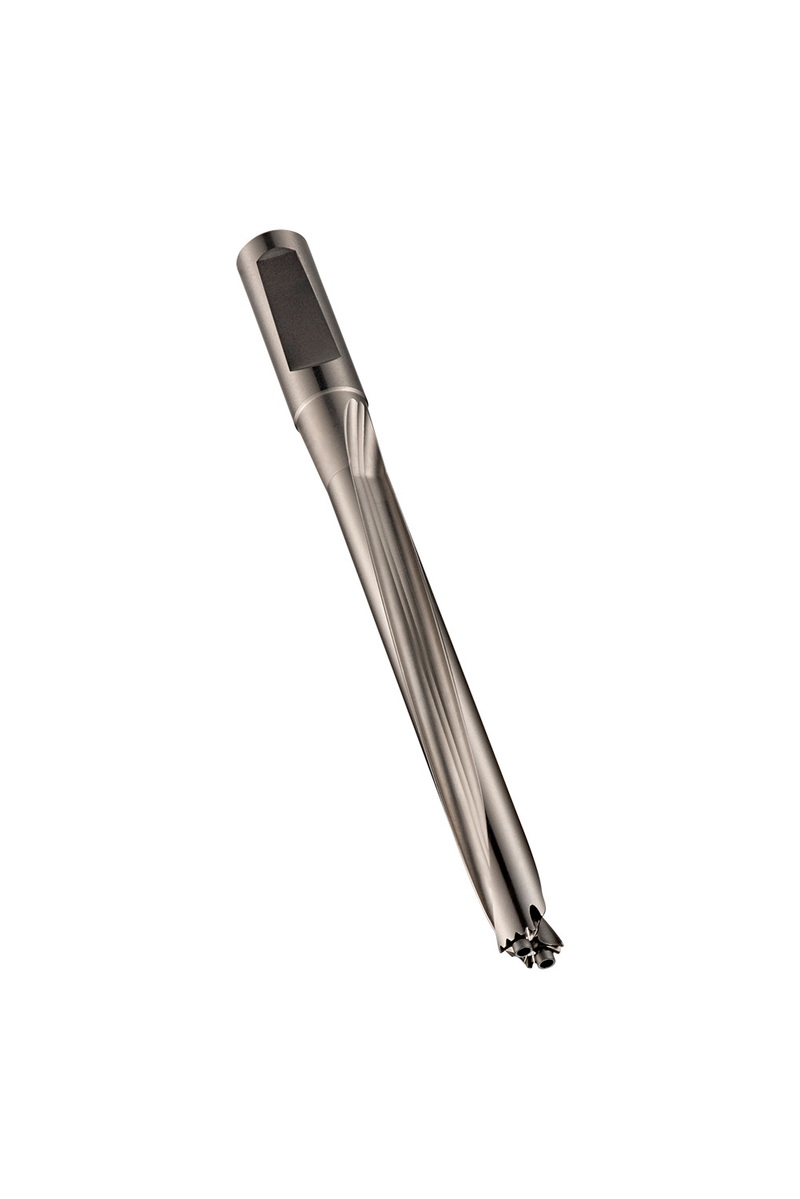

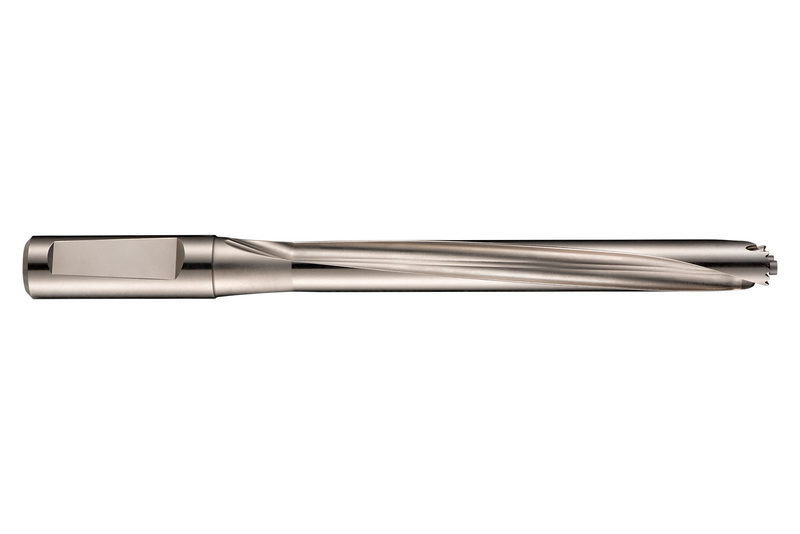

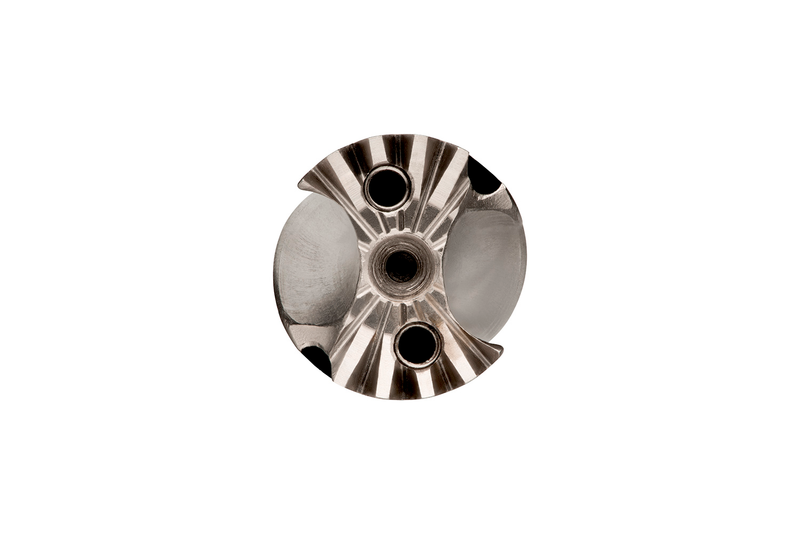

Corps de foret à têtes interchangeables HYDRA avec queue DIN 6535HE à encoche pour sifflet NC, taille 32,0 mm avec une longueur totale de 356,5 mm et une longueur de cannelure de 271,5 mm selon la norme DORMER pour un perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 30,96 jusqu'à 32 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85832.0
GradePlaqué nickel
Product Number6111421
Product FamilyH858

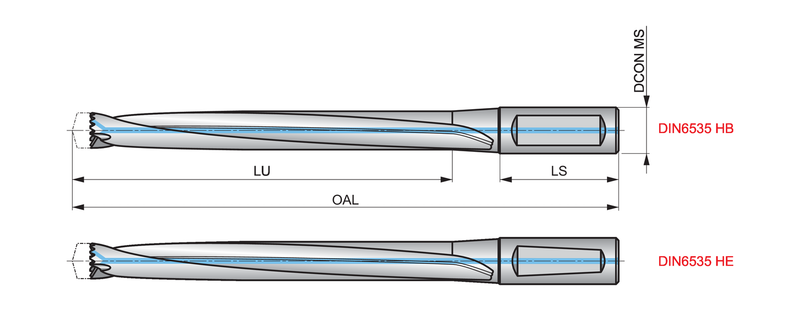

Dimensions
Overall Length — in (OAL)14.0354"
Overall Length — mm (OAL)356.5 mm
Length × Diameter Ratio8
Usable Length — in (LU)10.689"
Usable Length — mm (LU)271.5 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46111421
EAN7320760652602
File Type Download
H85832.0 — 3D Model STP Download
H85832.0 — 2D Model DXF Download
H85832.0 — Line Drawing PDF Download
