H85833.5
H85833.5
H85833.5
H85833.5

H85833.5

UGC DOR6111422
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,235.00 CAD - $1,235.00 CAD
$1,235.00 CAD
$1,235.00 CAD - $1,235.00 CAD
$1,235.00 CAD

Vendu en lots de : 1

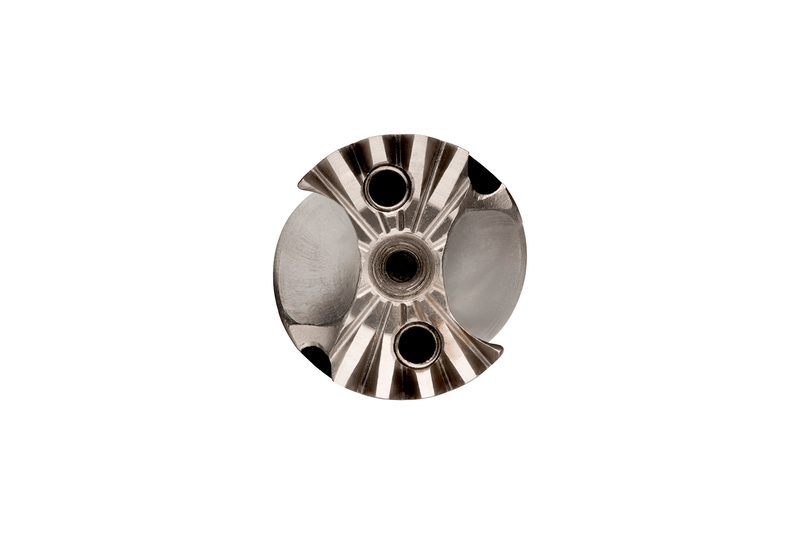

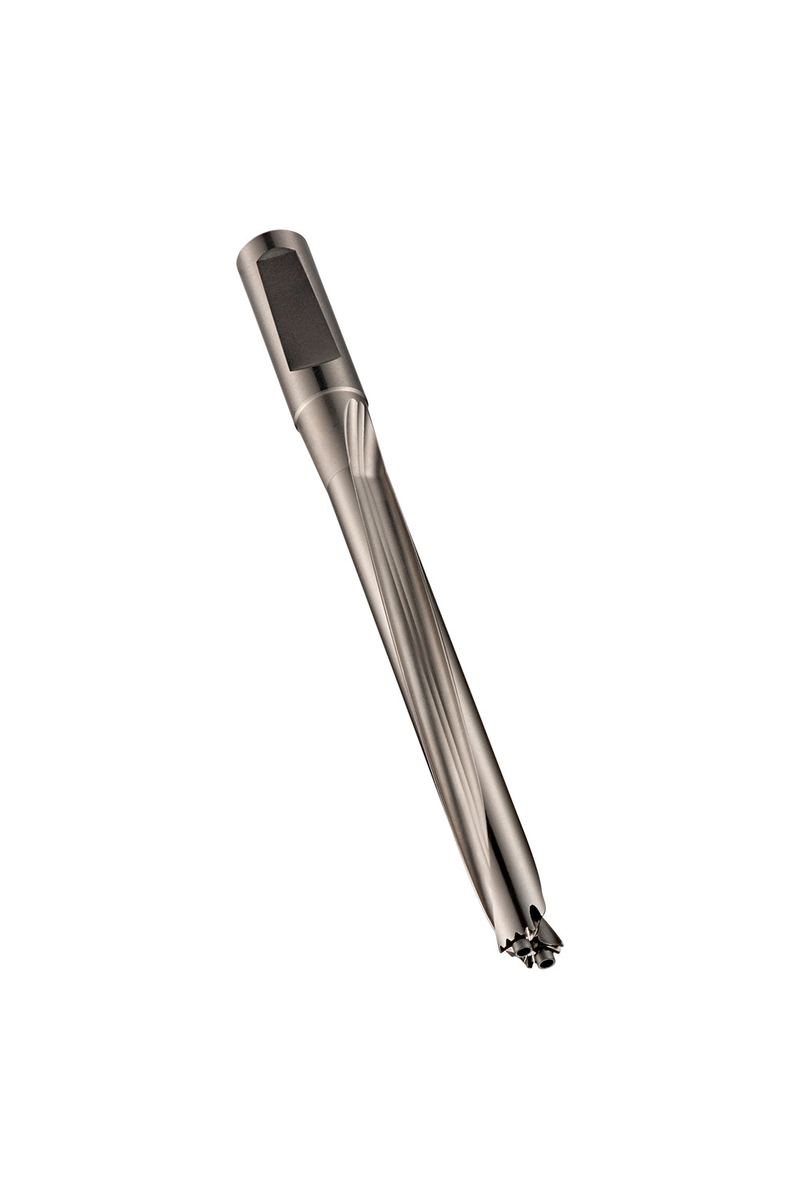

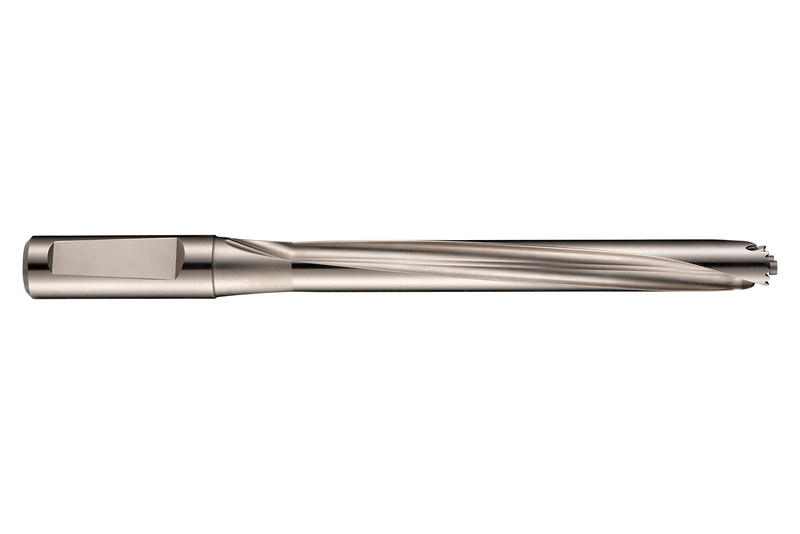

Corps de foret à têtes interchangeables HYDRA avec queue weldon NC DIN 6535HB, taille 33,5 mm avec une longueur totale de 371,5 mm et une longueur de goujure de 286,5 mm selon la norme DORMER pour le perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 32,5 à 33,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85833.5
GradePlaqué nickel
Product Number6111422
Product FamilyH858

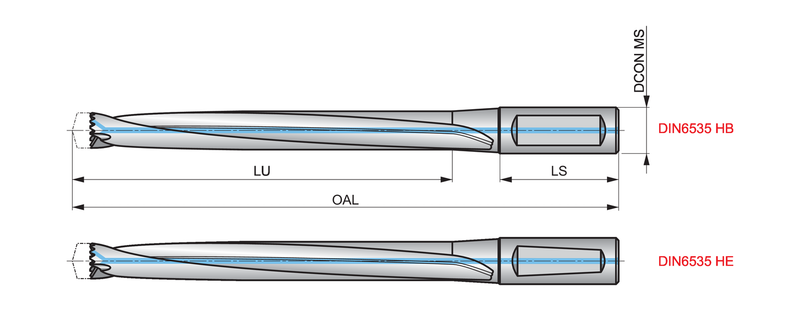

Dimensions
Overall Length — in (OAL)14.626"
Overall Length — mm (OAL)371.5 mm
Length × Diameter Ratio8
Usable Length — in (LU)11.2795"
Usable Length — mm (LU)286.5 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46111422
EAN7320760652619
File Type Download
H85833.5 — 3D Model STP Download
H85833.5 — 2D Model DXF Download
H85833.5 — Line Drawing PDF Download
