H85835.0
H85835.0
H85835.0
H85835.0

H85835.0

UGC DOR6111423
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,350.00 CAD - $1,350.00 CAD
$1,350.00 CAD
$1,350.00 CAD - $1,350.00 CAD
$1,350.00 CAD

Vendu en lots de : 1

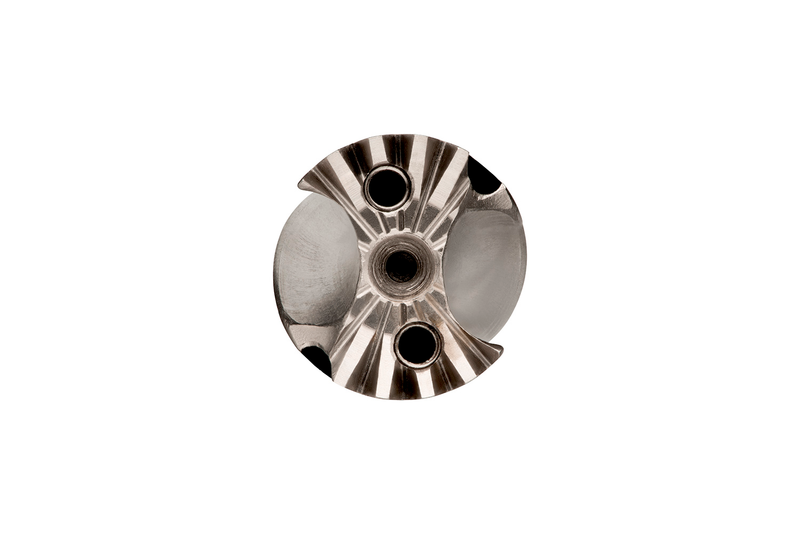

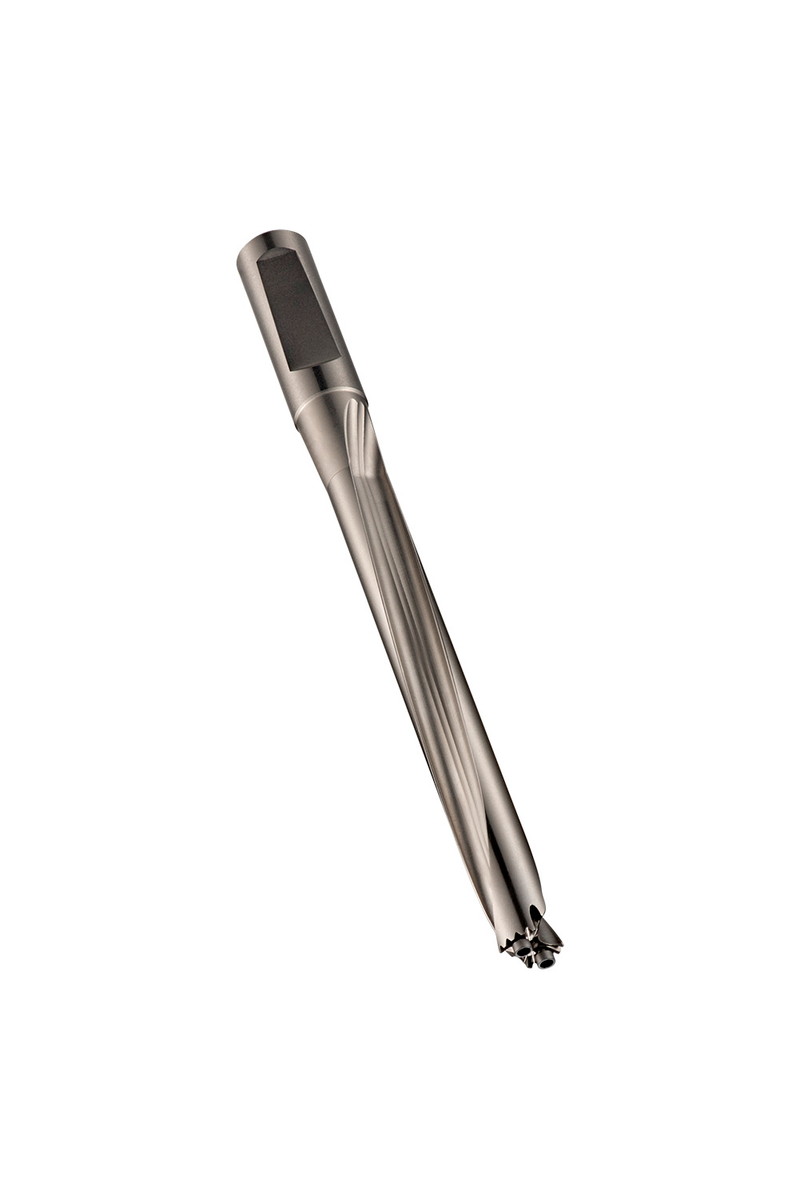

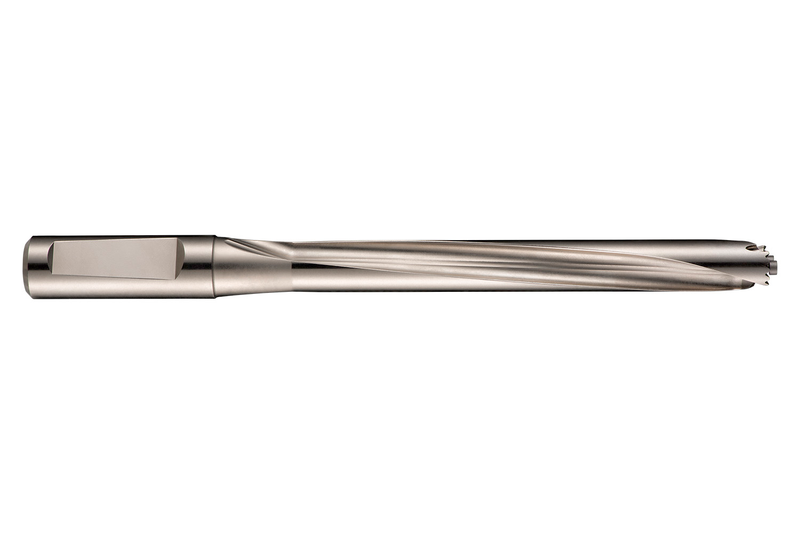

Corps de foret à tête interchangeable HYDRA avec queue weldon NC DIN 6535HB, taille 35,0 mm avec une longueur totale de 396,5 mm et une longueur de goujure de 301,5 mm selon la norme DORMER pour un perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 34 à 35 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85835.0
GradePlaqué nickel
Product Number6111423
Product FamilyH858

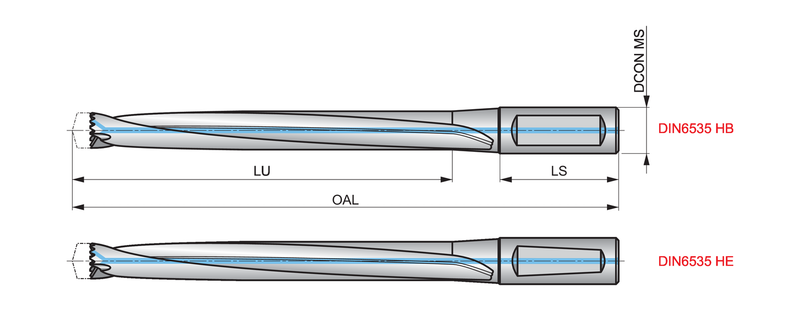

Dimensions
Overall Length — in (OAL)15.6102"
Overall Length — mm (OAL)396.5 mm
Length × Diameter Ratio8
Usable Length — in (LU)11.8701"
Usable Length — mm (LU)301.5 mm
Connection Dia. — in (DCON)1.5748"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46111423
EAN7320760652626
File Type Download
H85835.0 — 3D Model STP Download
H85835.0 — 2D Model DXF Download
H85835.0 — Line Drawing PDF Download
