UGC DOR6111425
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,570.00 CAD - $1,570.00 CAD
$1,570.00 CAD
$1,570.00 CAD - $1,570.00 CAD
$1,570.00 CAD

Vendu en lots de : 1

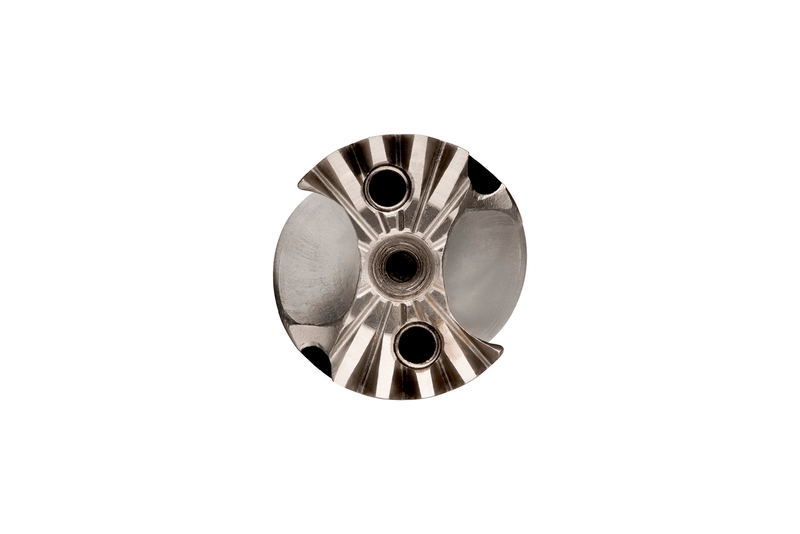

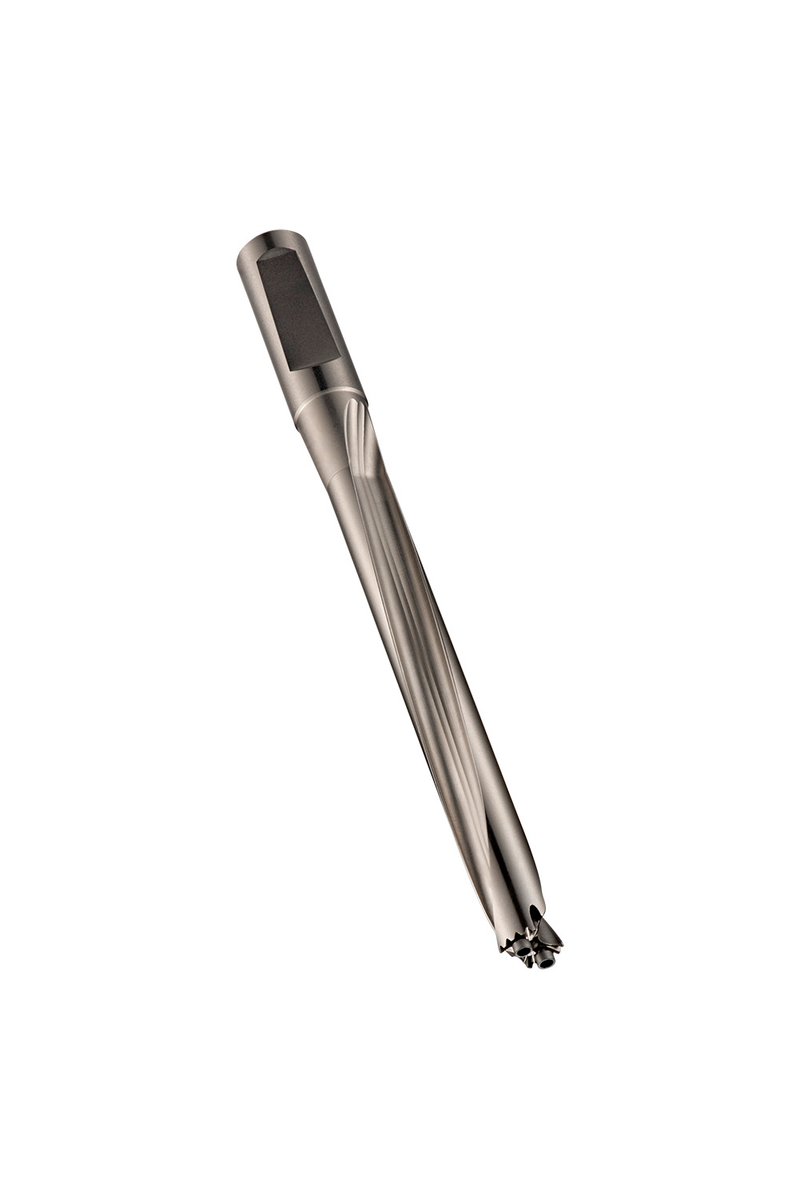

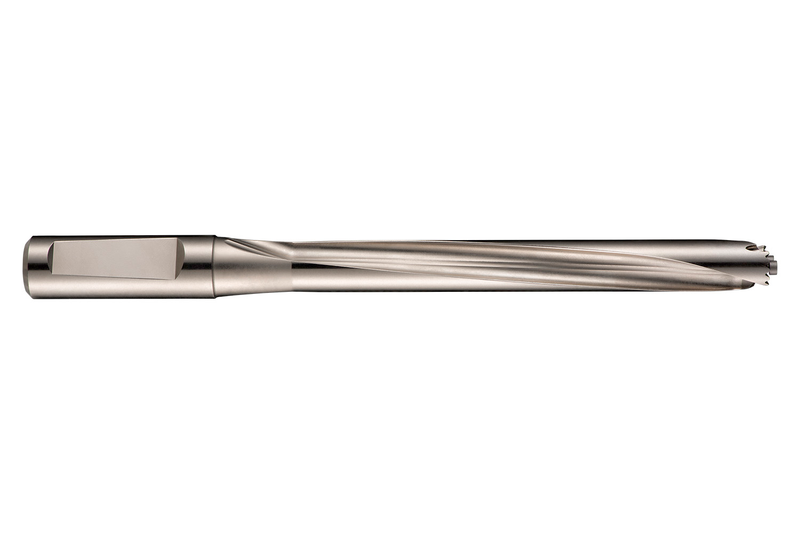

Corps de foret à tête interchangeable HYDRA avec queue weldon DIN 6535HB NC, taille 38,0 mm avec une longueur totale de 421,5 mm et une longueur de goujure de 326,5 mm selon la norme DORMER pour un perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 37 à 38 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85838.0
GradePlaqué nickel
Product Number6111425
Product FamilyH858

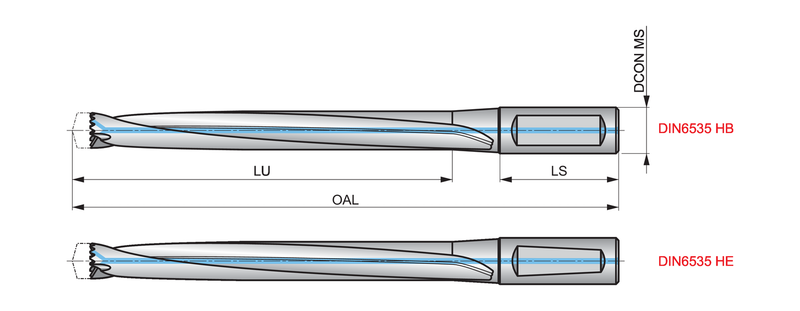

Dimensions
Overall Length — in (OAL)16.5945"
Overall Length — mm (OAL)421.5 mm
Length × Diameter Ratio8
Usable Length — in (LU)12.8543"
Usable Length — mm (LU)326.5 mm
Connection Dia. — in (DCON)1.5748"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46111425
EAN7320760652640
File Type Download
H85838.0 — 3D Model STP Download
H85838.0 — 2D Model DXF Download
H85838.0 — Line Drawing PDF Download
