UGC DOR6111426
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,570.00 CAD - $1,570.00 CAD
$1,570.00 CAD
$1,570.00 CAD - $1,570.00 CAD
$1,570.00 CAD

Vendu en lots de : 1

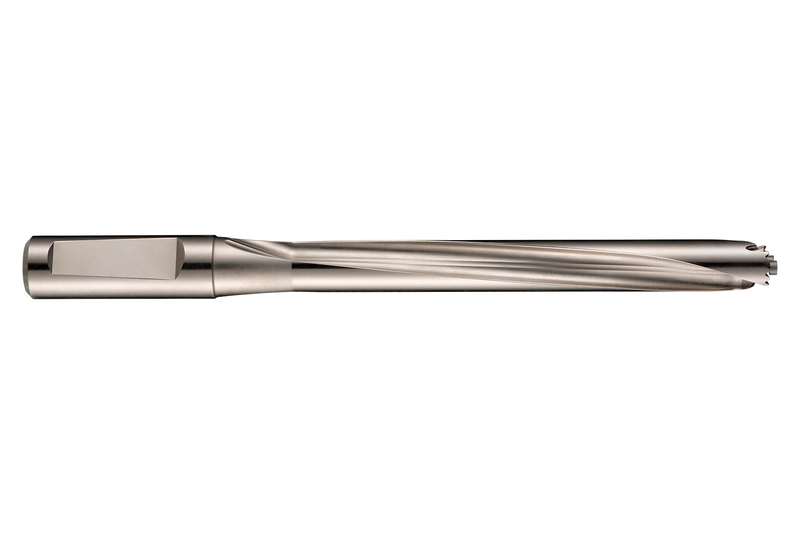

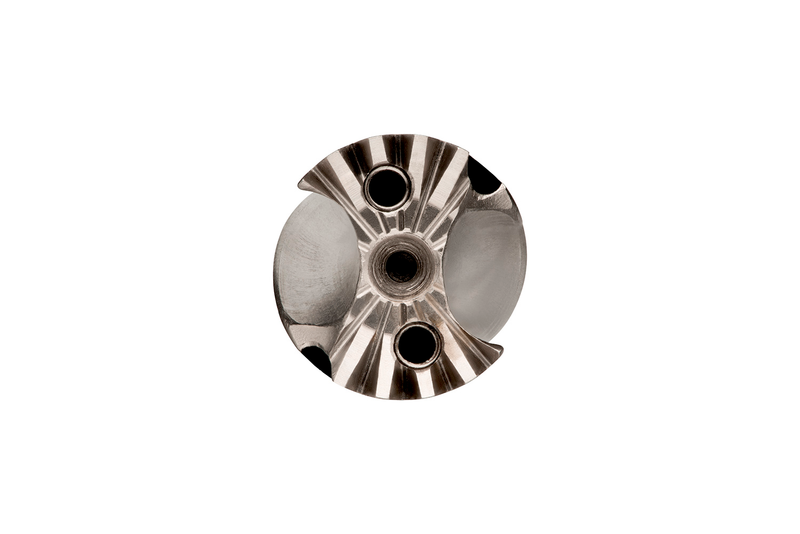

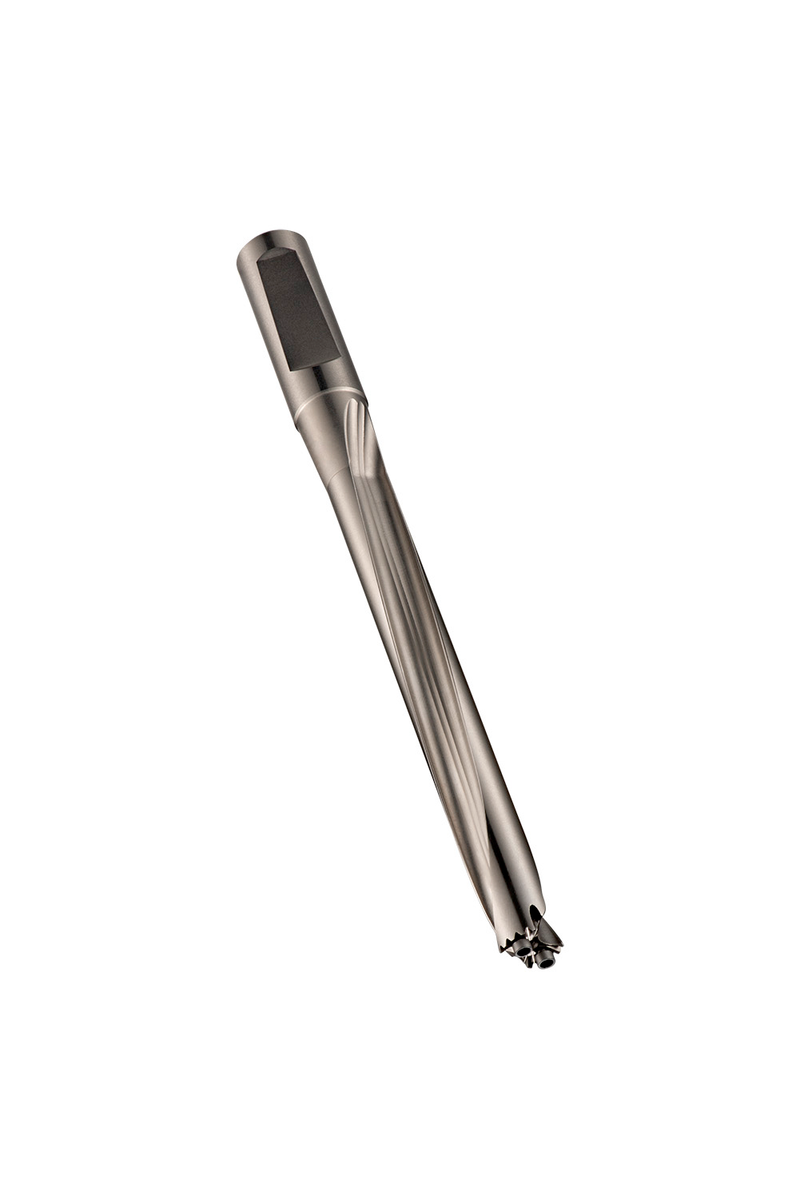

Corps de foret à têtes interchangeables HYDRA avec queue weldon DIN 6535HB NC, diamètre 39,5 mm avec une longueur totale de 431,5 mm et une longueur de goujure de 336,5 mm selon la norme DORMER pour un perçage en 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 38,1 à 39,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85839.5
GradePlaqué nickel
Product Number6111426
Product FamilyH858

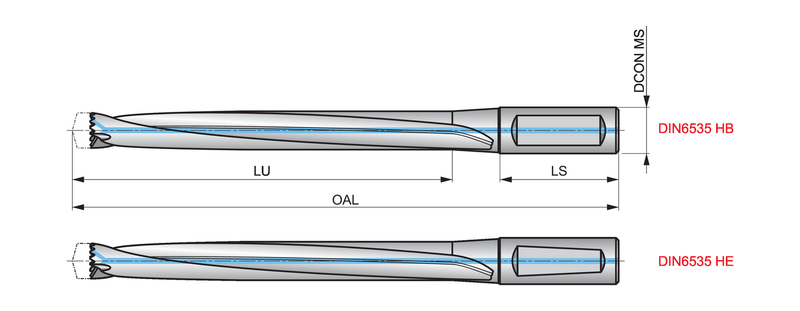

Dimensions
Overall Length — in (OAL)16.9882"
Overall Length — mm (OAL)431.5 mm
Length × Diameter Ratio8
Usable Length — in (LU)13.248"
Usable Length — mm (LU)336.5 mm
Connection Dia. — in (DCON)1.5748"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46111426
EAN7320760652657
File Type Download
H85839.5 — 3D Model STP Download
H85839.5 — 2D Model DXF Download
H85839.5 — Line Drawing PDF Download
