UGC DOR6111427
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,707.00 CAD - $1,707.00 CAD
$1,707.00 CAD
$1,707.00 CAD - $1,707.00 CAD
$1,707.00 CAD

Vendu en lots de : 1

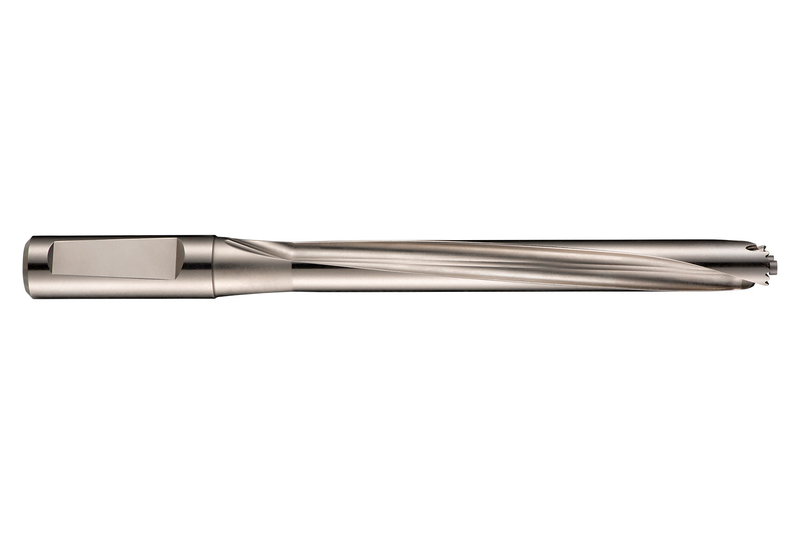

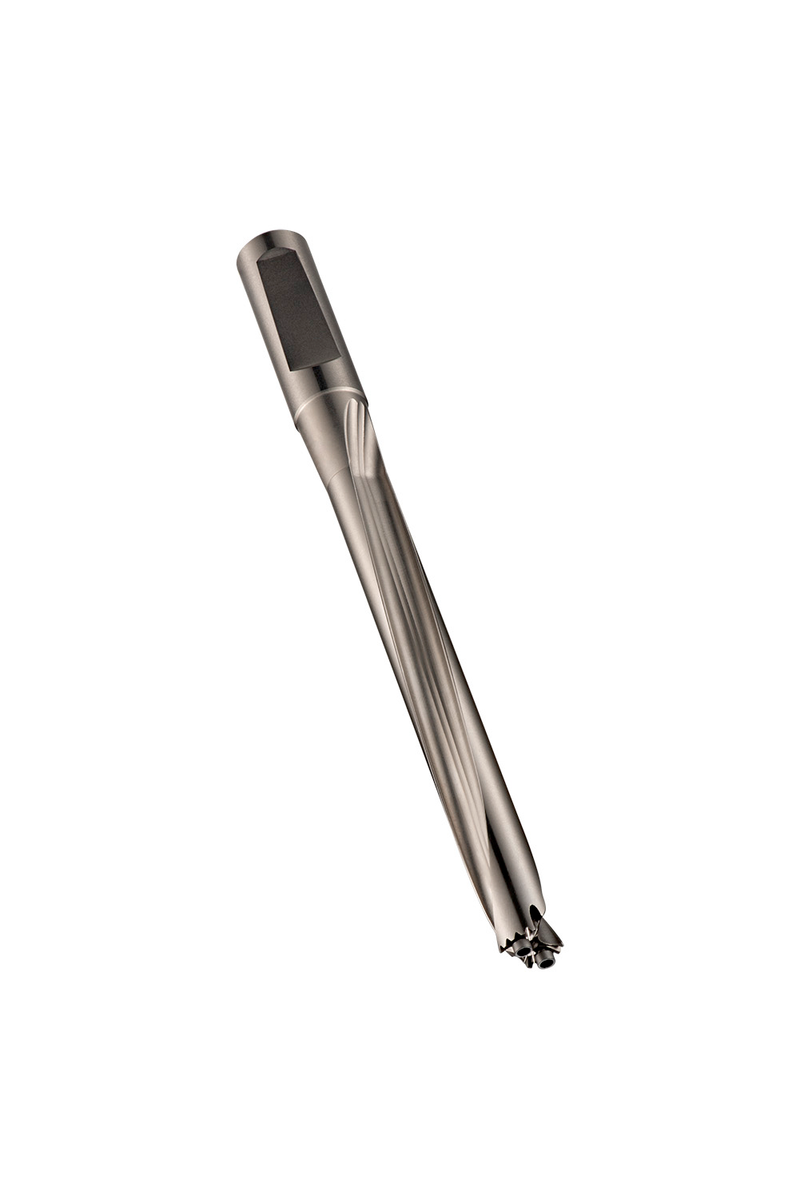

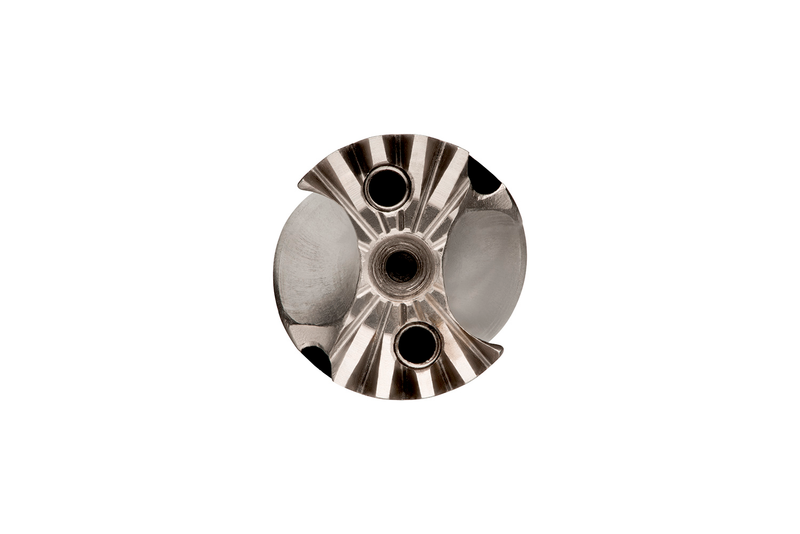

Corps de foret à têtes interchangeables HYDRA avec queue weldon NC DIN 6535HB, taille 41,0 mm avec une longueur totale de 451,5 mm et une longueur d'hélice de 351,5 mm selon la norme DORMER pour le perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 39,69 à 41 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85841.0
GradePlaqué nickel
Product Number6111427
Product FamilyH858

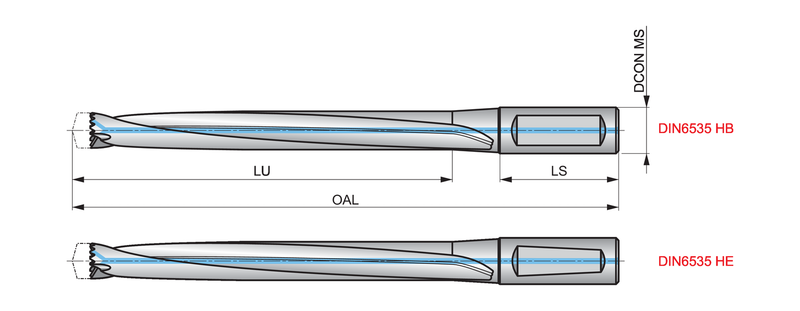

Dimensions
Overall Length — in (OAL)17.7756"
Overall Length — mm (OAL)451.5 mm
Length × Diameter Ratio8
Usable Length — in (LU)13.8386"
Usable Length — mm (LU)351.5 mm
Connection Dia. — in (DCON)1.5748"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46111427
EAN7320760652664
File Type Download
H85841.0 — 3D Model STP Download
H85841.0 — 2D Model DXF Download
H85841.0 — Line Drawing PDF Download
