H85842.5
H85842.5
H85842.5
H85842.5

H85842.5

UGC DOR6111428
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,707.00 CAD - $1,707.00 CAD
$1,707.00 CAD
$1,707.00 CAD - $1,707.00 CAD
$1,707.00 CAD

Vendu en lots de : 1

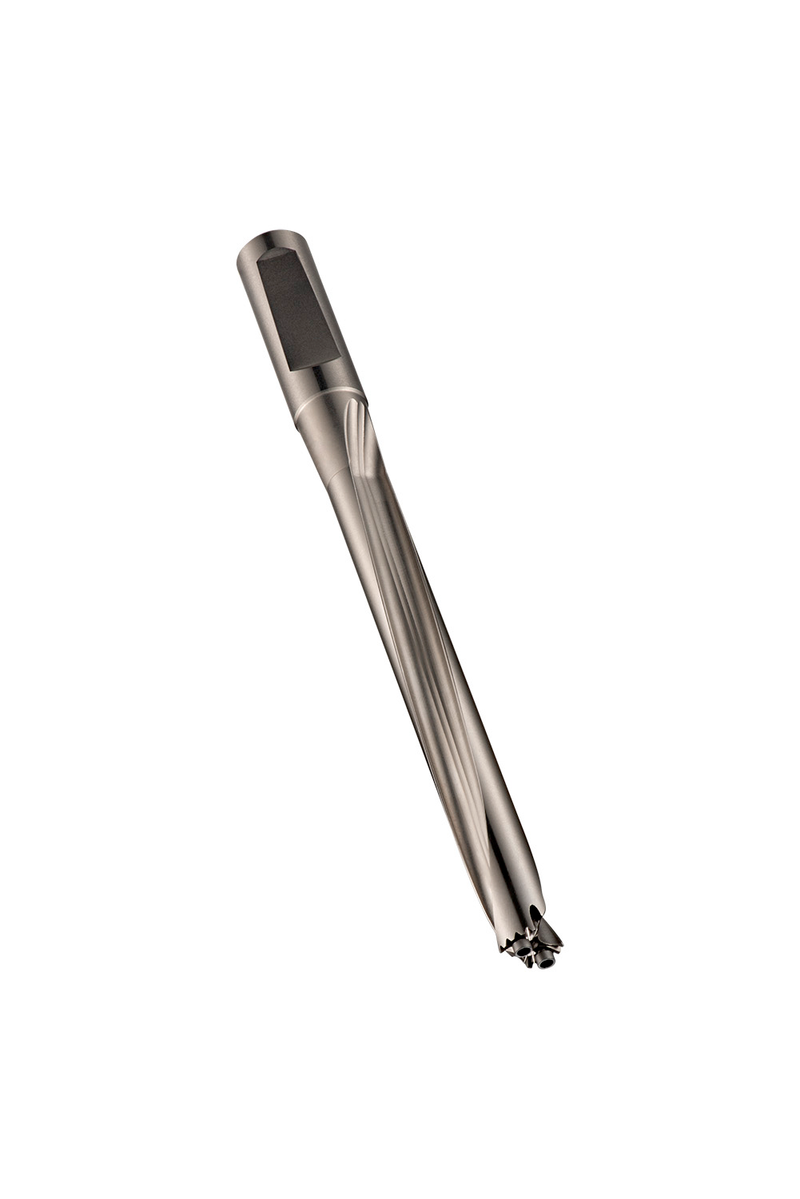

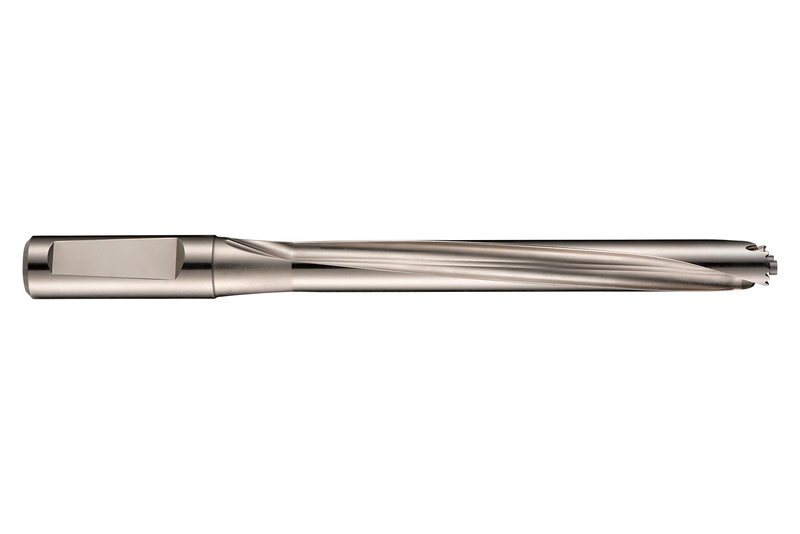

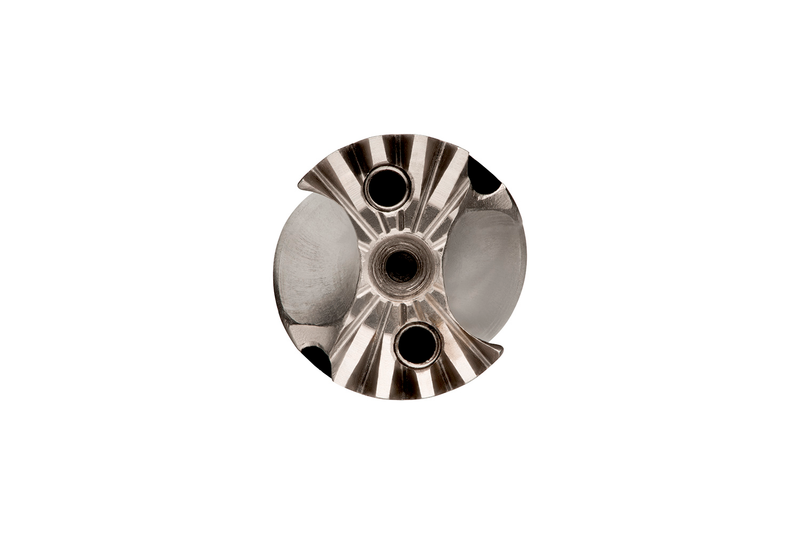

Corps de foret à têtes interchangeables HYDRA avec queue weldon NC DIN 6535HB, taille 42,5mm avec une longueur totale de 461,5mm et une longueur de goujure de 361,5mm selon la norme DORMER pour le perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 41,28 à 42mm

For more information about this product, click here

Identification
Ordering Code (ANSI)H85842.5
Product Name (ISO)H85842,5
GradePlaqué nickel
Product Number6111428
Product FamilyHuit-cent-cinquante-huit

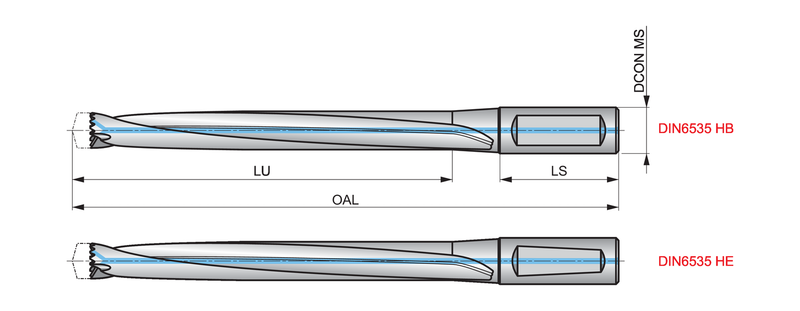

Dimensions
Overall Length — in (OAL)18.1693"
Overall Length — mm (OAL)461.5 mm
Length × Diameter Ratio8
Usable Length — in (LU)14.2323"
Usable Length — mm (LU)361.5 mm
Connection Dia. — in (DCON)1.5748"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46111428
EAN7320760652671
File Type Download
H85842.5 — 3D Model STP Download
H85842.5 — 2D Model DXF Download
H85842.5 — Line Drawing PDF Download
