EP00TINM5
EP00TINM5
EP00TINM5

EP00TINM5

UGC DOR6196705
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.33 CAD - $44.33 CAD
$44.33 CAD
$44.33 CAD - $44.33 CAD
$44.33 CAD

Vendu en lots de : 1

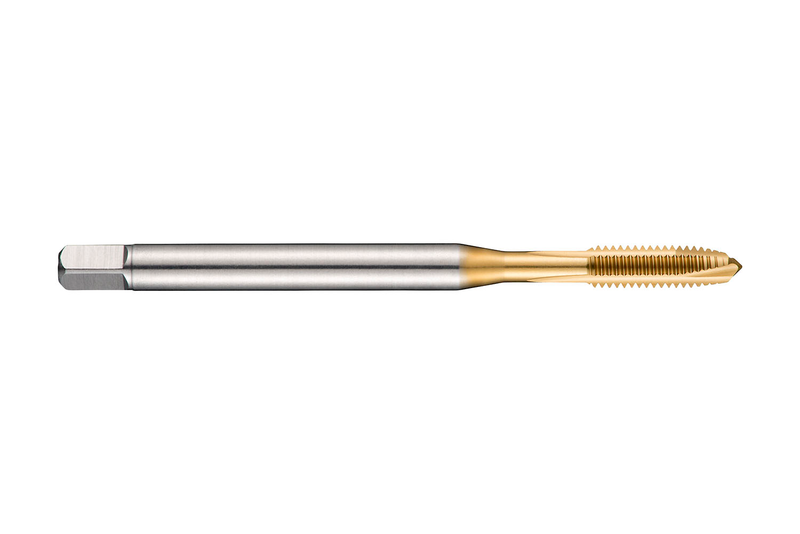

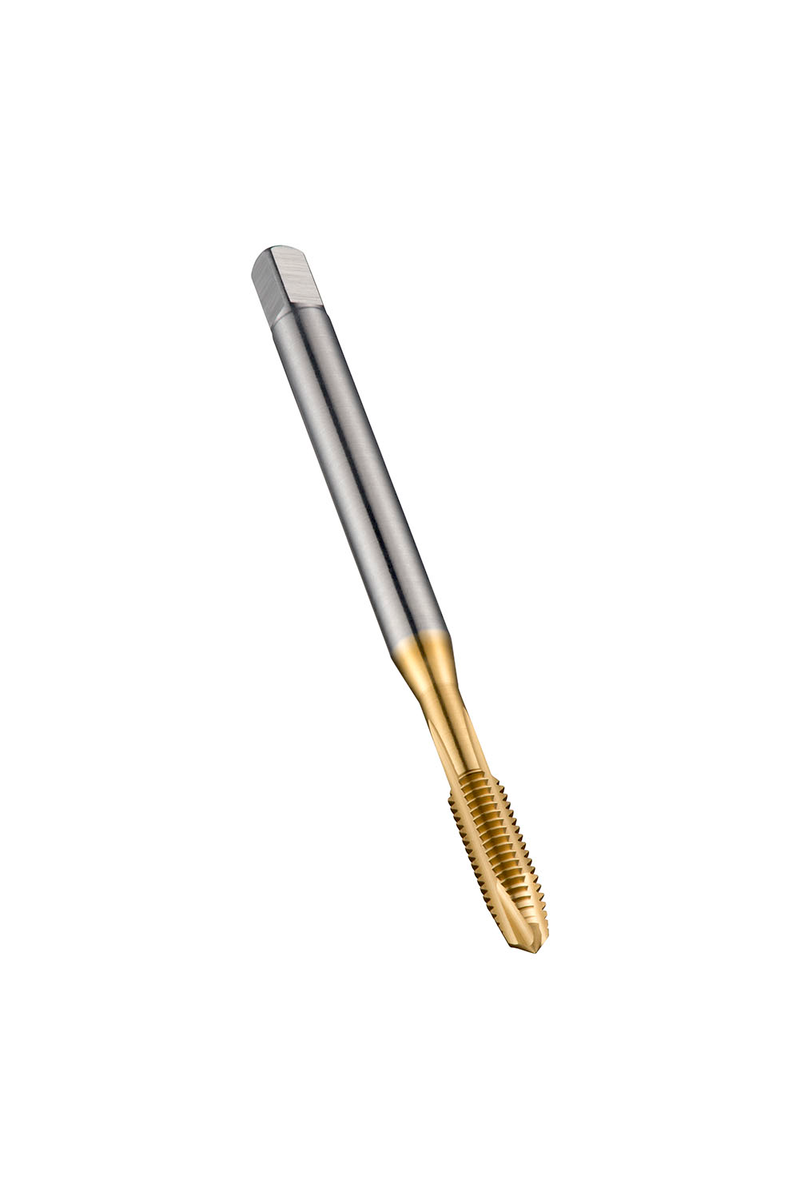

Taraud machine à pointe spirale et entrée de forme B à 3,5-5 filets pour filetage métrique ISO M5 au pas de 0,80 mm et tolérance 6H, dimensions conformes à la norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en acier rapide HSS-E fritté avec revêtement TiN pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers et aciers moulés, les aciers inoxydables ferritiques, martensitiques et austénitiques et les aluminiums corroyés ou moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP00TINM5
GradeTiN
Product Number6196705
Product FamilyEP00TIN
Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.9843"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46196705
EAN7320760662137
File Type Download
EP00TINM5 — Line Drawing PDF Download
