UGC DOR6196732
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.04 CAD - $52.04 CAD
$52.04 CAD
$52.04 CAD - $52.04 CAD
$52.04 CAD

Vendu en lots de : 1

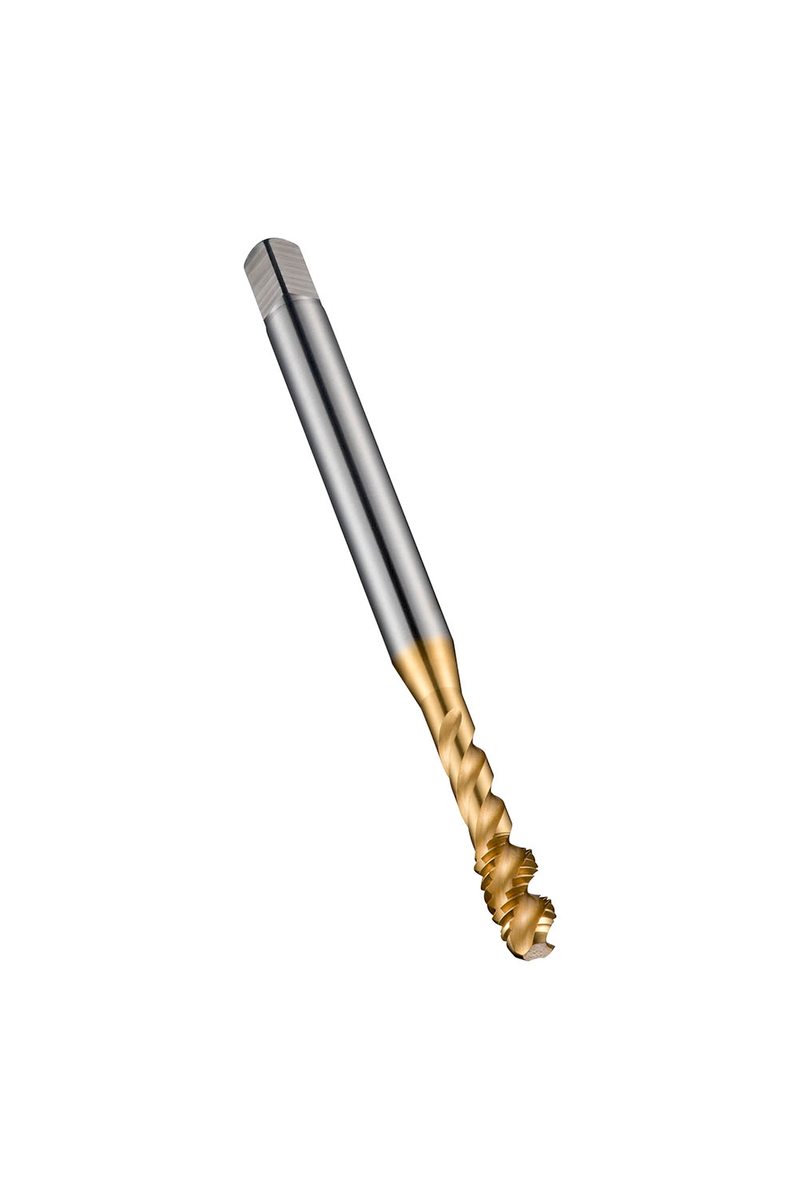

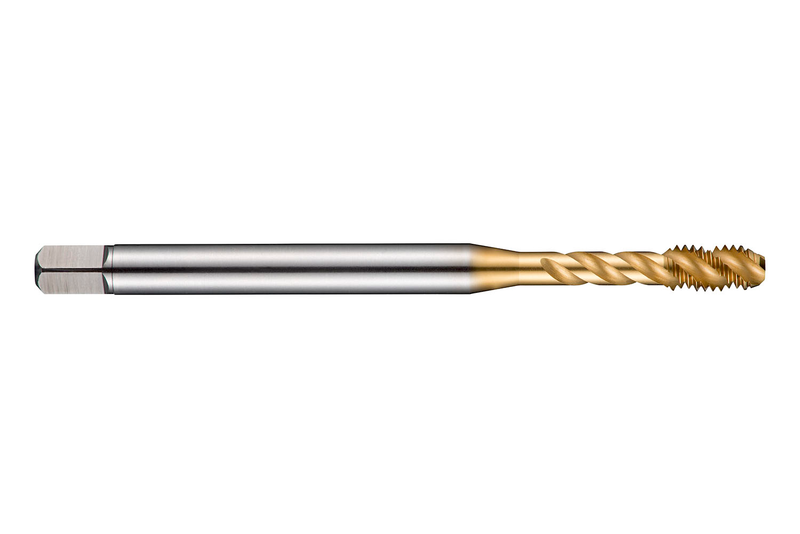

Taraud machine à goujures hélicoïdales et chanfrein forme C, de 2-3 filets, pour filetage ISO-métrique M8 au pas de 1,25 mm et de classe de tolérance 6H, dimensions conformes à la norme DIN 371, queue de 8,0 mm et carré d'entraînement de 6,2 mm, en HSS-E PM avec revêtement TiN et angle d'hélice de 45° pour taraudage de trous borgnes jusqu'à 2,5xD dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique et l'aluminium moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX00TINM8
GradeTiN
Product Number6196732
Product FamilyEX00TIN
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46196732
EAN7320760662403
