EX00TINM12
EX00TINM12
EX00TINM12

EX00TINM12

UGC DOR6196734
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$87.09 CAD - $87.09 CAD
$87.09 CAD
$87.09 CAD - $87.09 CAD
$87.09 CAD

Vendu en lots de : 1

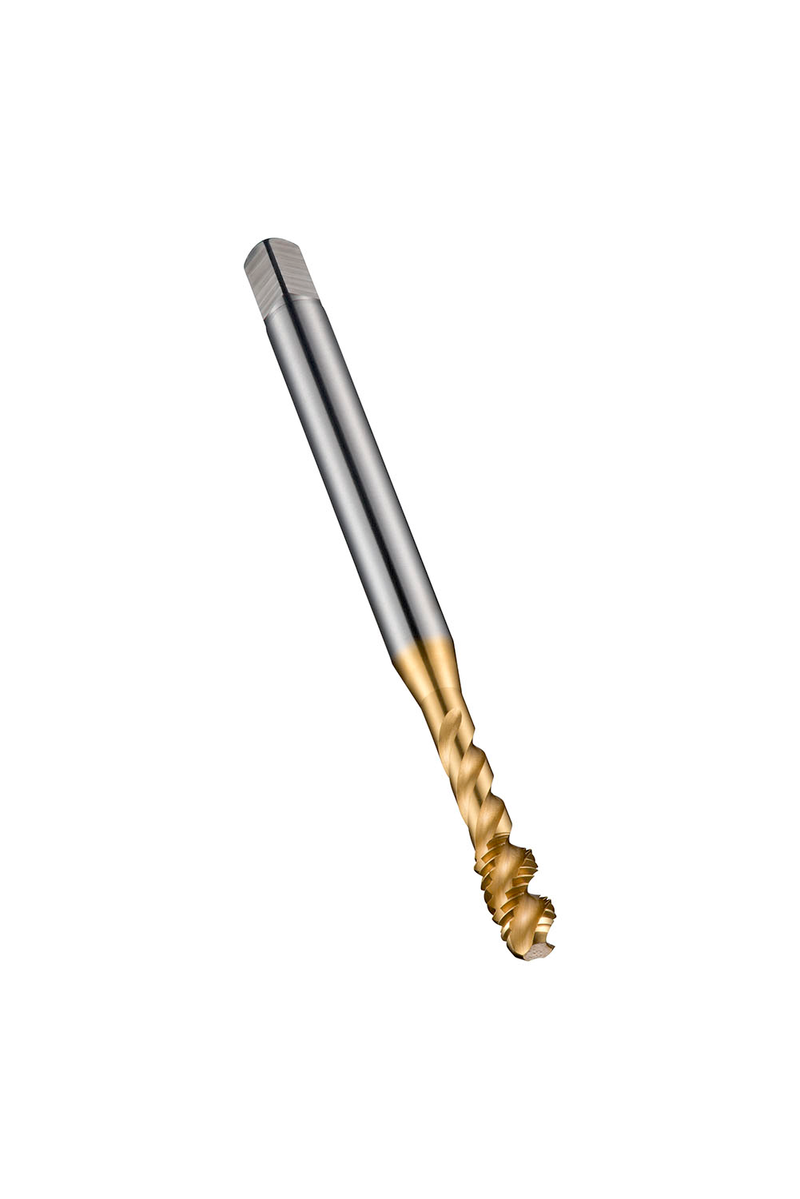

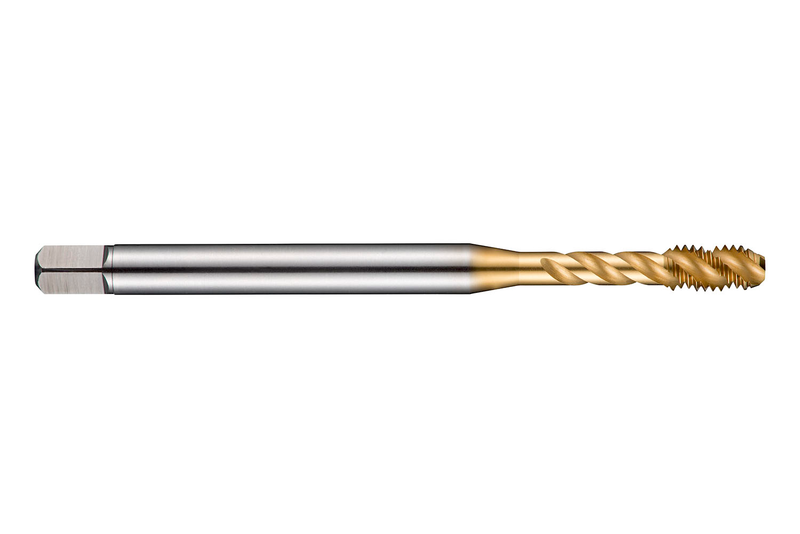

Taraud machine à goujures hélicoïdales coupe C, entrée 2-3 filets, pour filetage métrique ISO M12 au pas de 1,75 mm et qualité 6H, dimensions selon norme DIN 376, queue de 9,0 mm et carré d'entraînement de 7,0 mm, en HSS-E fritté avec revêtement TiN et un angle d'hélice de 45° pour le taraudage de trous borgnes jusqu'à 2.5xD dans les aciers et aciers moulés, les aciers inoxydables ferritiques, martensitiques et austénitiques et l'aluminium moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX00TINM12
GradeTiN
Product Number6196734
Product FamilyEX00TIN
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Gros filet métrique
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46196734
EAN7320760662427
File Type Download
EX00TINM12 — Line Drawing PDF Download
