E299M14X1,5
E299M14X1,5
E299M14X1,5

E299M14X1,5

UGC DOR6290595
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$83.96 CAD - $83.96 CAD
$83.96 CAD
$83.96 CAD - $83.96 CAD
$83.96 CAD

Vendu en lots de : 1

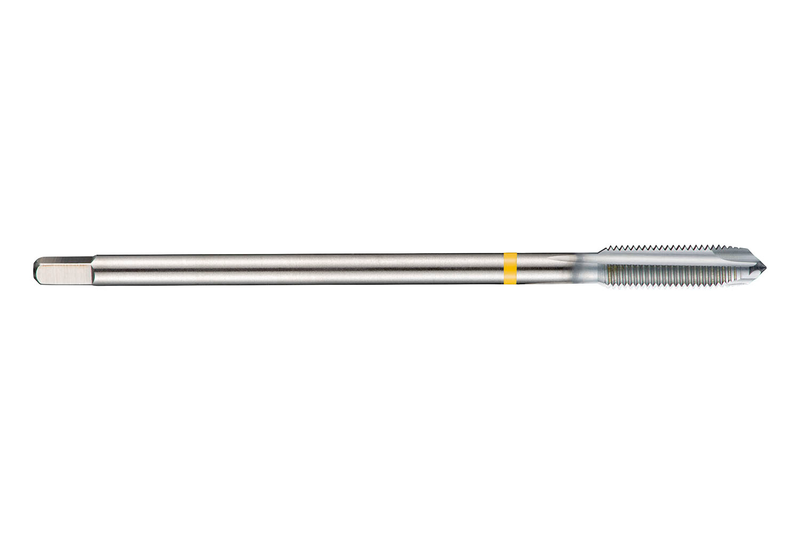

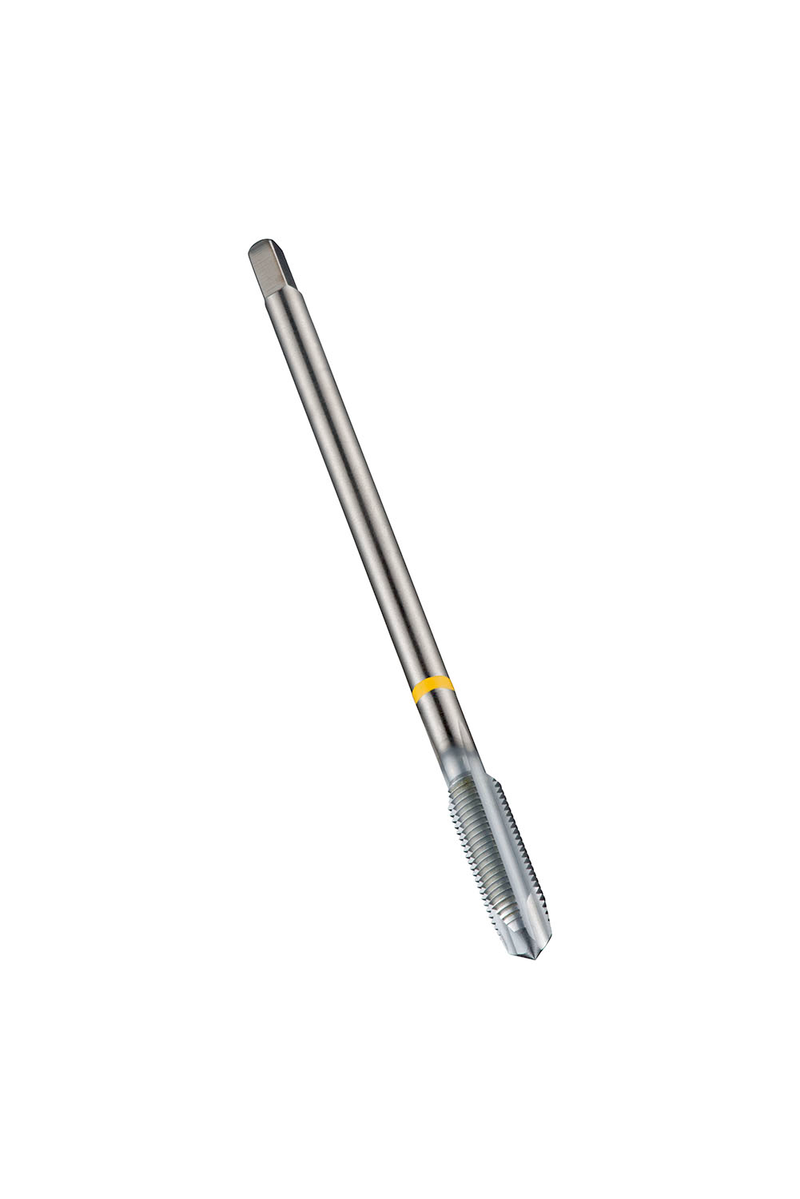

Taraud machine Yellow Shark à listel renforcé, forme B, entrée 3.5-5xP, pour filet métrique fin ISO M14 au pas de 1.50 mm et tolérance 6H, dimensions selon norme DIN 374 avec queue de 11.0mm et carré d'entraînement de 9.0mm, en HSS-E PM avec finition de surface chrome flash pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers non alliés et les aciers au carbone, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)E299M14X1,5
Product Name (ISO)E299M14X1.5
GradeFlash Crome
Product Number6290595
Product FamilyE299

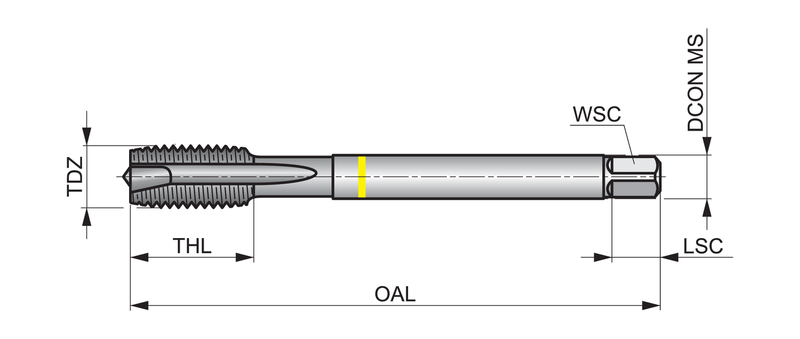

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)14
Thread Form (THFT)MF - Mince
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number46290595
EAN7320760663158
File Type Download
E299M14X1,5 — Line Drawing PDF Download
