E300M22X1.5
E300M22X1.5
E300M22X1.5

E300M22X1.5

UGC DOR6290625
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$202.31 CAD - $202.31 CAD
$202.31 CAD
$202.31 CAD - $202.31 CAD
$202.31 CAD

Vendu en lots de : 1

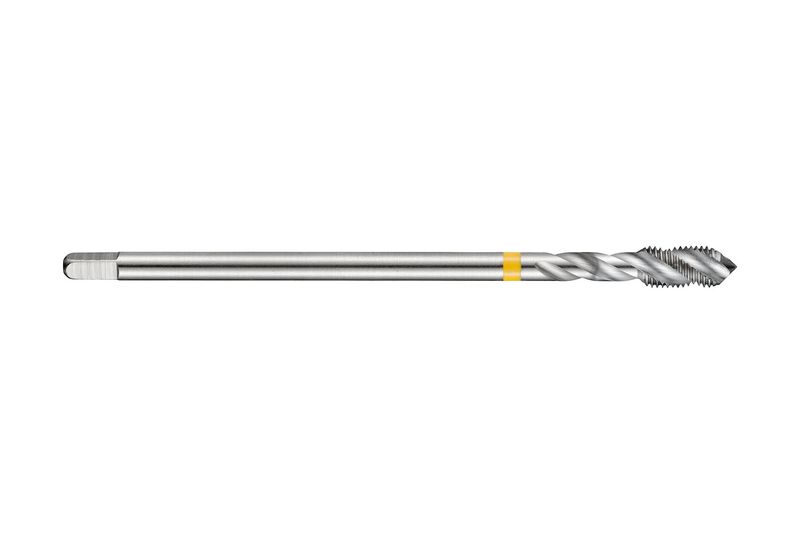

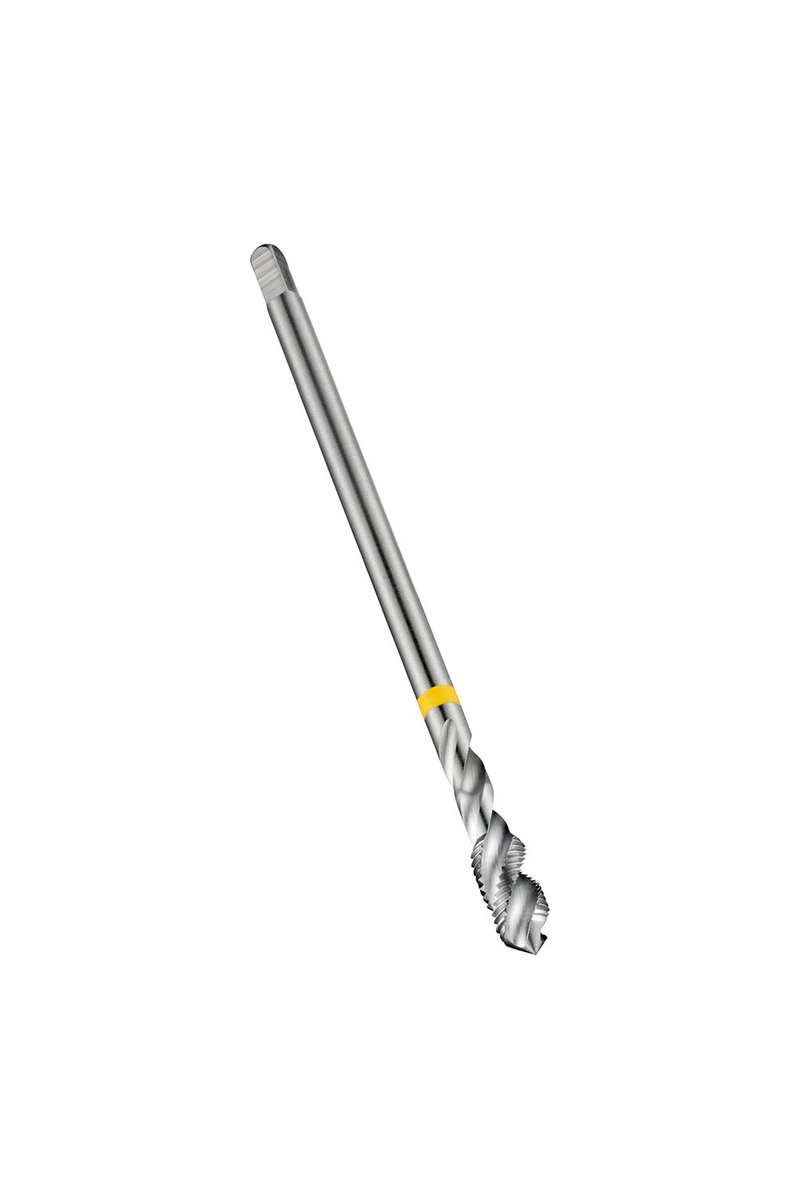

Taraud à gorge hélicoïdale Yellow Shark forme C avec entrée 2-3xP, pour filet ISO-métrique fin M22 au pas de 1,50 mm et classe de tolérance 6H, dimensions selon norme DIN 374 avec queue de 18,0 mm et carré de 14,5 mm, en HSS-E PM avec revêtement flash chrome et hélice de 40° pour taraudage de trous borgnes jusqu'à 2xD dans les aciers de décolletage, aciers au carbone non alliés et le cuivre ou ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E300M22X1.5
GradeFlash Crome
Product Number6290625
Product FamilyE300

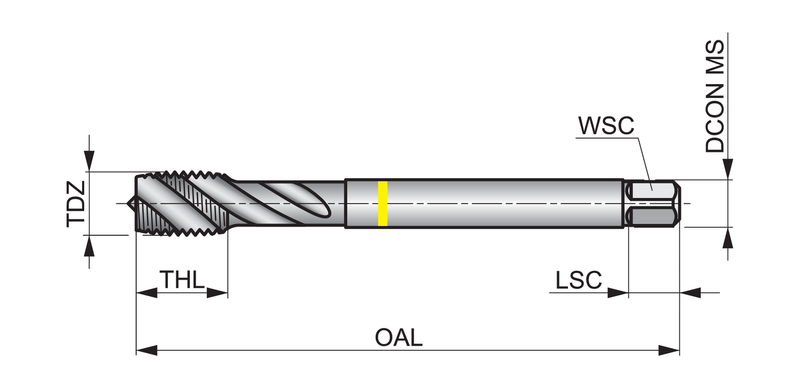

Dimensions
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)5
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)22
Thread Form (THFT)MF - Pas fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number46290625
EAN7320760663455
File Type Download
E300M22X1.5 — Line Drawing PDF Download
