E294M5
E294M5
E294M5

E294M5

UGC DOR6305749
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.04 CAD - $74.04 CAD
$74.04 CAD
$74.04 CAD - $74.04 CAD
$74.04 CAD

Vendu en lots de : 1

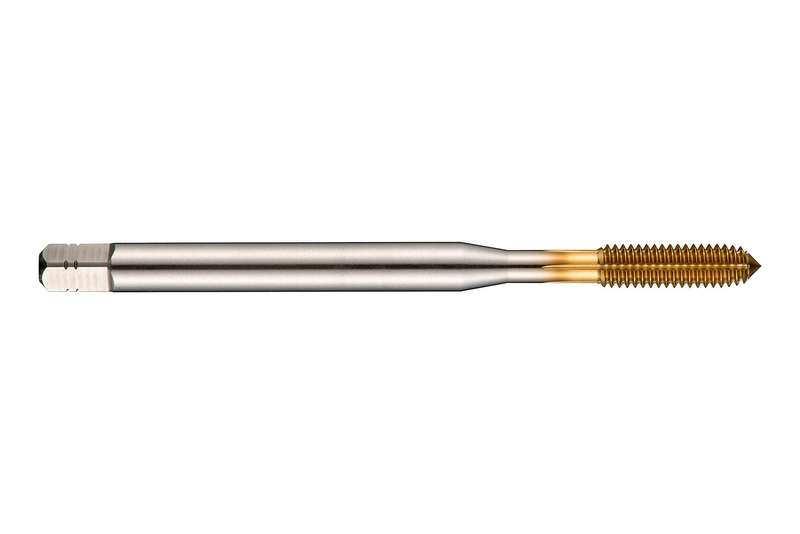

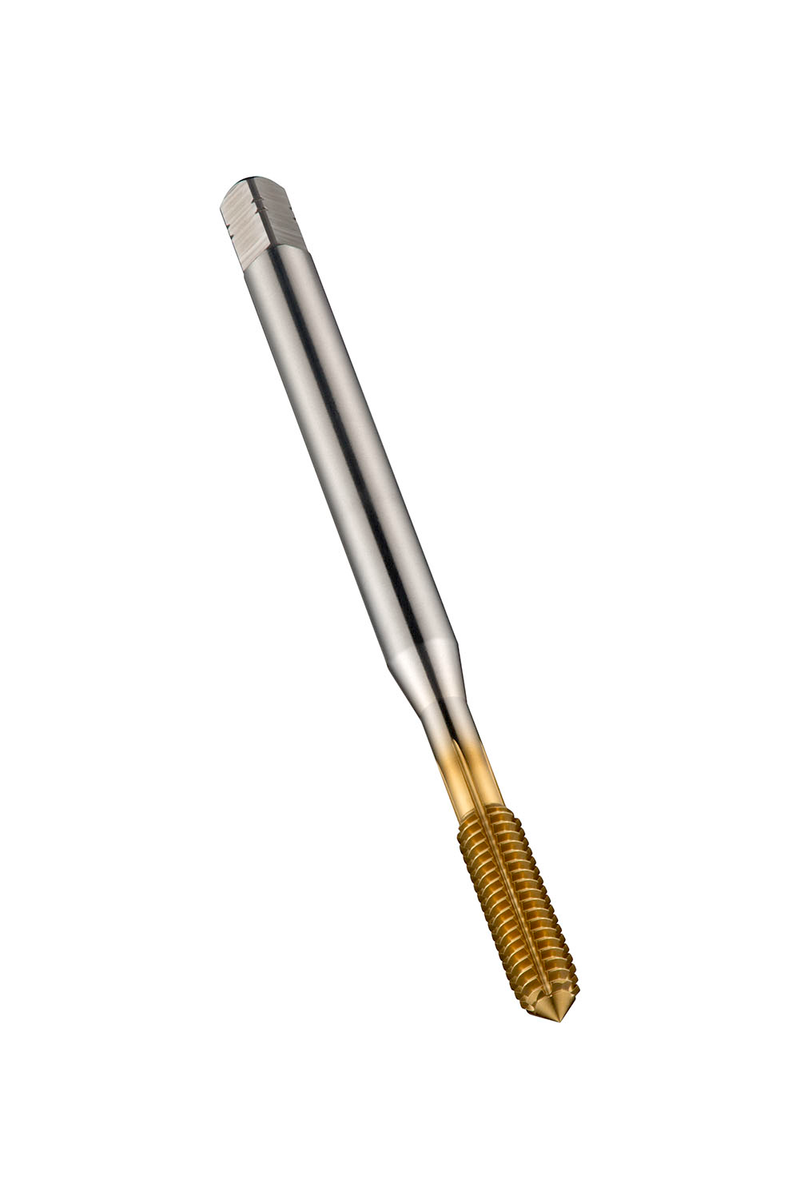

Taraud à refouler à gorges de lubrification et entrée C (2-3 filets), pour filet métrique ISO M5 au pas de 0,80 mm et tolérance 6HX, dimensions selon DIN 2174 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E cobalt avec revêtement TiN, pour le taraudage de trous borgnes ou débouchants jusqu'à 3,5xD dans l'acier et l'acier moulé, l'acier inoxydable et l'aluminium corroyé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E294M5
GradeTiN
Product Number6305749
Product FamilyE294

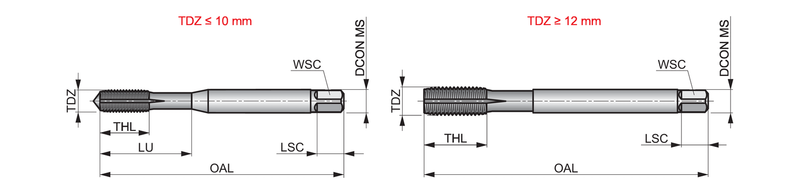

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio3.5
Usable Length — in (LU)0.9843"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2174
Reference Numbers
EDP Number46305749
EAN7320760663813
File Type Download
E294M5 — Line Drawing PDF Download
