E294M10
E294M10
E294M10

E294M10

UGC DOR6305752
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.29 CAD - $104.29 CAD
$104.29 CAD
$104.29 CAD - $104.29 CAD
$104.29 CAD

Vendu en lots de : 1

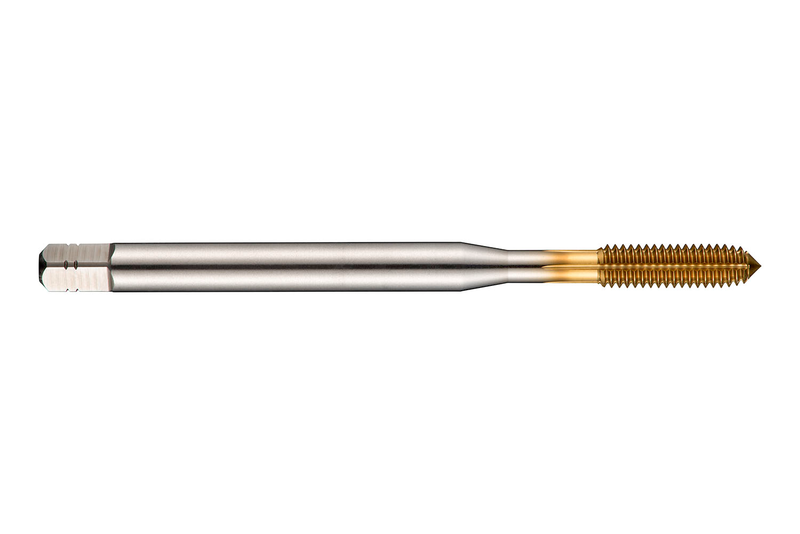

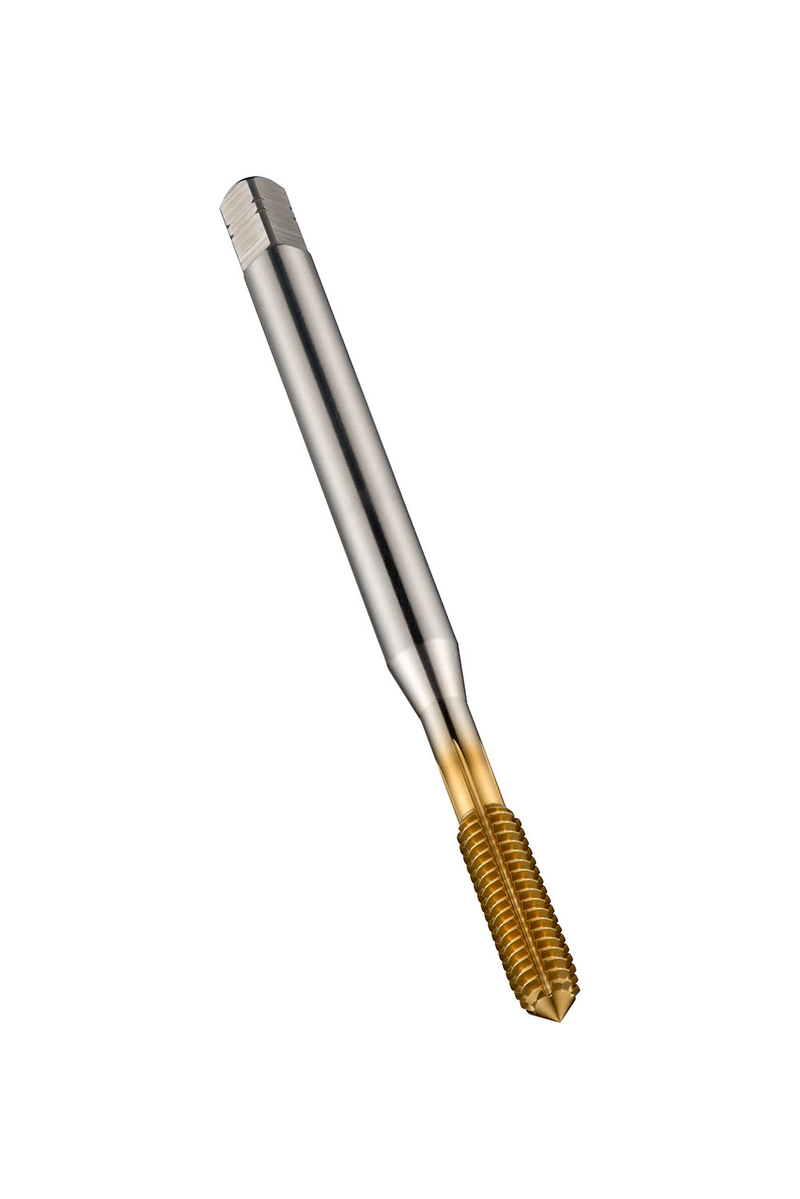

Taraud à refouler avec gorges de lubrification, forme C avec entrée de 2-3 filets, pour filetage ISO-métrique M10 au pas de 1,50 mm et classe de tolérance 6HX, dimensions conformes à la norme DIN 2174 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en HSS-E cobalté avec revêtement TiN pour le taraudage de trous borgnes ou débouchants jusqu'à 3,5xD dans l'acier et l'acier moulé, l'acier inoxydable et l'aluminium forgé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E294M10
GradeTiN
Product Number6305752
Product FamilyE294

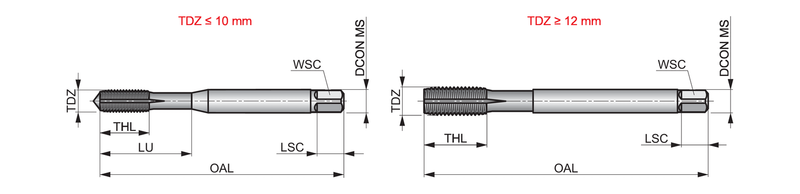

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio3.5
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Filetage métrique à pas gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique et carrée
Direction of ToolD'accord
StandardDIN 2174
Reference Numbers
EDP Number46305752
EAN7320760663844
File Type Download
E294M10 — Line Drawing PDF Download
