UGC DOR6305758
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$77.17 CAD - $77.17 CAD
$77.17 CAD
$77.17 CAD - $77.17 CAD
$77.17 CAD

Vendu en lots de : 1

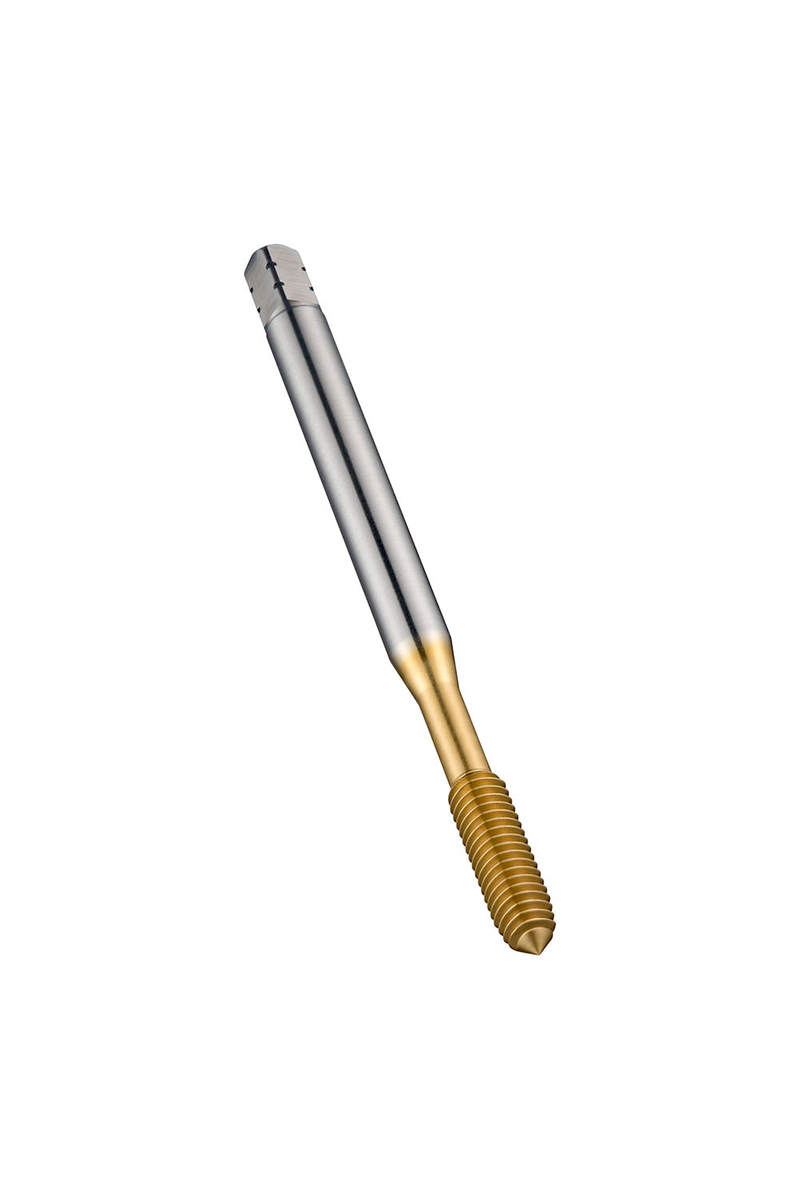

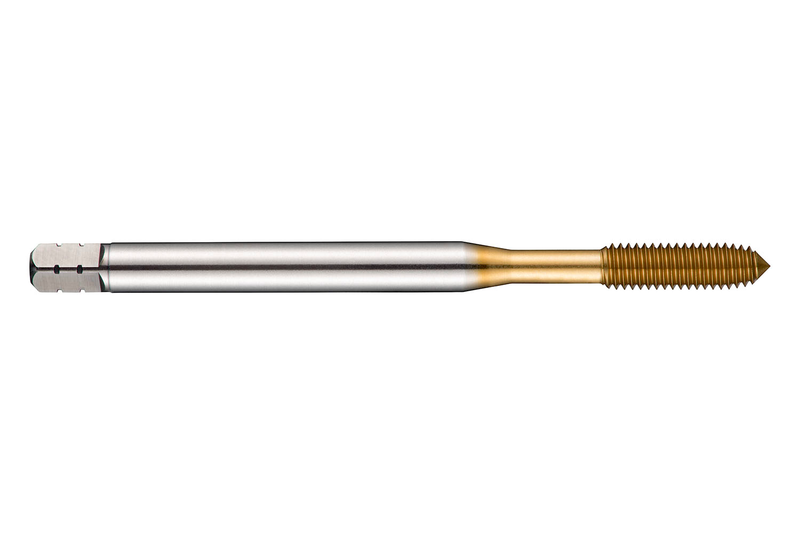

Taraud à refouler forme C, entrée 2-3 filets, pour filetage ISO-Métrique M4 au pas de 0,70 mm et tolérance 6GX, dimensions conformes à la norme DIN 2174, queue de 4,5 mm et carré d'entraînement de 3,4 mm, en HSS-E cobalté avec revêtement TiN pour le taraudage de trous débouchants ou borgnes jusqu'à 3xD dans les aciers de décolletage, aciers au carbone et alliés, aciers inoxydables ferritiques, martensitiques et austénitiques et alliages d'aluminium forgés ou moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E295M4
GradeTiN
Product Number6305758
Product FamilyE295

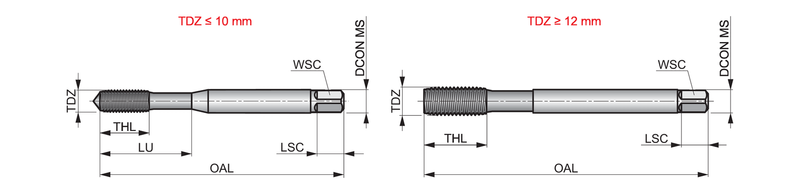

Dimensions
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)0.8268"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2174
Reference Numbers
EDP Number46305758
EAN7320760663905
File Type Download
E295M4 — Line Drawing PDF Download
