UGC DOR6305811
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.33 CAD - $44.33 CAD
$44.33 CAD
$44.33 CAD - $44.33 CAD
$44.33 CAD

Vendu en lots de : 1

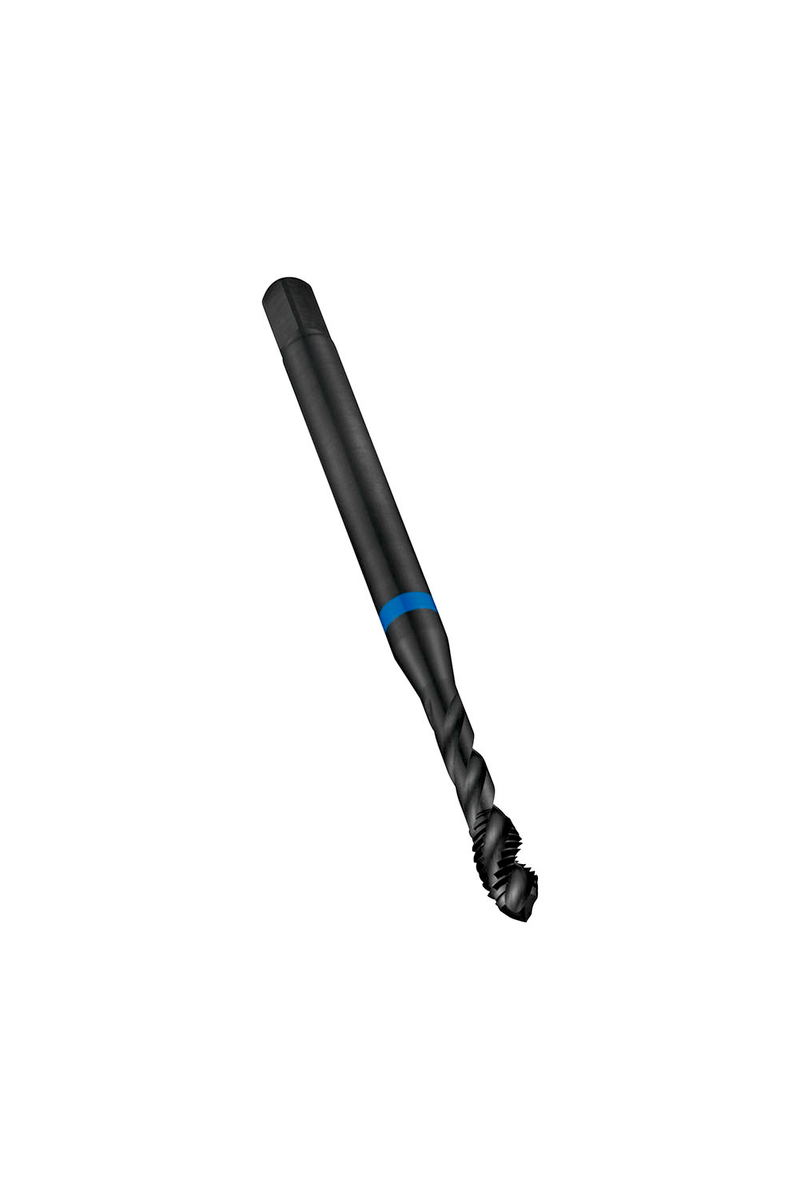

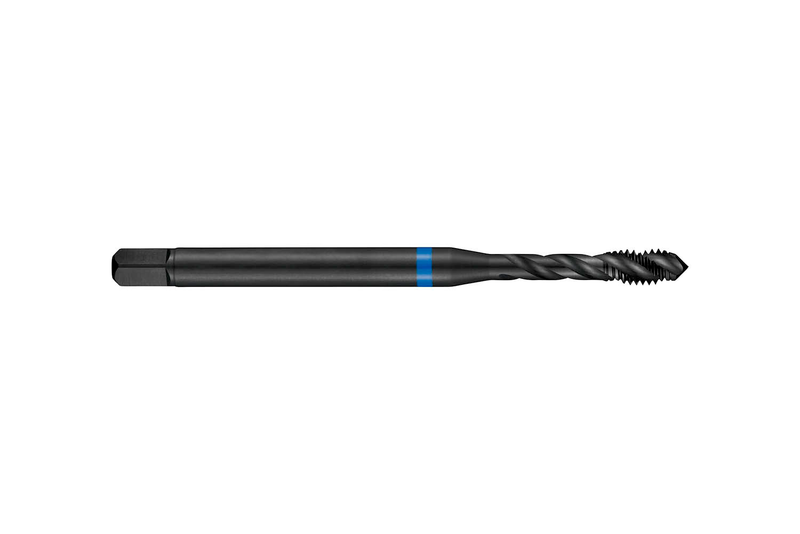

Taraud machine Blue Shark à goujures hélicoïdales, forme C avec entrée de 2-3 filets, pour filetage métrique ISO M8 au pas de 1,25 mm et tolérance 6H, dimensions conformes à la norme DIN 371 avec queue de 8,0 mm et carré d'entraînement de 6,2 mm, en HSS-E fritté avec finition de surface revenu vapeur et angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2,5xD dans les aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E238M8
GradeTrempé à la vapeur
Product Number6305811
Product FamilyE238

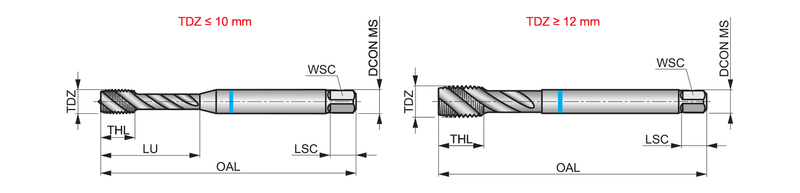

Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.2992"
Usable Length — mm (LU)33.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46305811
EAN7320760664162
File Type Download
E238M8 — Line Drawing PDF Download
