E239M6
E239M6
E239M6

E239M6

UGC DOR6305820
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.31 CAD - $56.31 CAD
$56.31 CAD
$56.31 CAD - $56.31 CAD
$56.31 CAD

Vendu en lots de : 1

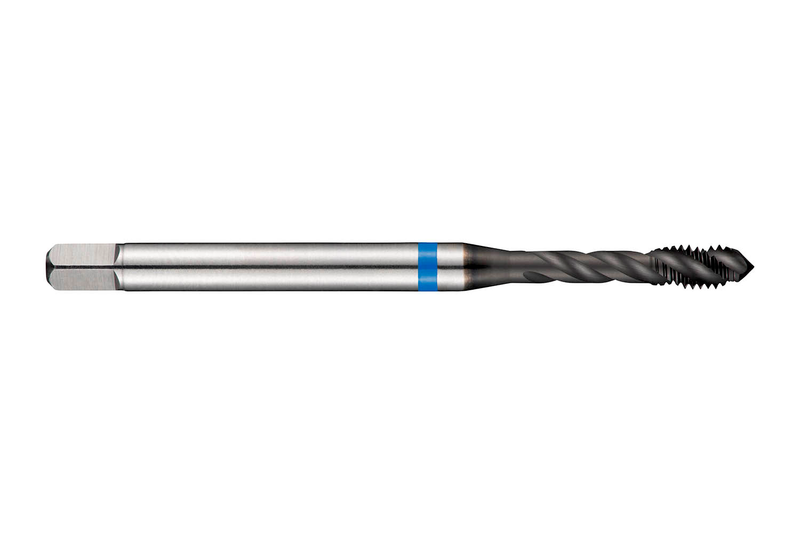

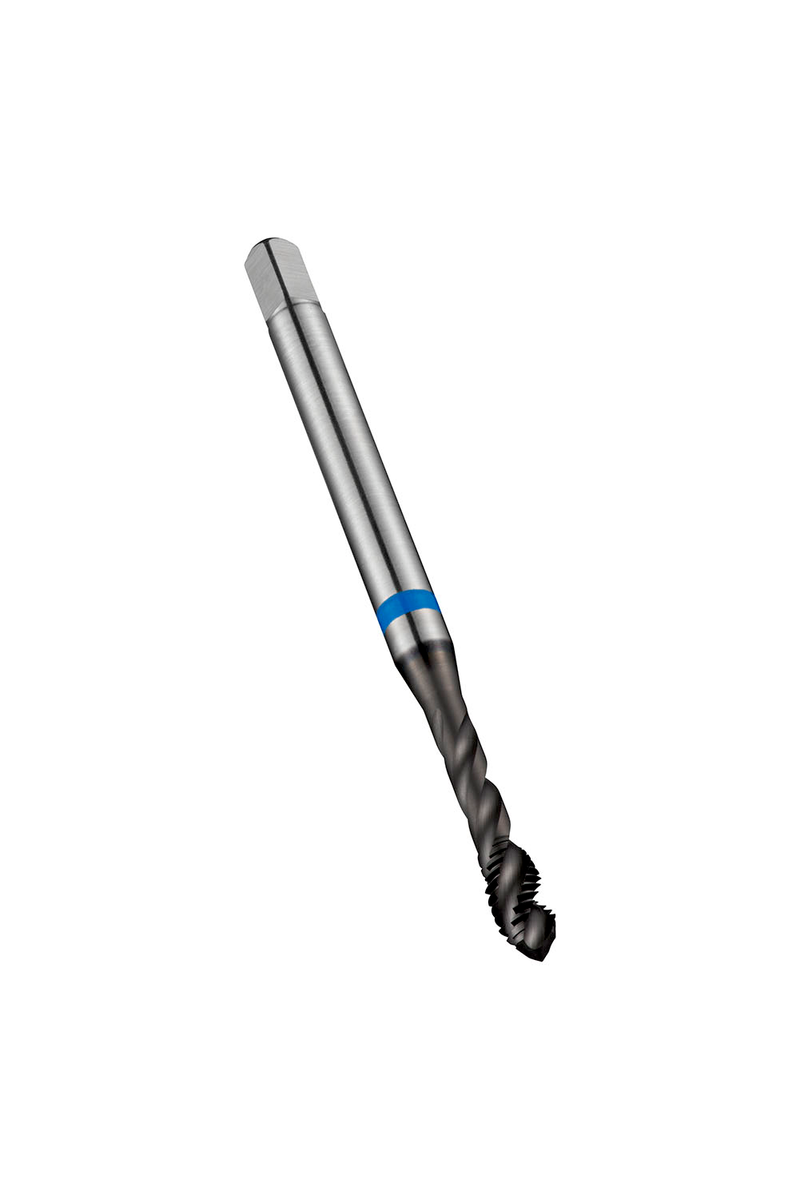

Taraud machine Blue Shark à goujures hélicoïdales, forme C avec entrée de 2-3 filets, pour filetage métrique ISO M6 au pas de 1,00 mm et tolérance 6H, dimensions selon norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E fritté avec revêtement Super-B et un angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2,5xD dans les aciers inoxydables ferritiques, martensitiques et austénitiques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E239M6
GradeSUPER-B
Product Number6305820
Product FamilyE239

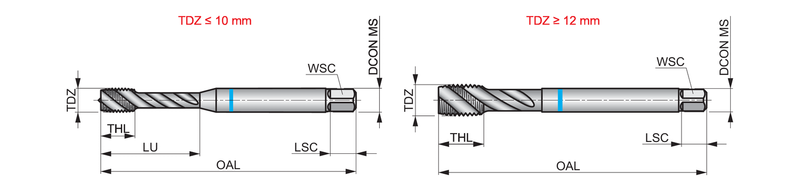

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.1811"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46305820
EAN7320760664254
File Type Download
E239M6 — Line Drawing PDF Download
