E240M24
E240M24
E240M24

E240M24

UGC DOR6305829
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$181.99 CAD - $181.99 CAD
$181.99 CAD
$181.99 CAD - $181.99 CAD
$181.99 CAD

Vendu en lots de : 1

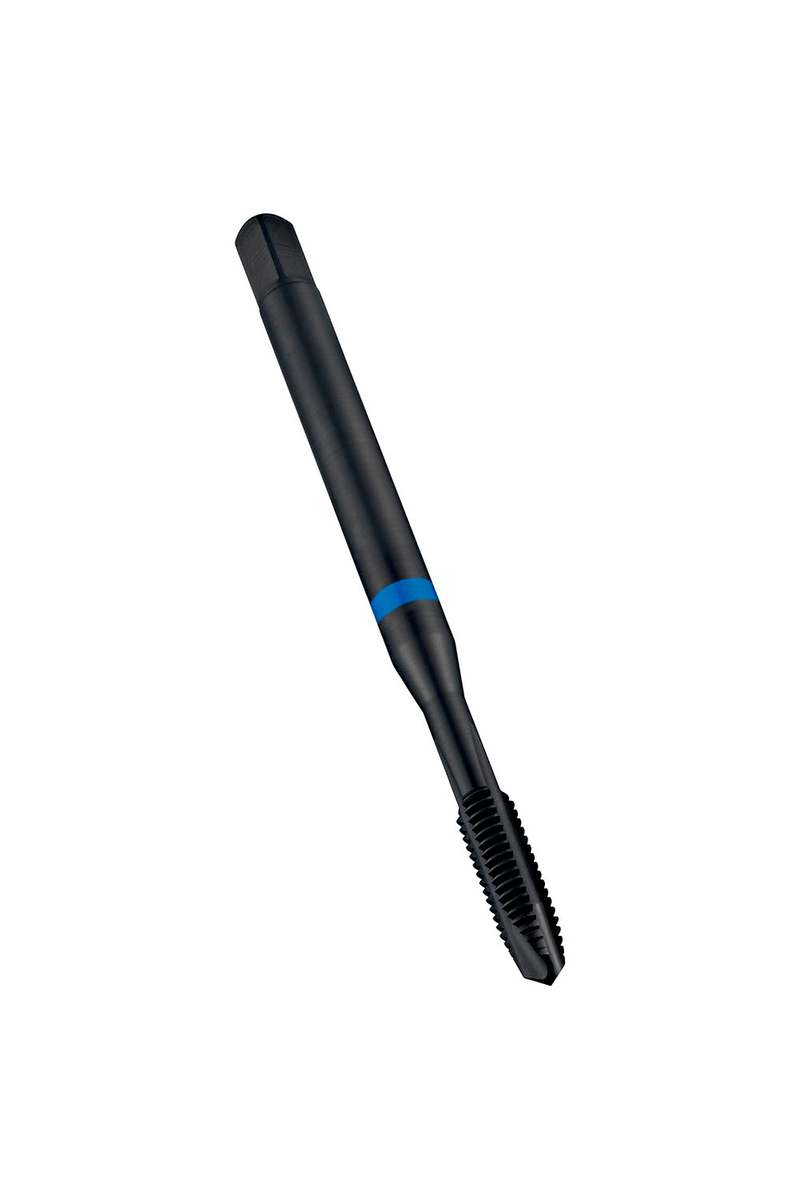

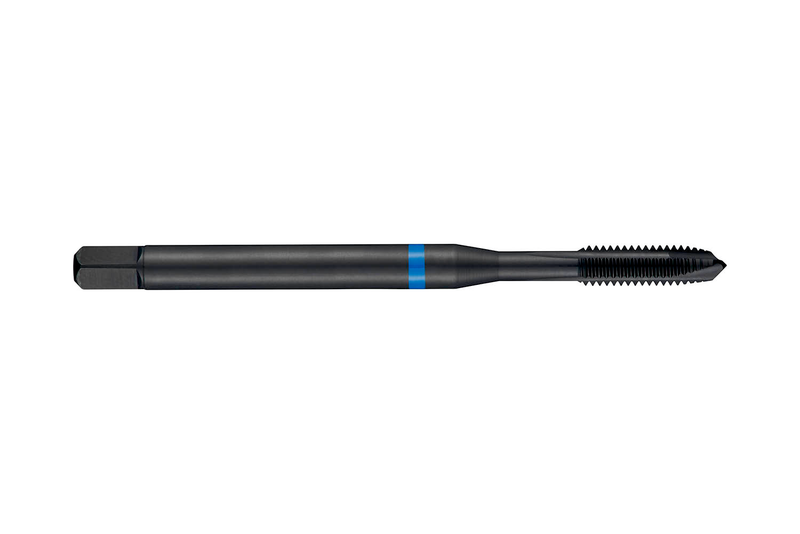

Taraud machine Blue Shark à pointe spirale, forme de chanfrein B avec une entrée de 3,5-5 filets, pour filetage ISO-Métric M24 au pas de 3,00 mm et classe de tolérance 6H, dimensions selon norme DIN 376 avec queue de 18,0 mm et carré d'entraînement de 14,5 mm, en HSS-E métallurgie des poudres avec finition de surface revenu vapeur pour filetage 2.5xD dans les aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E240M24
GradeTrempé à la vapeur
Product Number6305829
Product FamilyE240
Dimensions
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)24
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)3.0 mm
Thread Pitch — in (TP)0.1181"
Tool Information
ShankQueue cylindrique à embase carrée
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46305829
EAN7320760664346
File Type Download
E240M24 — Line Drawing PDF Download
