UGC DOR6305833
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.16 CAD - $33.16 CAD
$33.16 CAD
$33.16 CAD - $33.16 CAD
$33.16 CAD

Vendu en lots de : 1

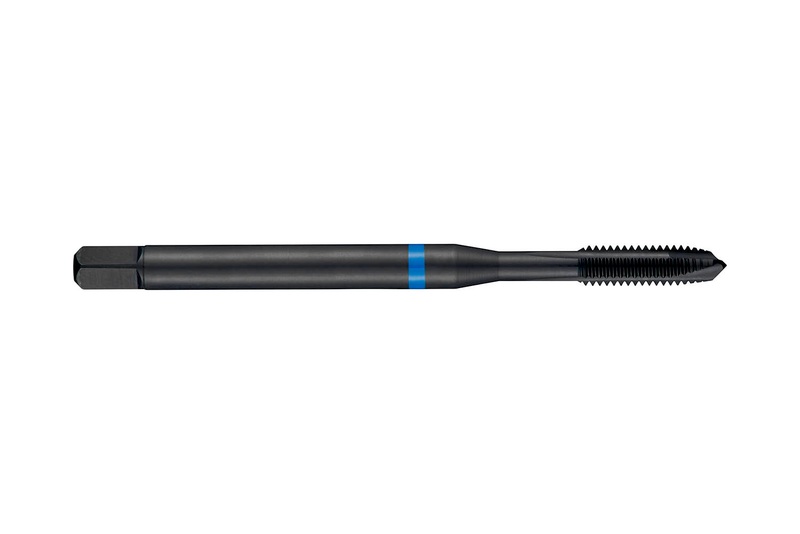

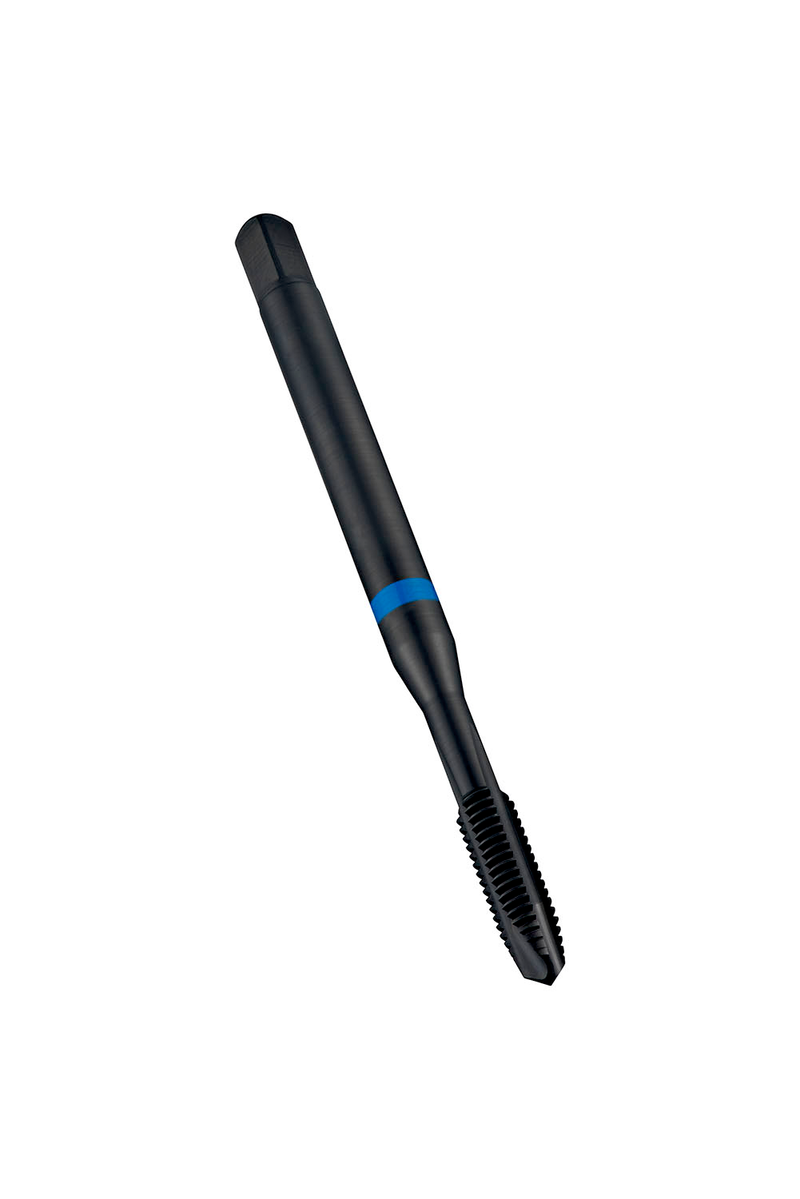

Taraud machine Blue Shark à pointe spirale avec entrée B à 3.5-5 filets, pour filetage ISO-métrique M4 au pas de 0.70 mm et tolérance 6H, dimensions selon norme DIN 371 avec queue de 4.5mm et carré d'entraînement de 3.4mm, en HSS-E fritté avec finition de surface trempée à la vapeur pour le taraudage de trous débouchants jusqu'à 2.5xD dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E240M4
GradeTrempé à la vapeur
Product Number6305833
Product FamilyE240
Dimensions
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.8268"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46305833
EAN7320760664384
File Type Download
E240M4 — Line Drawing PDF Download
