E241M18
E241M18
E241M18

E241M18

UGC DOR6305841
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$190.33 CAD - $190.33 CAD
$190.33 CAD
$190.33 CAD - $190.33 CAD
$190.33 CAD

Vendu en lots de : 1

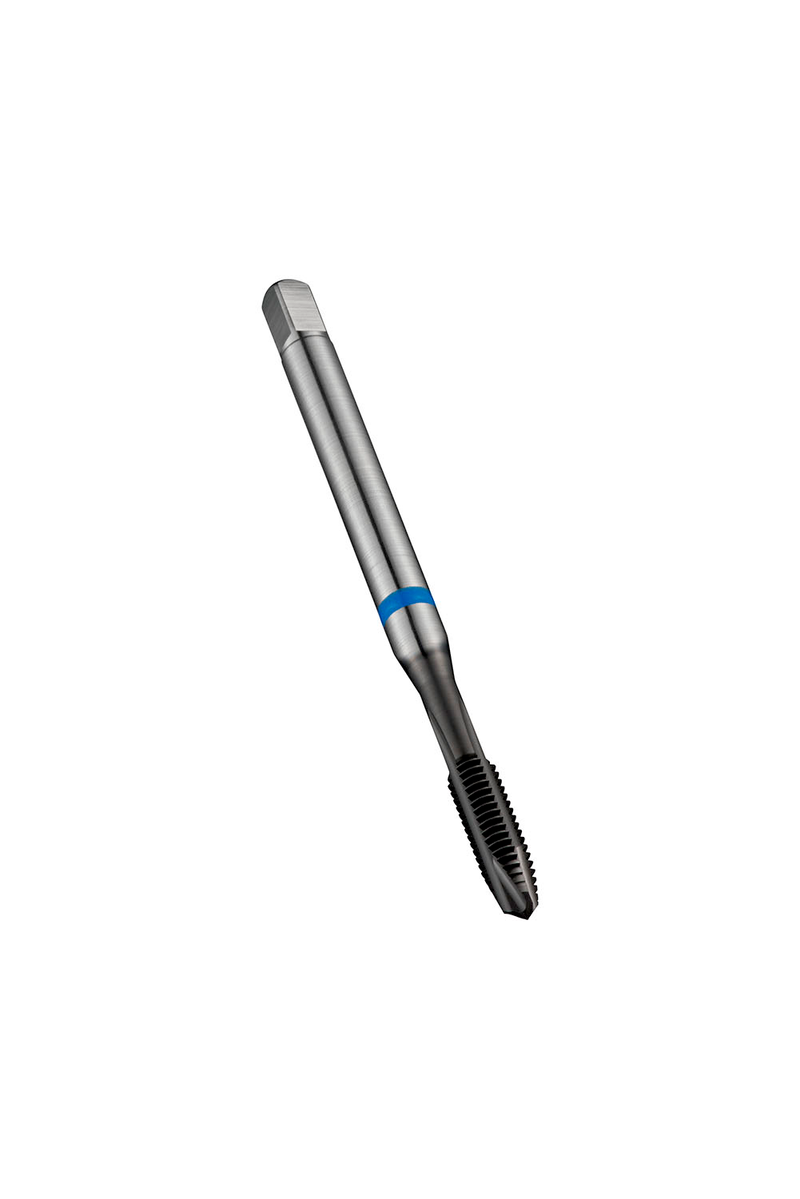

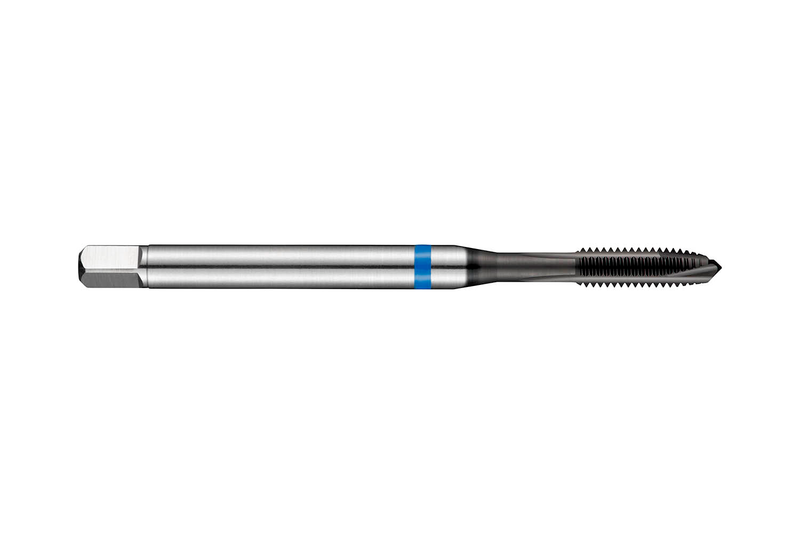

Taraud machine Blue Shark à pointe spirale avec entrée B à 3,5-5 filets, pour filetage ISO-Métrique M18 au pas de 2,50 mm et classe de tolérance 6H, dimensions selon la norme DIN 376 avec queue de 14,0 mm et carré d'entraînement de 11,0 mm, en HSS-E PM avec revêtement Super-B pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers inoxydables ferritiques, martensitiques et austénitiques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E241M18
GradeSUPER-B
Product Number6305841
Product FamilyE241
Dimensions
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)18
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.0984"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46305841
EAN7320760664469
File Type Download
E241M18 — Line Drawing PDF Download
