A10823/64
A10823/64
A10823/64
A10823/64

A10823/64

UGC DOR6305906
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.21 CAD - $11.21 CAD
$11.21 CAD
$11.21 CAD - $11.21 CAD
$11.21 CAD

Vendu en lots de : 10

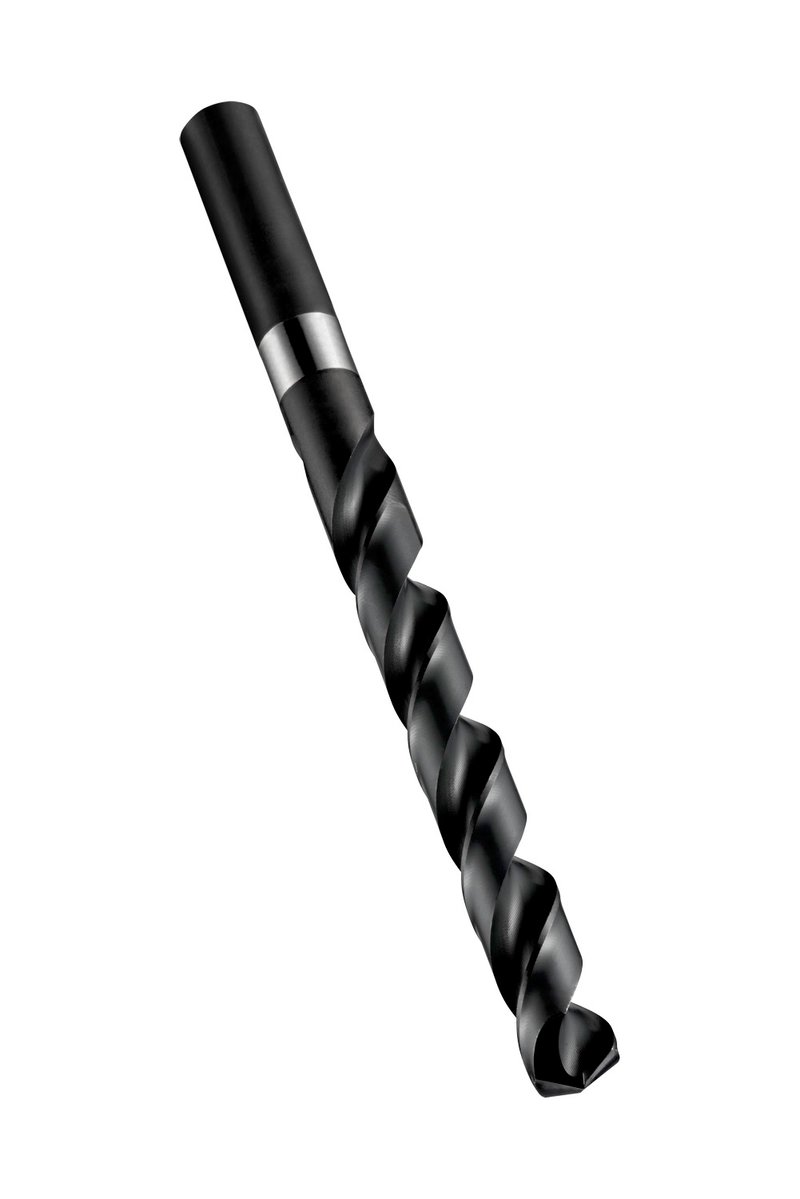

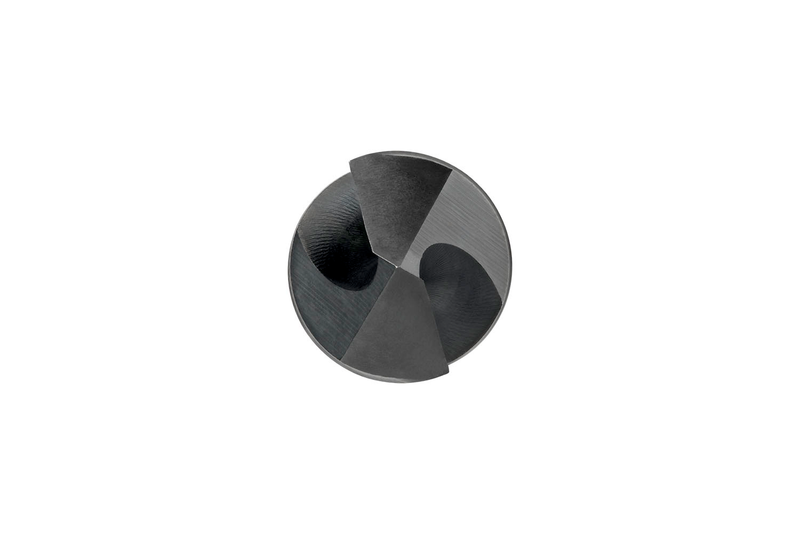

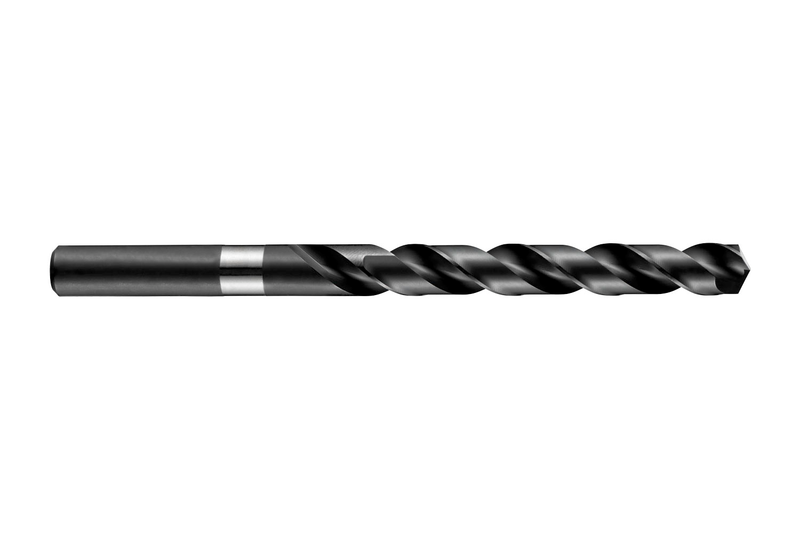

Foret court avec queue cylindrique, diamètre 0,3594" (23/64) avec une longueur totale de 125mm et une longueur de coupe de 81mm selon la norme DIN 338 avec une pointe auto-centrante de 135°, HSS avec finition trempée vapeur et hélice rapide pour un perçage 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10823/64
GradeTrempé vapeur
Product Number6305906
Product FamilyA108
Dimensions
Cutting Diameter — in (DC)0.3594"
Cutting Diameter — mm (DC)9.13 mm
Cutting Diameter — Fractional23/64
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — in (LCF)3.189"
Flute Length — mm (LCF)81.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3594"
Connection Dia. — mm (DCON)9.13 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number46305906
EAN7320760664865
File Type Download
A10823/64 — 3D Model STP Download
A10823/64 — Line Drawing PDF Download
