G6006.3
G6006.3
G6006.3
G6006.3

G6006.3

UGC DOR6381768
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.77 CAD - $69.77 CAD
$69.77 CAD
$69.77 CAD - $69.77 CAD
$69.77 CAD

Vendu en lots de : 1

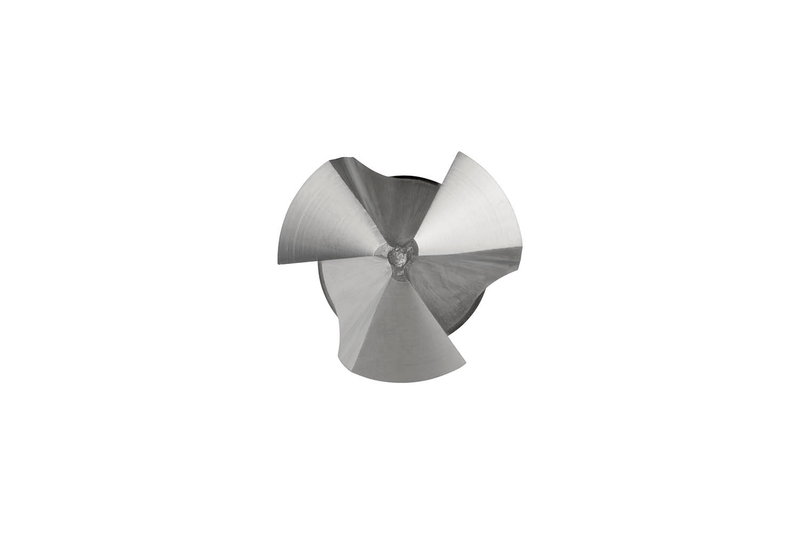

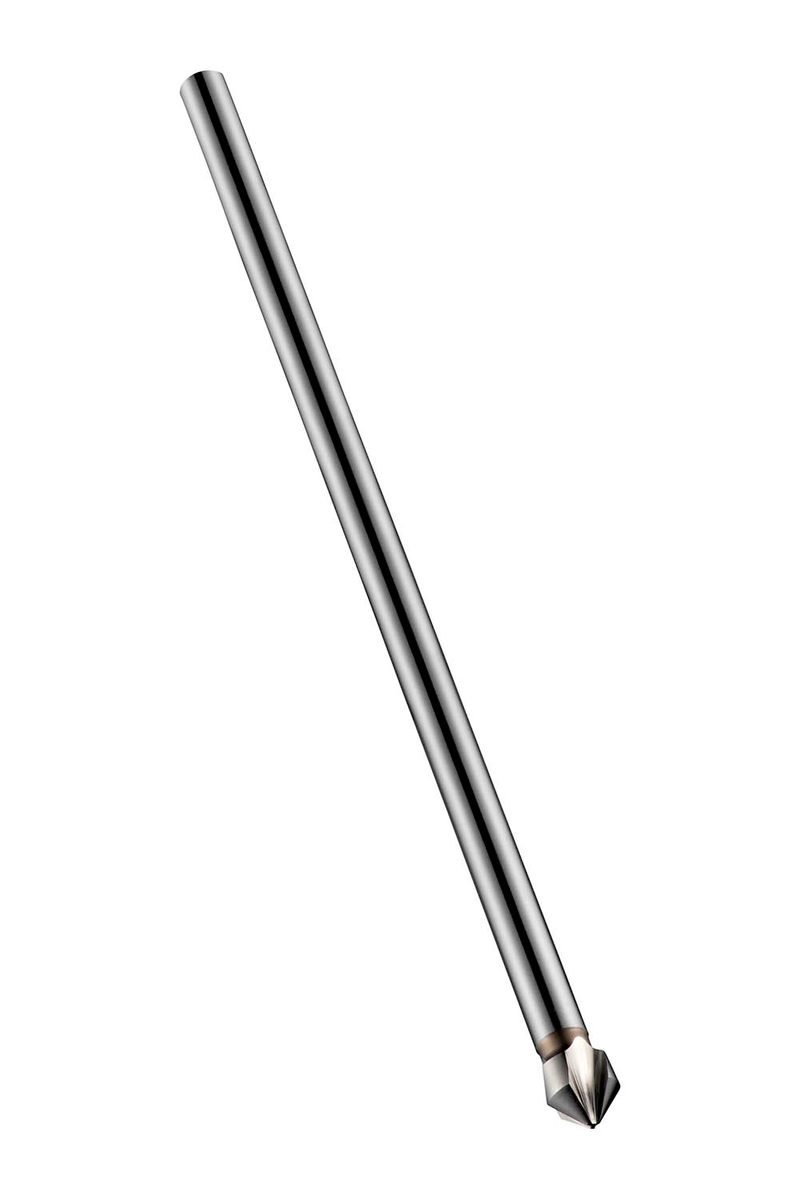

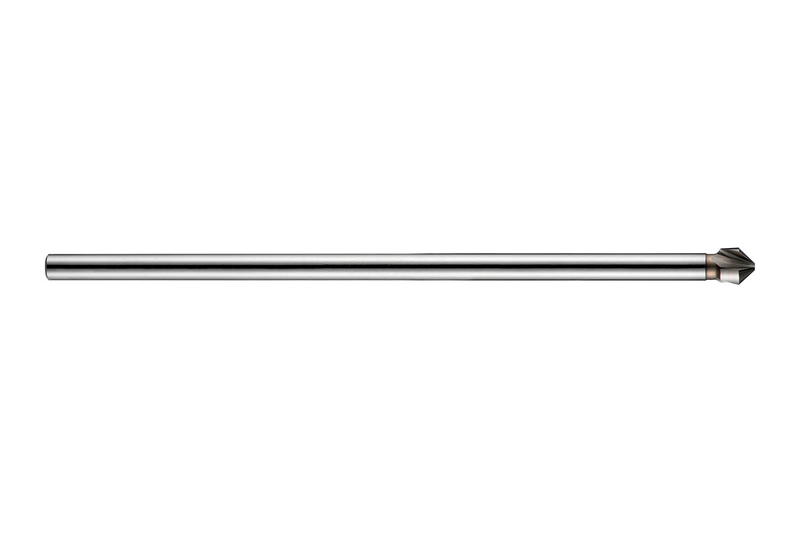

Fraise à chanfreiner 3 tailles, angle de chanfrein 90°, diamètre maximum 6,30 mm, longueur totale 154 mm, longueur de tête 5,6 mm et queue cylindrique étendue de 5 mm, selon la norme DORMER pour produire un logement conique pour vis à tête fraisée métriques ISO avec un diamètre de trou minimum de 1,30 mm, HSS avec finition brillante standard pour l'usinage de l'acier à usinage libre, de l'acier au carbone et de l'acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G6006.3
GradeLumineux
Product Number6381768
Product FamilyG600

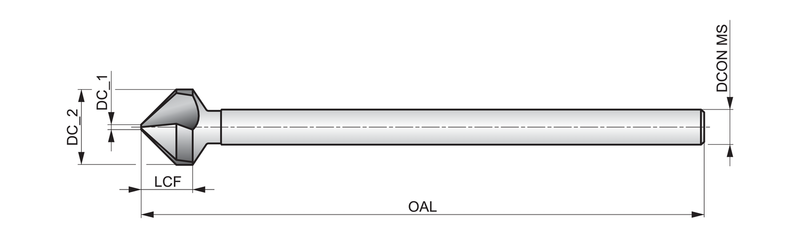

Dimensions
Overall Length — in (OAL)6.063"
Overall Length — mm (OAL)154.0 mm
Flute Length — mm (LCF)5.6 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number46381768
EAN7320760669075
File Type Download
G6006.3 — Line Drawing PDF Download
