G60015.0
G60015.0
G60015.0
G60015.0

G60015.0

UGC DOR6381772
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$97.79 CAD - $97.79 CAD
$97.79 CAD
$97.79 CAD - $97.79 CAD
$97.79 CAD

Vendu en lots de : 1

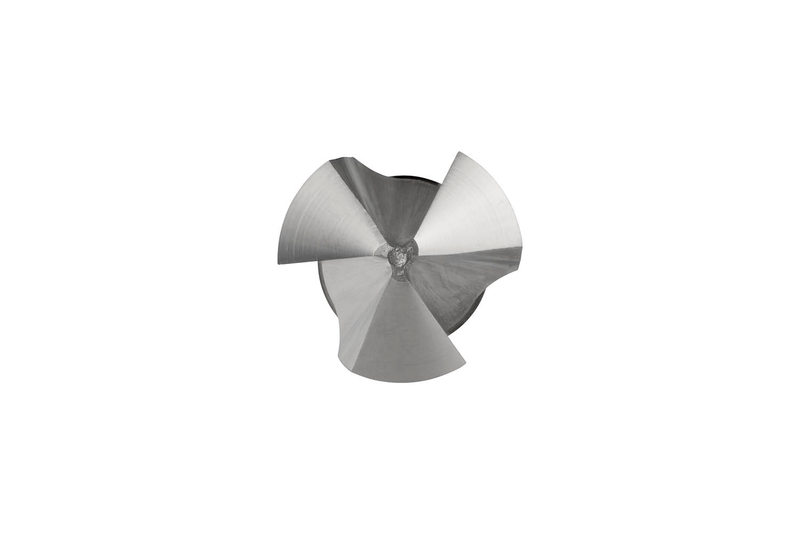

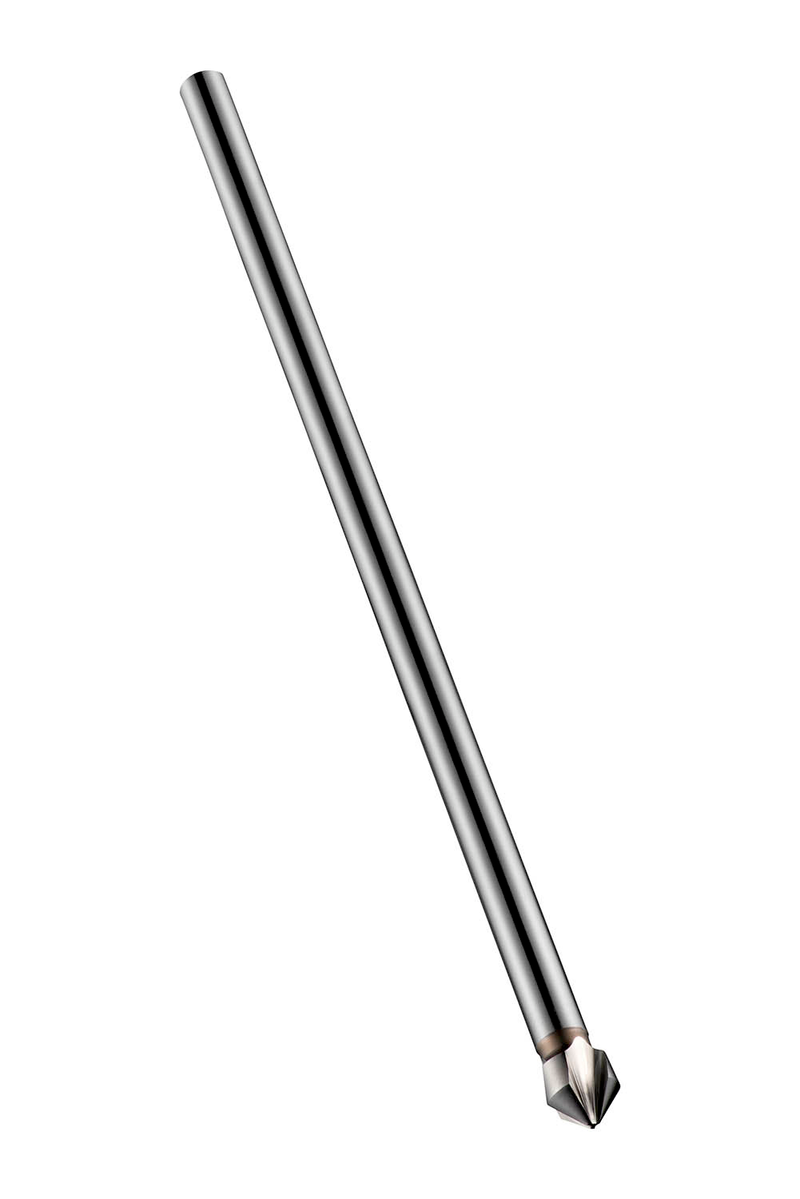

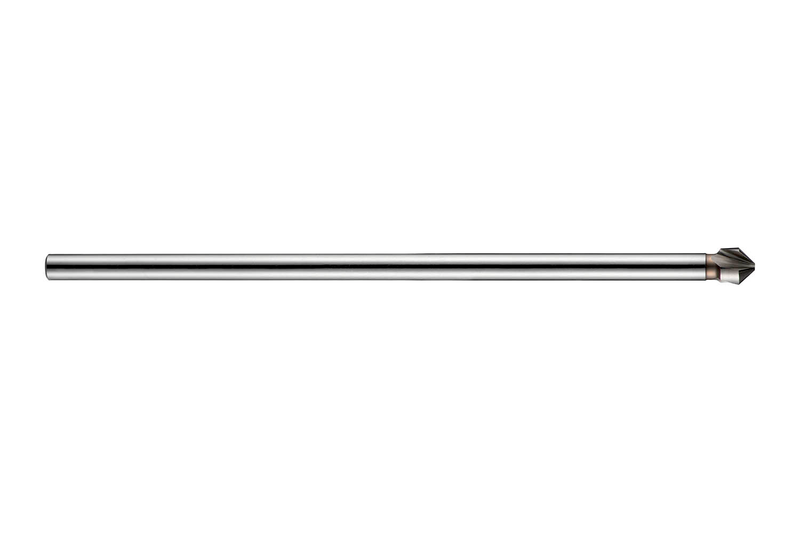

Fraise à chanfreiner 3 tailles, angle de chanfreinage de 90°, diamètre maximal de 15,00 mm, longueur totale de 159 mm, longueur de tête de 10,3 mm et queue cylindrique étendue de 10 mm, selon la norme DORMER pour la réalisation d'un logement conique pour vis métriques à tête fraisée ISO avec un diamètre de perçage minimum de 2,80 mm, en acier rapide (HSS) avec finition brillante standard pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et des aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G60015.0
GradeLumineux
Product Number6381772
Product FamilyG600
Dimensions
Overall Length — in (OAL)6.2598"
Overall Length — mm (OAL)159.0 mm
Flute Length — mm (LCF)10.3 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number46381772
EAN7320760669112
File Type Download

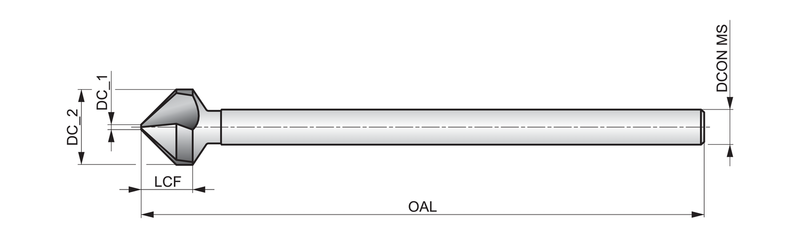

G60015.0 — Line Drawing PDF Download
