EP006GM8
EP006GM8
EP006GM8

EP006GM8

UGC DOR6479124
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.99 CAD - $40.99 CAD
$40.99 CAD
$40.99 CAD - $40.99 CAD
$40.99 CAD

Vendu en lots de : 1

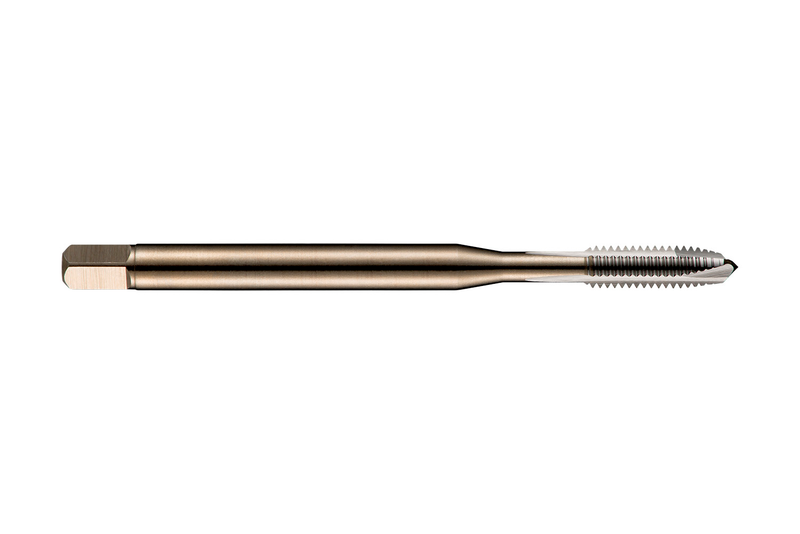

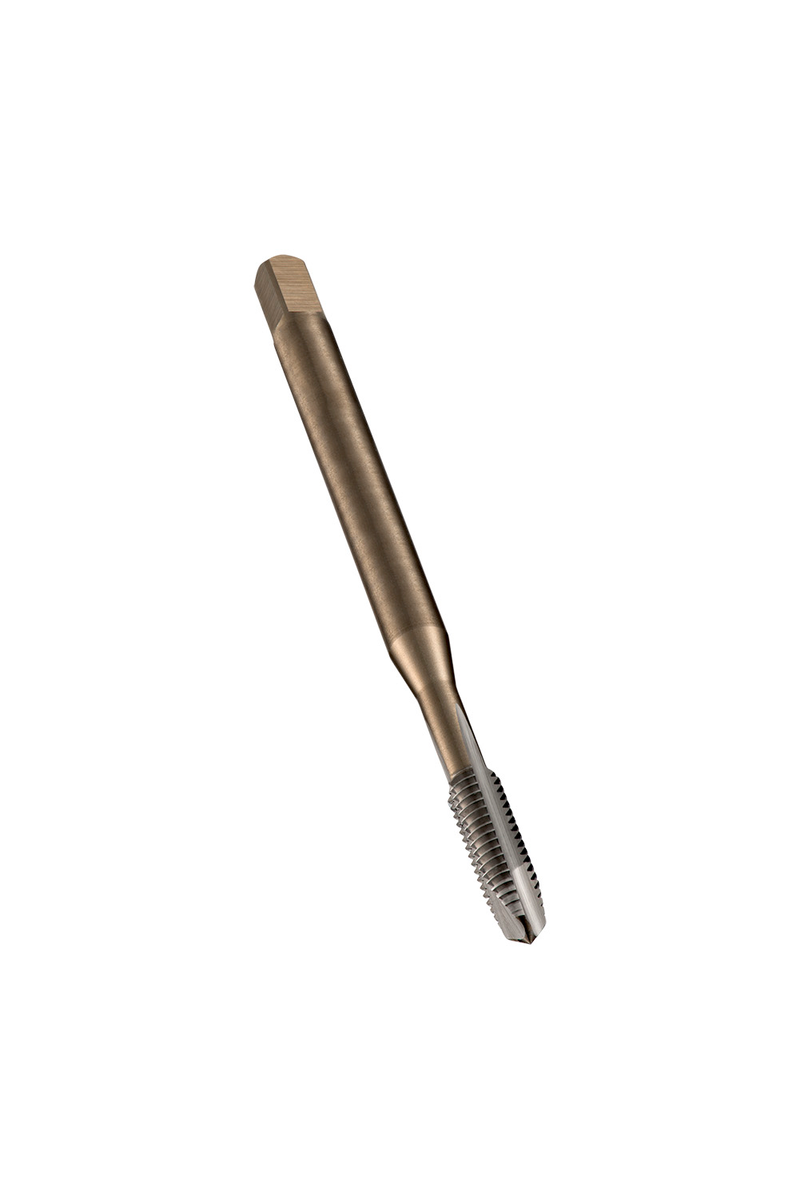

Taraud machine à pointe spirale avec chanfrein forme B de 3.5-5xP, pour filetage métrique ISO M8 au pas de 1.25 mm et classe de tolérance 6G, dimensions conformes à la norme DIN 371 avec queue de 8.0mm et carré d'entraînement de 6.2mm, en HSS-E (acier rapide fritté) avec finition brillante pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers de décolletage, les aciers au carbone non alliés et les aluminiums corroyés ou moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP006GM8
GradeLumineux
Product Number6479124
Product FamilyEP006G
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46479124
EAN7320760669402
File Type Download

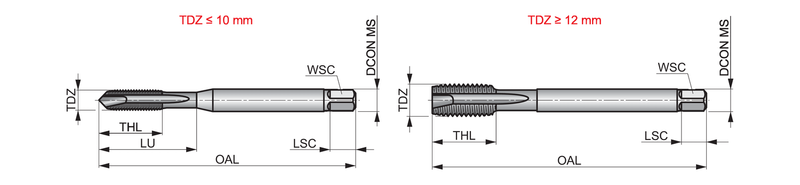

EP006GM8 — Line Drawing PDF Download
