EP006GM12
EP006GM12
EP006GM12

EP006GM12

UGC DOR6479126
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$64.66 CAD - $64.66 CAD
$64.66 CAD
$64.66 CAD - $64.66 CAD
$64.66 CAD

Vendu en lots de : 1

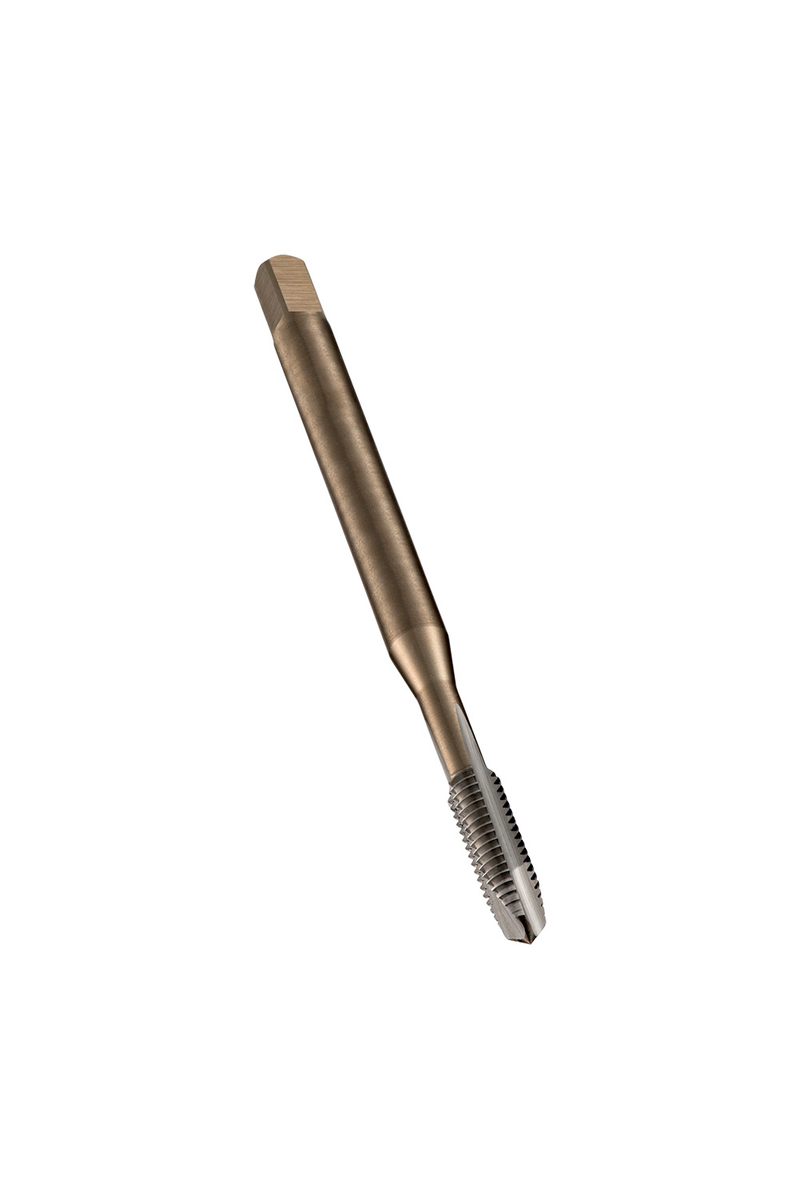

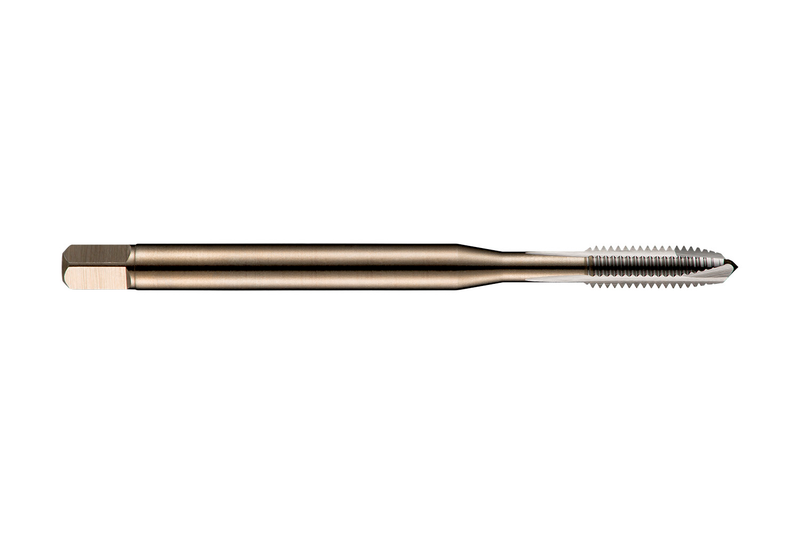

Taraud machine à pointe spirale, forme d'entrée B (3,5 à 5 filets) pour filetage métrique ISO M12 au pas de 1,75 mm, tolérance 6G, dimensions selon la norme DIN 376 avec queue de 9,0 mm et carré d'entraînement de 7,0 mm, en HSS-E obtenu par métallurgie des poudres, finition brillante, pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que dans les alliages d'aluminium corroyés ou moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP006GM12
GradeLumineux
Product Number6479126
Product FamilyEP006G

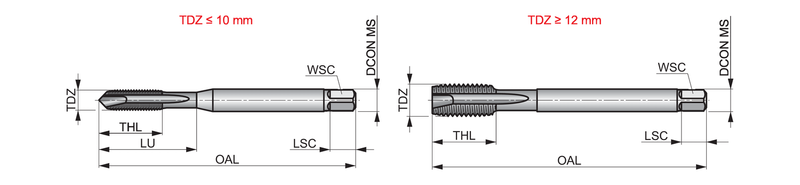

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number46479126
EAN7320760669426
File Type Download
EP006GM12 — Line Drawing PDF Download
