301JDD
301JDD

301JDD

UGC PRE6480815
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.39 CAD - $2.39 CAD
$2.39 CAD
$2.39 CAD - $2.39 CAD
$2.39 CAD

Vendu en lots de : 12

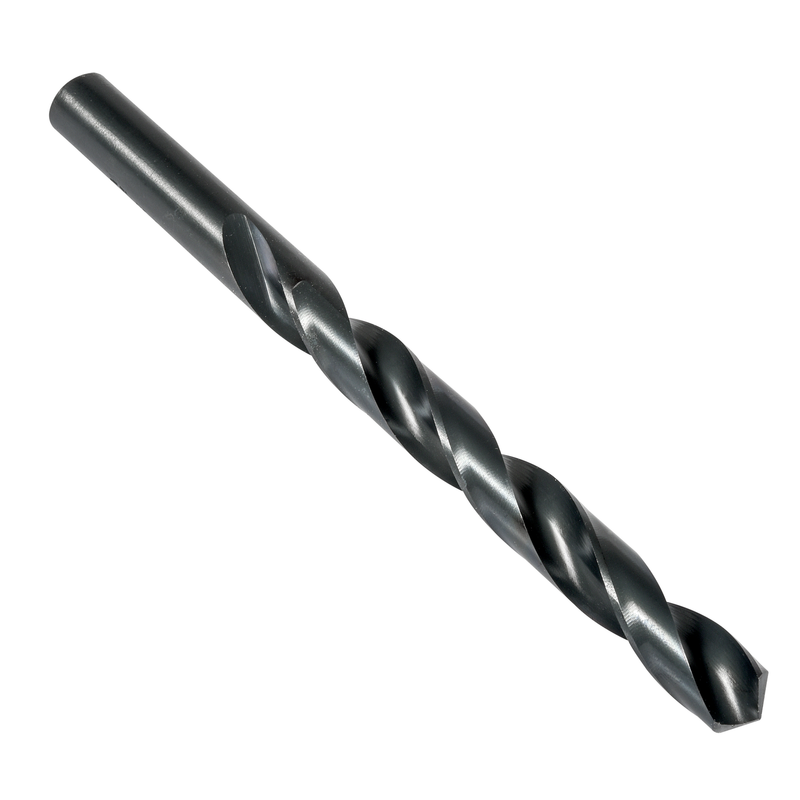

Foret de longueur jobber à queue cylindrique, diamètre 0,2460" (D) avec une longueur totale de 4" et une longueur de coupe de 2,3/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)301JDD
GradeTrempé à la vapeur
Product Number6480815
Product Family301JD
Dimensions
Cutting Diameter — in (DC)0.246"
Cutting Diameter — mm (DC)6.25 mm
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Flute Length — in (LCF)2.75"
Flute Length — mm (LCF)69.85 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.246"
Connection Dia. — mm (DCON)6.25 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480815
EAN8032744126984
File Type Download
301JDD — 3D Model STP Download
301JDD — Line Drawing PDF Download
