301JDF
301JDF

301JDF

UGC PRE6480818
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.54 CAD - $2.54 CAD
$2.54 CAD
$2.54 CAD - $2.54 CAD
$2.54 CAD

Vendu en lots de : 12

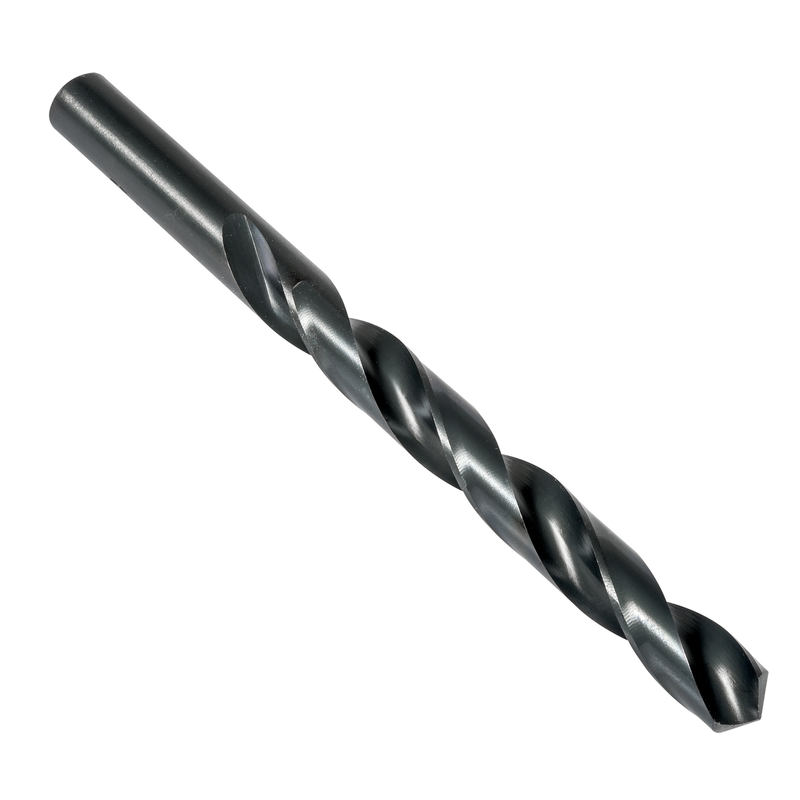

Foret hélicoïdal longueur jobber à queue cylindrique, diamètre 0,2570" (F) d'une longueur totale de 4.1/8" et longueur de coupe de 2.7/8" selon la norme ANSI avec angle de pointe de 118°, en HSS avec finition revenu vapeur pour perçage de 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)301JDF
GradeTrempé à la vapeur
Product Number6480818
Product Family301JD
Dimensions
Cutting Diameter — in (DC)0.257"
Cutting Diameter — mm (DC)6.53 mm
Overall Length — in (OAL)4.125"
Overall Length — mm (OAL)104.78 mm
Flute Length — in (LCF)2.875"
Flute Length — mm (LCF)73.03 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.257"
Connection Dia. — mm (DCON)6.53 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480818
EAN8032744127011
File Type Download
301JDF — 3D Model STP Download
301JDF — Line Drawing PDF Download
