301JDO
301JDO

301JDO

UGC PRE6480831
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.63 CAD - $3.63 CAD
$3.63 CAD
$3.63 CAD - $3.63 CAD
$3.63 CAD

Vendu en lots de : 6

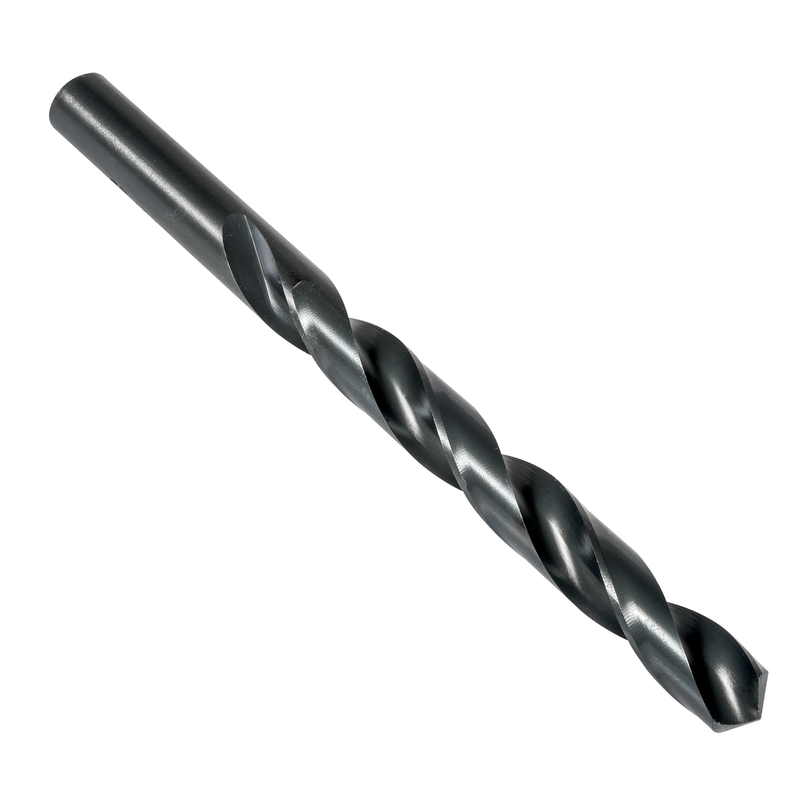

Foret de longueur jobber à queue cylindrique, diamètre 0,3160" (O) avec une longueur totale de 4,1/2" et une longueur de coupe de 3,3/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)301JDO
GradeTrempé à la vapeur
Product Number6480831
Product Family301JD
Dimensions
Cutting Diameter — in (DC)0.316"
Cutting Diameter — mm (DC)8.03 mm
Overall Length — in (OAL)4.5"
Overall Length — mm (OAL)114.3 mm
Flute Length — in (LCF)3.1875"
Flute Length — mm (LCF)80.96 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.316"
Connection Dia. — mm (DCON)8.03 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480831
EAN8032744127141
File Type Download
301JDO — 3D Model STP Download
301JDO — Line Drawing PDF Download
