UGC PRE6480837
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.63 CAD - $4.63 CAD
$4.63 CAD
$4.63 CAD - $4.63 CAD
$4.63 CAD

Vendu en lots de : 6

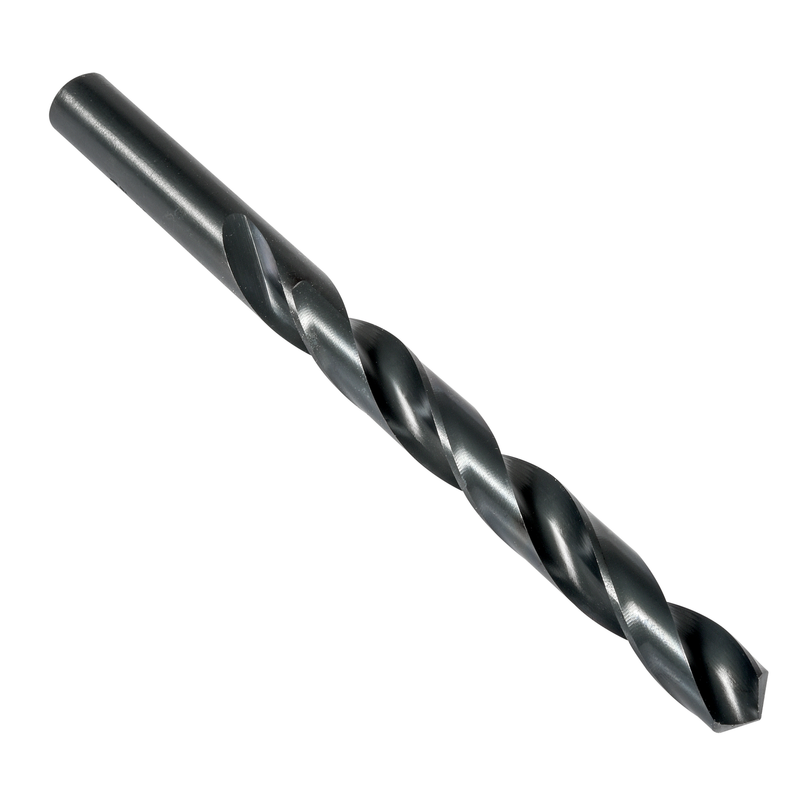

Foret court avec queue cylindrique, diamètre 0,3480" (S) avec une longueur totale de 4,7/8" et une longueur de coupe de 3,1/2" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempe vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)301JDS
GradeTrempé vapeur
Product Number6480837
Product Family301JD
Dimensions
Cutting Diameter — in (DC)0.348"
Cutting Diameter — mm (DC)8.84 mm
Overall Length — in (OAL)4.875"
Overall Length — mm (OAL)123.83 mm
Flute Length — in (LCF)3.5"
Flute Length — mm (LCF)88.9 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.348"
Connection Dia. — mm (DCON)8.84 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480837
EAN8032744127202
File Type Download
301JDS — 3D Model STP Download
301JDS — Line Drawing PDF Download
