301JD1/2
301JD1/2

301JD1/2

UGC PRE6480854
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.64 CAD - $7.64 CAD
$7.64 CAD
$7.64 CAD - $7.64 CAD
$7.64 CAD

Vendu en lots de : 6

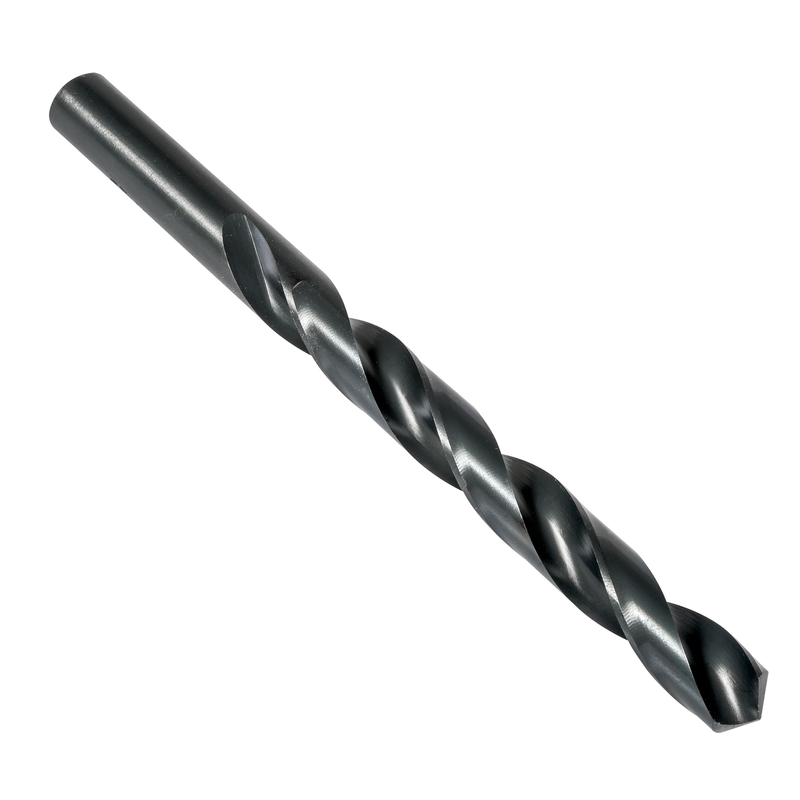

Foret de longueur jobber avec queue droite, diamètre 0,5000" (1/2) avec une longueur totale de 6" et une longueur de goujure de 4,1/2" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)301JD1/2
GradeTrempé à la vapeur
Product Number6480854
Product Family301JD
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)4.5"
Flute Length — mm (LCF)114.3 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480854
EAN8032744127370
File Type Download
301JD1/2 — 3D Model STP Download
301JD1/2 — Line Drawing PDF Download
