311SM5/64
311SM5/64

311SM5/64

UGC PRE6480869
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.17 CAD - $1.17 CAD
$1.17 CAD
$1.17 CAD - $1.17 CAD
$1.17 CAD

Vendu en lots de : 12

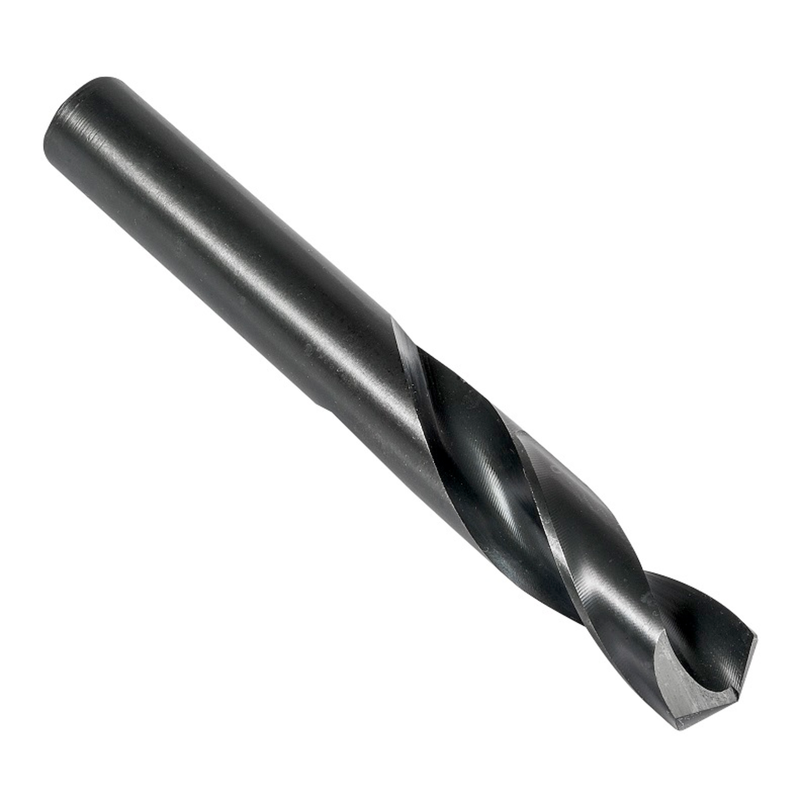

Foret court à queue cylindrique, diamètre 0,0781" (5/64) avec une longueur totale de 1.11/16" et une longueur de coupe de 11/16" selon la norme ANSI avec une pointe à 135° à affûtage en croix, HSS avec finition trempée à la vapeur pour un perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)311SM5/64
GradeTrempé à la vapeur
Product Number6480869
Product Family311SM
Dimensions
Cutting Diameter — in (DC)0.0781"
Cutting Diameter — mm (DC)1.98 mm
Cutting Diameter — Fractional5/64
Overall Length — in (OAL)1.6875"
Overall Length — mm (OAL)42.86 mm
Flute Length — in (LCF)0.6875"
Flute Length — mm (LCF)17.46 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0781"
Connection Dia. — mm (DCON)1.98 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480869
EAN8032744127523
File Type Download
311SM5/64 — 3D Model STP Download
311SM5/64 — Line Drawing PDF Download
