311SMN22
311SMN22

311SMN22

UGC PRE6480900
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.36 CAD - $1.36 CAD
$1.36 CAD
$1.36 CAD - $1.36 CAD
$1.36 CAD

Vendu en lots de : 12

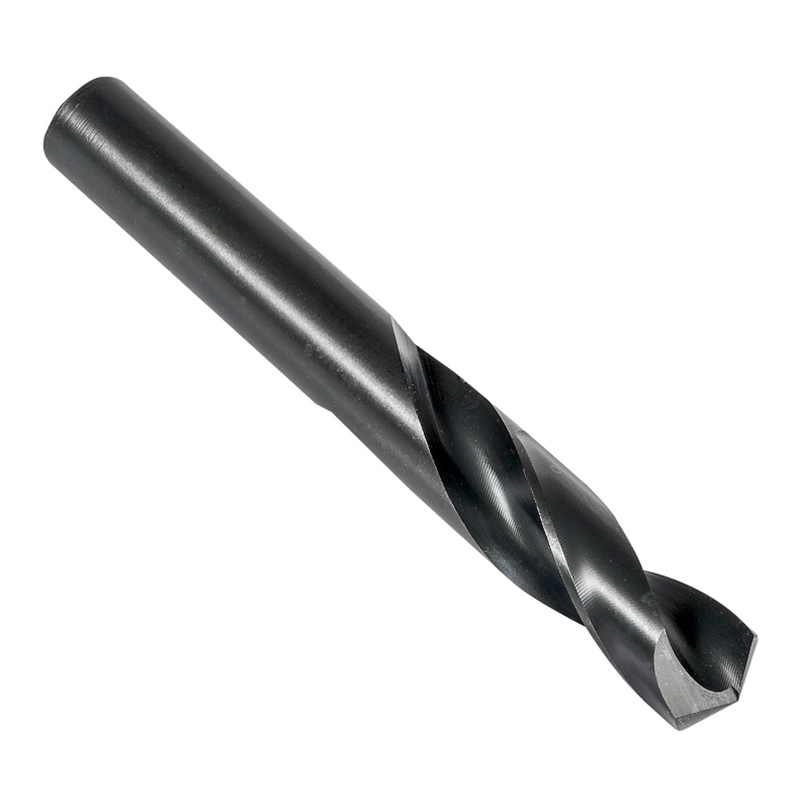

Foret court à queue cylindrique, diamètre 0,1570" (N22) avec une longueur totale de 2.1/8" et une longueur de coupe de 1.1/16" selon la norme ANSI avec une pointe de centrage 135°, en HSS avec finition trempe vapeur pour perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)311SMN22
GradeTrempé à la vapeur
Product Number6480900
Product Family311SM
Dimensions
Cutting Diameter — in (DC)0.157"
Cutting Diameter — mm (DC)3.99 mm
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Flute Length — in (LCF)1.0625"
Flute Length — mm (LCF)26.99 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.157"
Connection Dia. — mm (DCON)3.99 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480900
EAN8032744127837
File Type Download
311SMN22 — 3D Model STP Download
311SMN22 — Line Drawing PDF Download
