311SMN19
311SMN19

311SMN19

UGC PRE6480903
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.40 CAD - $1.40 CAD
$1.40 CAD
$1.40 CAD - $1.40 CAD
$1.40 CAD

Vendu en lots de : 12

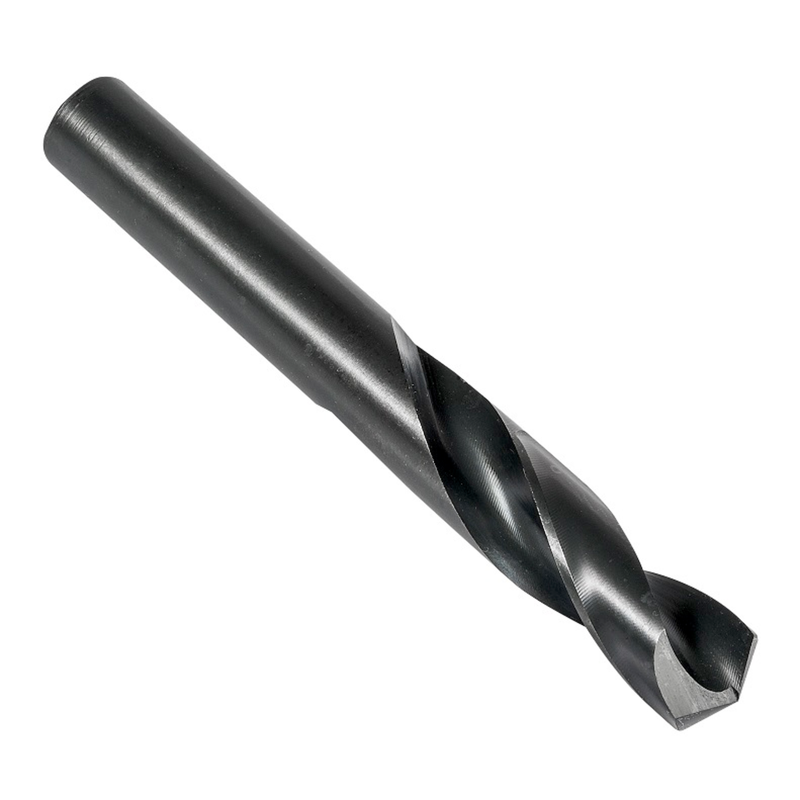

Foret court à queue cylindrique, diamètre 0,1660" (N19) avec une longueur totale de 2.1/8" et une longueur de coupe de 1.1/16" selon la norme ANSI avec une pointe à 135° en croix, HSS avec finition trempée à la vapeur pour un perçage à 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)311SMN19
GradeTrempé à la vapeur
Product Number6480903
Product Family311SM
Dimensions
Cutting Diameter — in (DC)0.166"
Cutting Diameter — mm (DC)4.22 mm
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Flute Length — in (LCF)1.0625"
Flute Length — mm (LCF)26.99 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.166"
Connection Dia. — mm (DCON)4.22 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480903
EAN8032744127868
File Type Download
311SMN19 — 3D Model STP Download
311SMN19 — Line Drawing PDF Download
