311SM3/16
311SM3/16

311SM3/16

UGC PRE6480911
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.46 CAD - $1.46 CAD
$1.46 CAD
$1.46 CAD - $1.46 CAD
$1.46 CAD

Vendu en lots de : 12

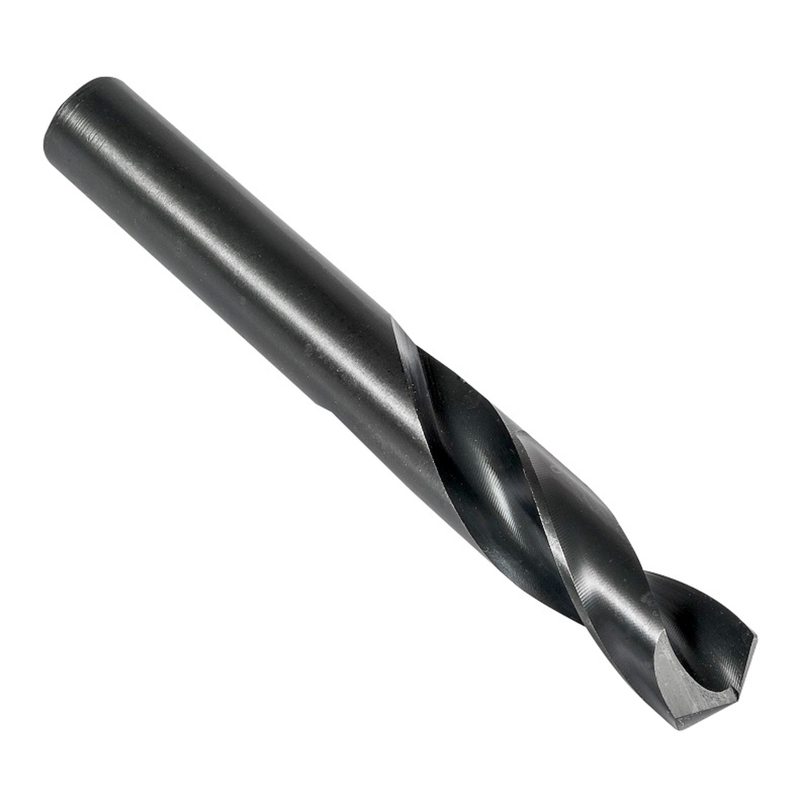

Foret court à queue cylindrique, diamètre 0,1875" (3/16) avec une longueur totale de 2.3/16" et une longueur de goujure de 1.1/8" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition trempée à la vapeur pour le perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)311SM3/16
GradeTrempé à la vapeur
Product Number6480911
Product Family311SM
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.1875"
Overall Length — mm (OAL)55.56 mm
Flute Length — in (LCF)1.125"
Flute Length — mm (LCF)28.58 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480911
EAN8032744127943
File Type Download
311SM3/16 — 3D Model STP Download
311SM3/16 — Line Drawing PDF Download
