311SM1/2
311SM1/2

311SM1/2

UGC PRE6480969
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.56 CAD - $7.56 CAD
$7.56 CAD
$7.56 CAD - $7.56 CAD
$7.56 CAD

Vendu en lots de : 6

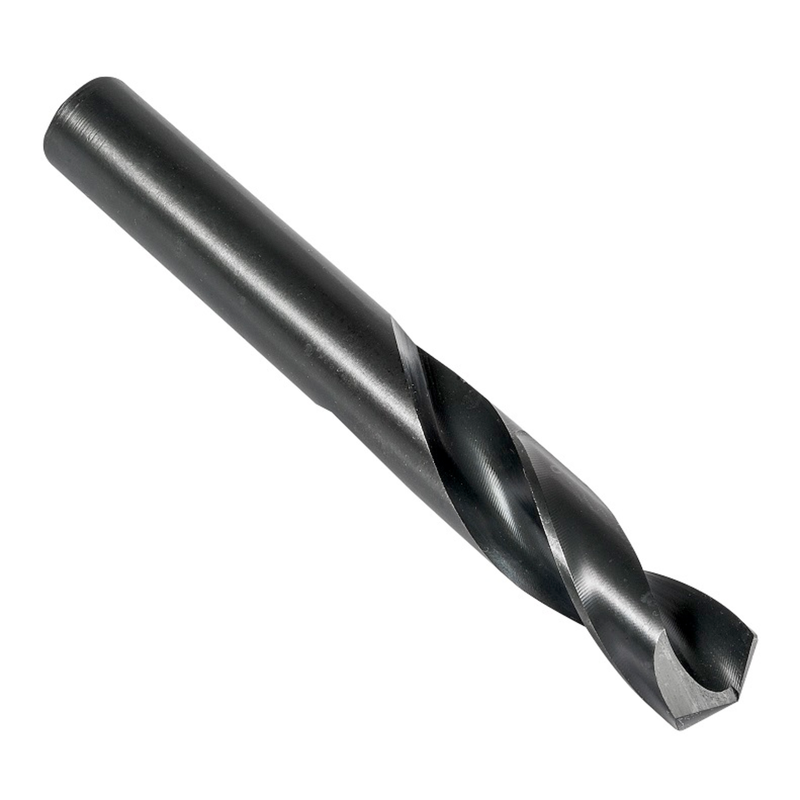

Foret court à queue cylindrique, diamètre 0,5000" (1/2) avec une longueur totale de 3,3/4" et une longueur de coupe de 2,1/4" selon la norme ANSI avec une pointe à 135° à auto-centrage, HSS avec finition trempée à la vapeur pour un perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)311SM1/2
GradeTrempé à la vapeur
Product Number6480969
Product Family311SM
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.25"
Flute Length — mm (LCF)57.15 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480969
EAN8032744128520
File Type Download
311SM1/2 — 3D Model STP Download
311SM1/2 — Line Drawing PDF Download
