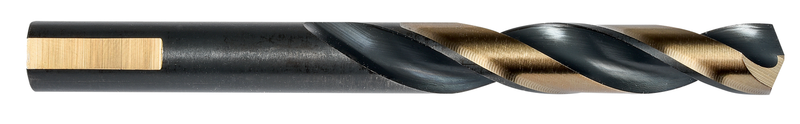

Foret mécanique à queue tri-plate, diamètre 0,2500" (1/4) avec une longueur totale de 3,1/2" et une longueur de goujure de 2" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition trempée à la vapeur + bronze pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)321MD1/4
GradeST/Bronze
Product Number6480982
Product Family321MD

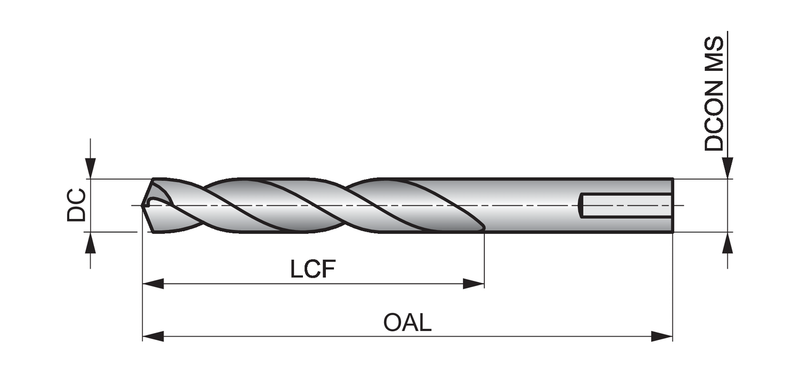

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique à 3 méplats
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number46480982
EAN8032744128650
File Type Download
321MD1/4 — 3D Model STP Download
321MD1/4 — Line Drawing PDF Download
